MÄDLERMÄDLER· Trapezoidal Thread Spindles, Nuts and Ball Screw Drives

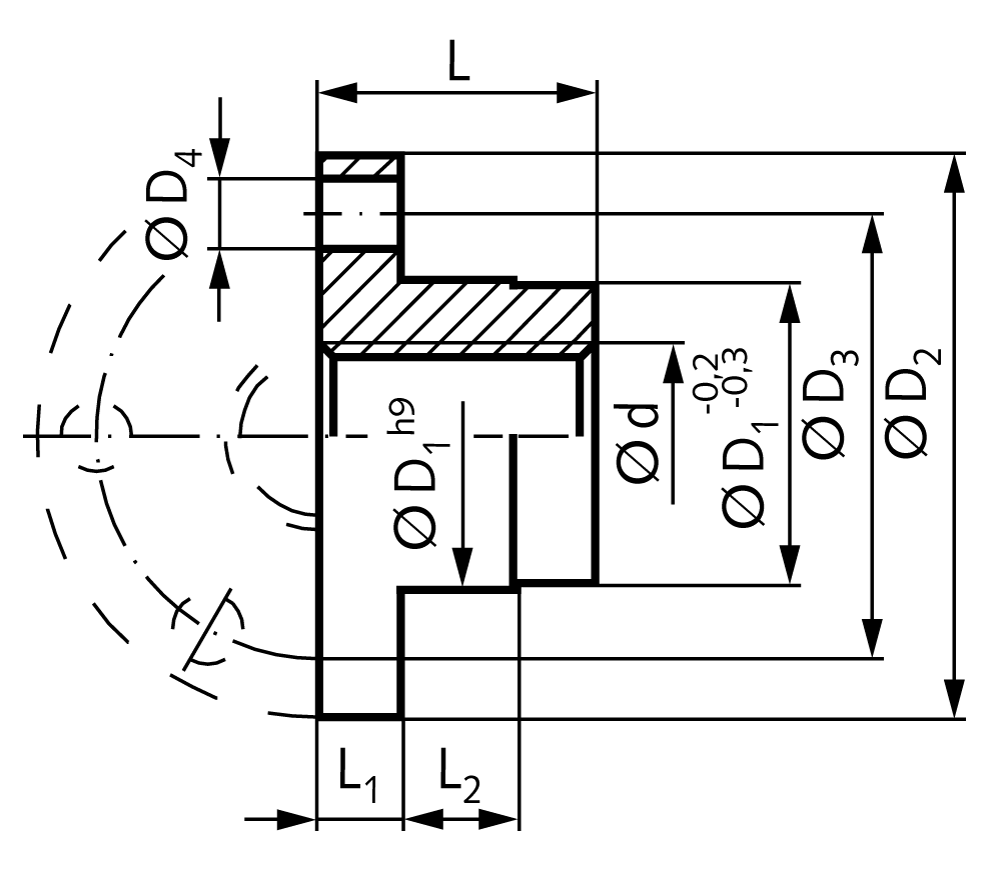

Ready-to install flange nut EFM long Tr.50×8 left hand material red brass
Manufacturer part no. 64477650
$274.02≈ 237.97 €
In stock — 1 unitslead time 14 d
Estimated landed cost
| Item | €237.97 |
|---|---|
| Shipping | €15.00 |
| VAT (20%) | €50.59 |
| Total delivered | €303.56 |
Estimate for a single item delivered to mainland France, shipped from outside the EU: customs duty and clearance fees may apply and are charged by the carrier.
Datasheets & documents
Specifications (automatically extracted)
Mechanical
| Weight | 2.8 kg |
Other characteristics
| Height | 97 mm |
| Outer diameter | 110 mm |
| Material | Red brass (RG7) |
| Surface | Blank |
| Trapezoidal thread diameter x pitch | Tr. 50 x 8 single-thread LH mm |
Description
Material: Red brass Rg7 (CuSn7Zn4Pb7-C). Ready-to-Install Flange Nuts EFM with Metric ISO-Trapezoidal Thread DIN 103, single thread, left hand Tolerance zone 7H. * Lead angle is not in accordance with DIN 103.
