MÄDLERMÄDLER· Splined Shafts and Toothed Shafts and Hubs

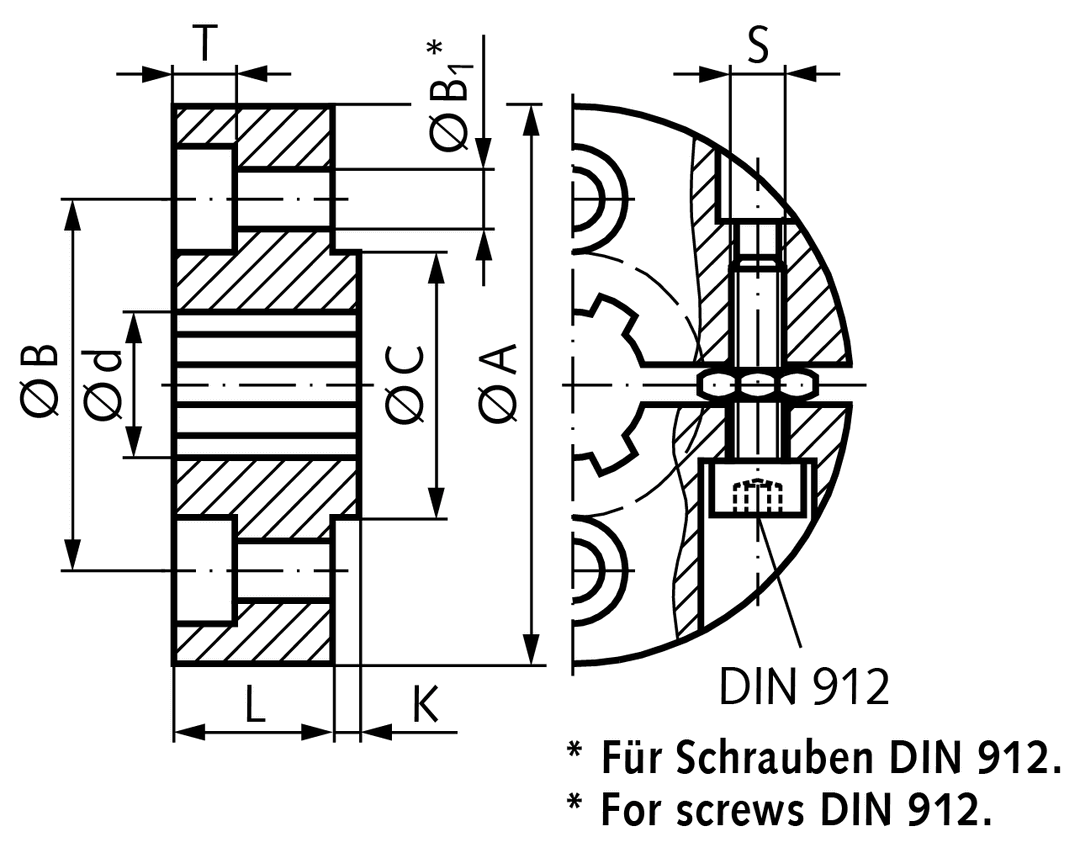

Clamp collar for splined hub DIN ISO 14 KN 42×48 diameter 95mm stainless steel 1.4305
Manufacturer part no. 64899610
$306.21≈ 265.92 €
In stock — 2 unitslead time 14 d
Estimated landed cost
| Item | €265.92 |
|---|---|
| Shipping | €15.00 |
| VAT (20%) | €56.18 |
| Total delivered | €337.10 |
Estimate for a single item delivered to mainland France, shipped from outside the EU: customs duty and clearance fees may apply and are charged by the carrier.
Datasheets & documents
Specifications (automatically extracted)
Mechanical
| Weight | 820 g |
Other characteristics
| Inner diameter | 42 mm |
| Length | 22 mm |
| Outer diameter | 95 mm |
| Material | Stainless steel (303) |
| Profile type | KN 42 x 48 mm |
| Surface | Blank |
Description
Material: Stainless steel, Material-No. 1.4305 (AISI 303). Ready-to-install, with 4 mounting holes, match with clamp collars for splie hubs. C/d = 0,05
