MÄDLERMÄDLER· Accuride® – Telescopic Slides and Linear Guides

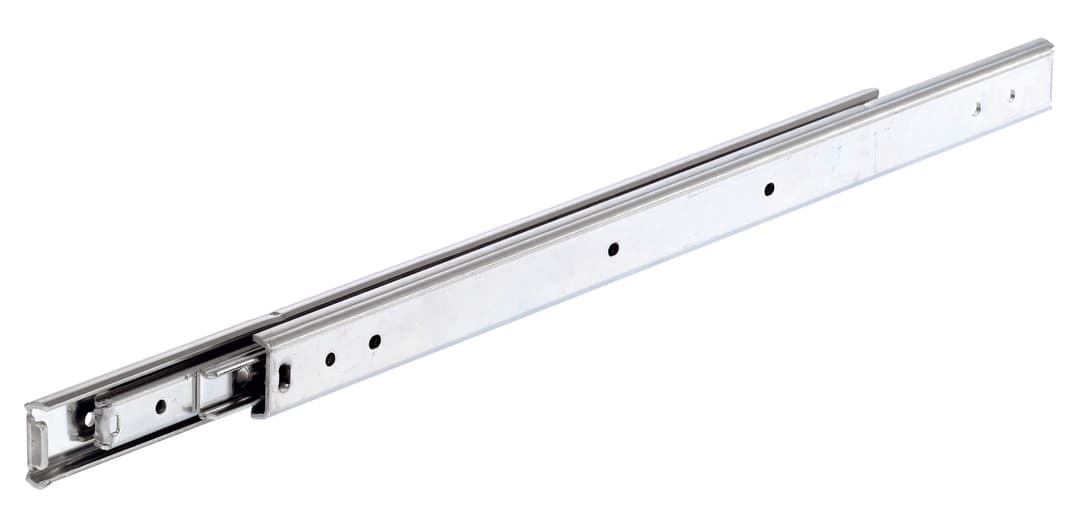

Slide set DZ 2431 slide length 300mm zinc plated
Manufacturer part no. 64900130
$59.53≈ 51.70 €
In stock — 1 unitslead time 14 d
Estimated landed cost
| Item | €51.70 |
|---|---|
| Shipping | €15.00 |
| VAT (20%) | €13.34 |
| Total delivered | €80.04 |
Estimate for a single item delivered to mainland France, shipped from outside the EU: customs duty and clearance fees may apply and are charged by the carrier.
Datasheets & documents
Specifications (automatically extracted)
Other characteristics
| Load rating pair | 20 kg |
| Rail length | 300 mm |
| Slide width | 16 mm |
| Travel 3 2 | 329 mm |
| Weight pair | 0.67 kg |
| Extended hold | No |
| Extension type | Full extraction |
| Fast disconnect | No |
| Locking | No |
| Material | Steel |
| Optional mounting brackets | No |
| Retracted hold | No |
| Self closure | No |
| Surface | Zinc-plated (bright) |
| Typ | DZ 2431 |
Description
Material: Slide elements: Cold rolled steel, zinc-plated. Ball retainers: Cold rolled steel, zinc-plated. Balls: Hardened steel. Telescopic ball bearing precision slides for applications in the industrial and electronics sector. Sold by pair (1 x product no. = 1 pair of slides). Low slide profile (only 20mm). Compact profile. Service life 80,000 cycles. Temperature range: -20°C to +70°C. Note Recommended fastening: M3 screw.
