MÄDLERMÄDLER· Accuride® – Telescopic Slides and Linear Guides

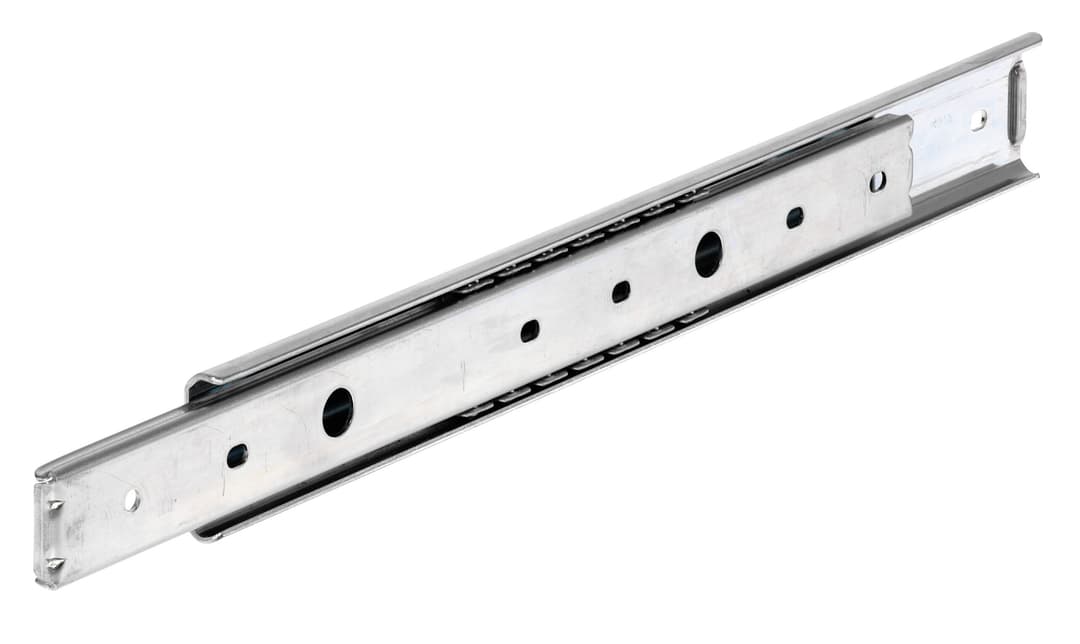

Slide set DZ 2026 slide length 600mm zinc plated
Manufacturer part no. 64900460
$47.23≈ 41.02 €
In stock — 2 unitslead time 14 d
Estimated landed cost
| Item | €41.02 |
|---|---|
| Shipping | €15.00 |
| VAT (20%) | €11.20 |
| Total delivered | €67.22 |
Estimate for a single item delivered to mainland France, shipped from outside the EU: customs duty and clearance fees may apply and are charged by the carrier.
Datasheets & documents
Specifications (automatically extracted)
Other characteristics
| Load rating pair | 35 kg |
| Rail length | 600 mm |
| Slide width | 9.5 mm |
| Travel 3 2 | 433 mm |
| Weight pair | 1.13 kg |
| Extended hold | Yes |
| Extension type | Partial extension in both directions |
| Fast disconnect | No |
| Locking | No |
| Material | Steel |
| Optional mounting brackets | No |
| Retracted hold | No |
| Self closure | No |
| Surface | Zinc-plated (bright) |
| Typ | DZ 2026 |
Description
Material: Slide elements: Cold rolled steel, zinc-plated. Ball retainers: Cold rolled steel, zinc-plated. Balls: Hardened steel. Sold by pair (1 x product no. = 1 pair of slides). Telescopic ball bearing precision slides for applications in the industrial and electronics sector. Hold-out on both sides. Pulls out to front and back. For applications requiring access from both sides of a sliding unit. Service life 10,000 cycles. Temperature range: -20°C to +110°C. Note Recommended fastening: M4 screw. Use all mounting positions to achieve the max. load ratings.
