MÄDLERMÄDLER· Accuride® – Telescopic Slides and Linear Guides

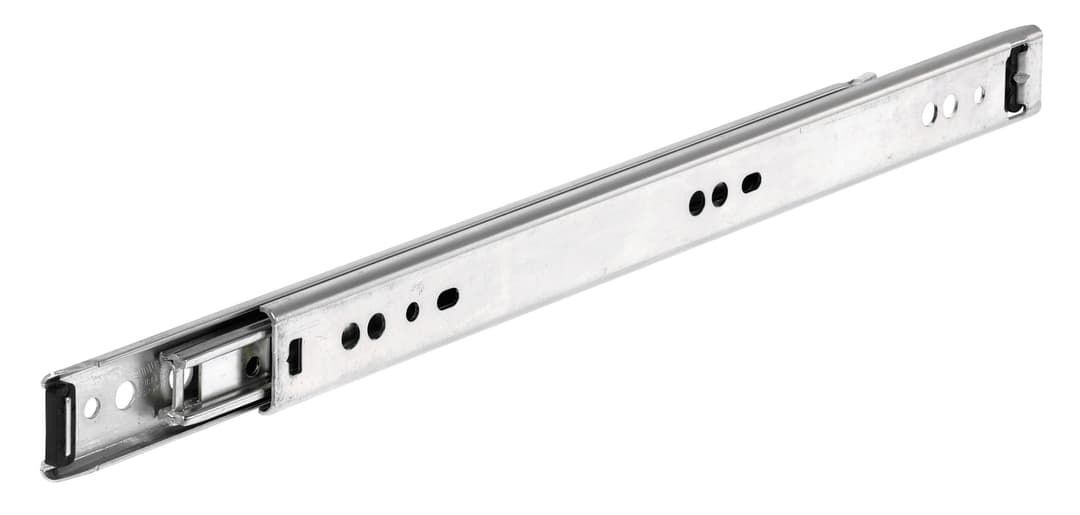

Slide set DZ 2601 slide length 300mm zinc plated
Manufacturer part no. 64900630
$71.50≈ 62.09 €
In stock — 2 unitslead time 14 d
Estimated landed cost
| Item | €62.09 |
|---|---|
| Shipping | €15.00 |
| VAT (20%) | €15.42 |
| Total delivered | €92.51 |
Estimate for a single item delivered to mainland France, shipped from outside the EU: customs duty and clearance fees may apply and are charged by the carrier.
Datasheets & documents
Specifications (automatically extracted)
Other characteristics
| Load rating pair | 32 kg |
| Rail length | 300 mm |
| Slide width | 12.7 mm |
| Travel 3 2 | 308 mm |
| Weight pair | 0.67 kg |
| Extended hold | No |
| Extension type | Full extraction |
| Fast disconnect | No |
| Locking | No |
| Material | Steel |
| Optional mounting brackets | No |
| Retracted hold | Yes |
| Self closure | No |
| Surface | Zinc-plated (bright) |
| Typ | DZ 2601 |
Description

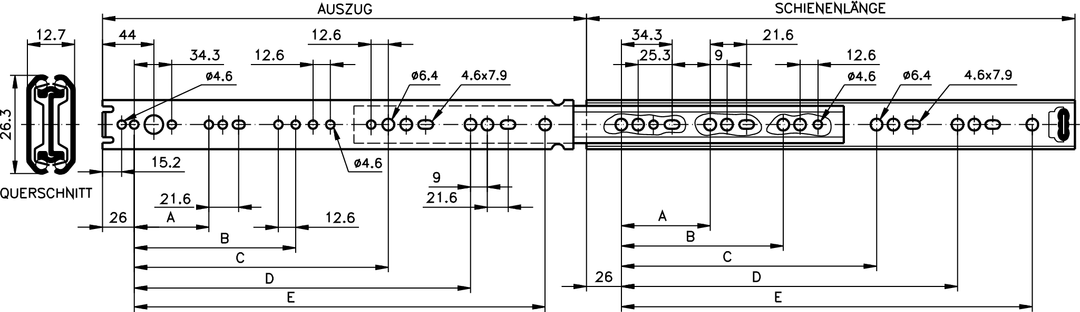

Material: Slide elements: Cold rolled steel, zinc-plated. Ball retainers: Cold rolled steel, zinc-plated. Balls: Hardened steel. Sold by pair (1 x product no. = 1 pair of slides). Telescopic ball bearing precision slides for applications in the industrial and electronics sector. Very compact profile (26.3 x 12.7 mm). Universal hole pattern. Noise dampening of all end stops. Hold-in in closed position. Can be mounted on both sides. Service life 10,000 cycles. Temperature range: -20°C to +70°C. Note Fixing recommendations: M4 screw/6mm Euro screw/4 mm wood screw. Max. head. height 2 mm/Ø 7.8 mm. Horizontal mounting is not recommended. Use all mounting positions to achieve the max. load ratin
