MÄDLERMÄDLER· Accuride® – Telescopic Slides and Linear Guides

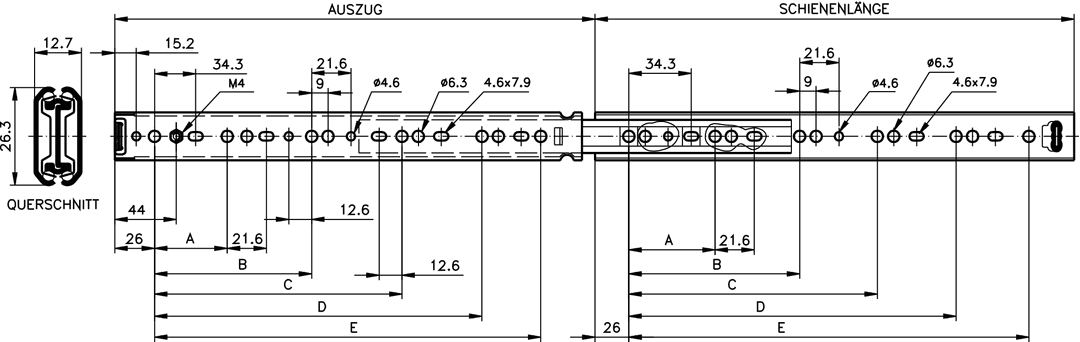

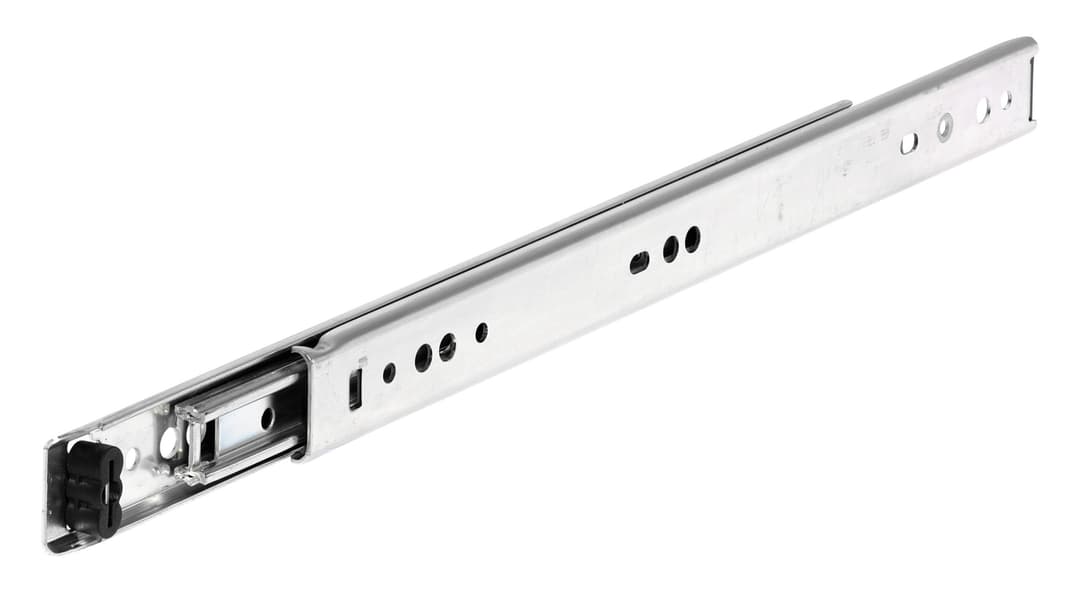

Slide set DZ 2642 slide length 550mm zinc plated
Manufacturer part no. 64900855
$123.05≈ 106.86 €
In stock — 1 unitslead time 14 d
Estimated landed cost
| Item | €106.86 |
|---|---|
| Shipping | €15.00 |
| VAT (20%) | €24.37 |
| Total delivered | €146.23 |
Estimate for a single item delivered to mainland France, shipped from outside the EU: customs duty and clearance fees may apply and are charged by the carrier.
Datasheets & documents
Specifications (automatically extracted)
Other characteristics
| Load rating pair | 30 kg |
| Rail length | 550 mm |
| Slide width | 12.7 mm |
| Travel 3 2 | 554 mm |
| Weight pair | 1.23 kg |
| Extended hold | No |
| Extension type | Full extraction |
| Fast disconnect | No |
| Locking | No |
| Material | Steel |
| Optional mounting brackets | No |
| Retracted hold | Yes |
| Self closure | No |
| Surface | Zinc-plated (bright) |
| Typ | DZ 2642 |
Description
Material: Slide elements: Cold rolled steel, zinc-plated. Ball retainers: Cold rolled steel, zinc-plated. Balls: Hardened steel. Sold by pair (1 x product no. = 1 pair of slides). Telescopic ball bearing precision slides for applications in the industrial and electronics sector. Low slide height. Slot or side mounting possible. Hold-in in closed position. Service life 80,000 cycles. Temperature range: -20°C to +70°C. Note Recommended fastening: M4 screw/6mm Euro screw/4mm wood screw. Max. head. height 2mm/ Ø7.8mm. Use all mounting positions to achieve the max. load ratings.
