MÄDLERMÄDLER· Accuride® – Telescopic Slides and Linear Guides

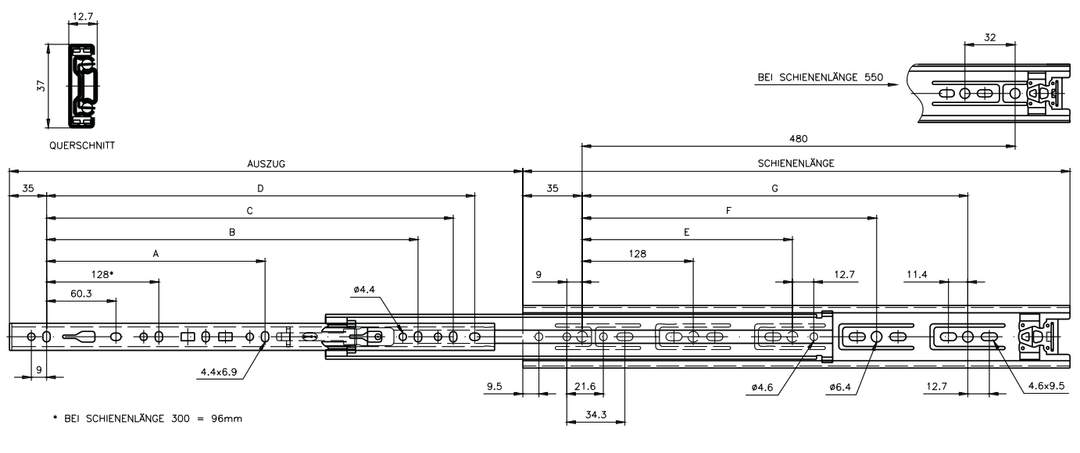

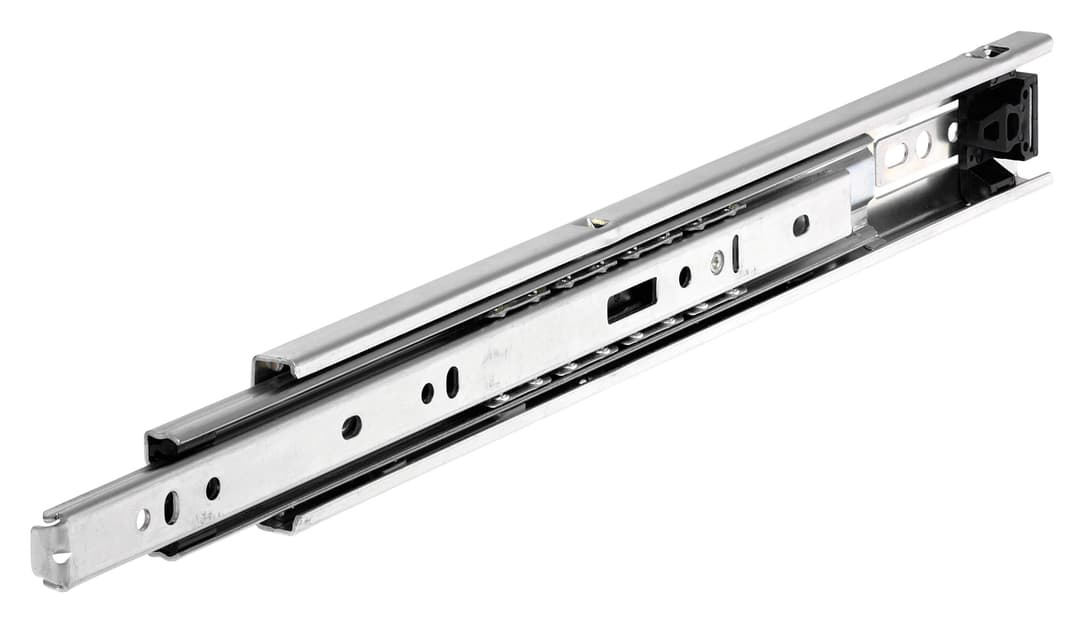

Slide set DZ 3732 slide length 500mm zinc plated
Manufacturer part no. 64900950
$50.24≈ 43.63 €
In stock — 1 unitslead time 14 d
Estimated landed cost
| Item | €43.63 |
|---|---|
| Shipping | €15.00 |
| VAT (20%) | €11.73 |
| Total delivered | €70.36 |
Estimate for a single item delivered to mainland France, shipped from outside the EU: customs duty and clearance fees may apply and are charged by the carrier.
Datasheets & documents
Specifications (automatically extracted)
Other characteristics
| Load rating pair | 40 kg |
| Rail length | 500 mm |
| Slide width | 12.7 mm |
| Travel 3 2 | 508 mm |
| Weight pair | 1.25 kg |
| Extended hold | No |
| Extension type | Full extraction |
| Fast disconnect | Yes |
| Locking | No |
| Material | Steel |
| Optional mounting brackets | Yes |
| Retracted hold | Yes |
| Self closure | No |
| Surface | Zinc-plated (bright) |
| Typ | DZ 3732 |
Description
Material: Slide elements: Cold rolled steel, zinc-plated. Ball retainers: Plastic / zinc-plated steel. Balls: Hardened steel. Sold by pair (1 x product no. = 1 pair of slides). Telescopic ball bearing precision slides for applications in the industrial and electronics sector. Fast disconnection. Hold-in in the closed position. Optional clip-on brackets available. Very high service life, up to 80,000 cycles. Temperature range: -20°C to +70°C. Note Recommended fastening: M4 screw (included in delivery). Use all mounting positions to achieve the max. load ratings. Horizontal mounting is not recommended.
