MÄDLERMÄDLER· Accuride® – Telescopic Slides and Linear Guides

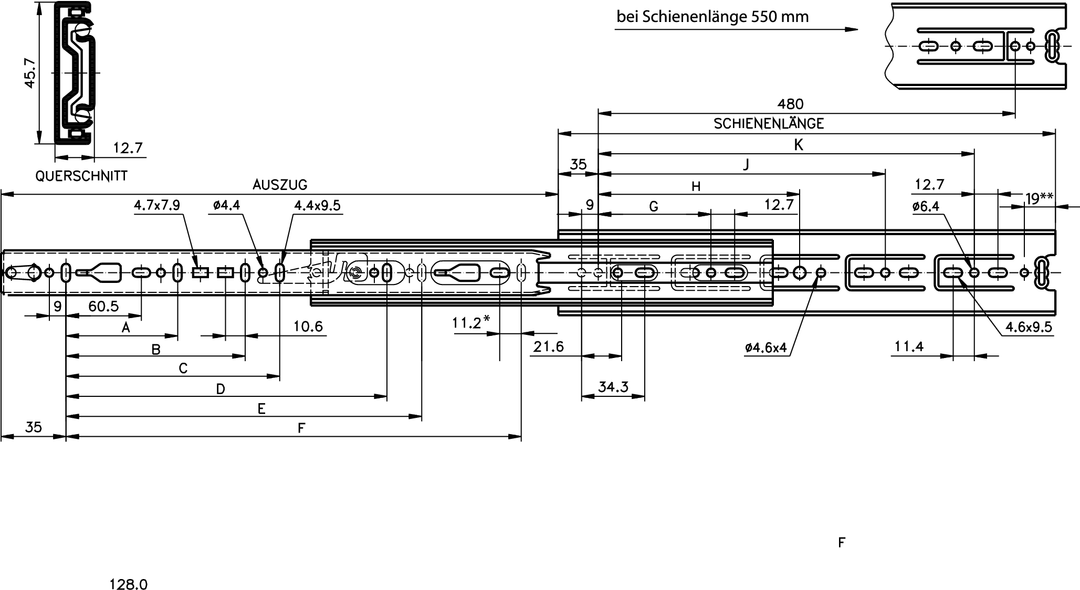

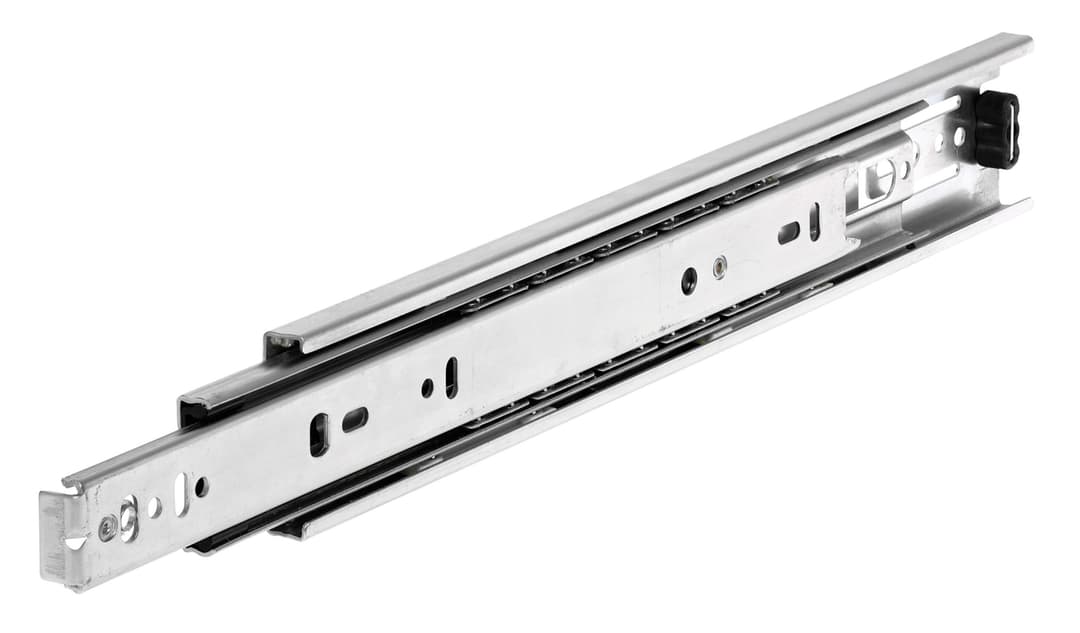

Slide set DZ 3832 slide length 350mm zinc plated
Manufacturer part no. 64901235
$51.40≈ 44.64 €
In stock — 2 unitslead time 14 d
Estimated landed cost
| Item | €44.64 |
|---|---|
| Shipping | €15.00 |
| VAT (20%) | €11.93 |
| Total delivered | €71.57 |
Estimate for a single item delivered to mainland France, shipped from outside the EU: customs duty and clearance fees may apply and are charged by the carrier.
Datasheets & documents
Specifications (automatically extracted)
Other characteristics
| Load rating pair | 49 kg |
| Rail length | 350 mm |
| Slide width | 12.7 mm |
| Travel 3 2 | 356 mm |
| Weight pair | 1.06 kg |
| Extended hold | No |
| Extension type | Full extraction |
| Fast disconnect | Yes |
| Locking | No |
| Material | Steel |
| Optional mounting brackets | Yes |
| Retracted hold | Yes |
| Self closure | No |
| Surface | Zinc-plated (bright) |
| Typ | DZ 3832 |
Description
Material: Slide elements: Cold rolled steel, zinc-plated or coated. Ball retainers: Plastic / zinc-plated steel. Balls: Hardened steel. Sold by pair (1 x product no. = 1 pair of slides). Telescopic ball bearing precision slides for applications in the industrial and electronics sector. Fast disconnection. Hold-in in the closed position. Can be mounted on both sides. Cam drawer adjust (3.1 mm). Version zinc-plated, either bright or black, or painted white. Optional clip-on brackets available. Service life 80,000 cycles. Temperature range: -20°C to +70°C. Note Recommended fastening: M4 screw. Use all mounting positions to achieve the max. load ratings. Horizontal mounting is not recommended.
