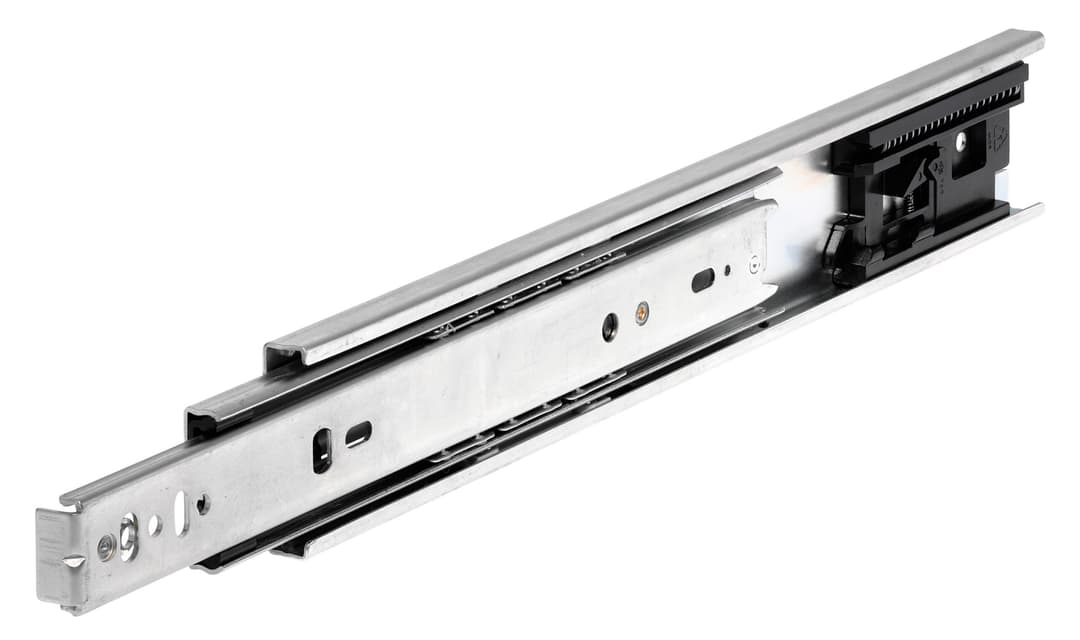

Name: Slide set DZ 3832 TR slide length 500mm zinc plated
Brand: MÄDLER
Price: 63.10 USD
Availability: InStock

Specifications (automatically extracted)

Other characteristics

Load rating pair	45 kg
Rail length	500 mm
Slide width	12.7 mm
Travel 3 2	508 mm
Weight pair	1.47 kg
Extended hold	No
Extension type	Full extraction
Fast disconnect	Yes
Locking	No
Material	Steel
Optional mounting brackets	Yes
Retracted hold	Yes
Self closure	Yes
Surface	Zinc-plated (bright)
Typ	DZ 3832 SC

Description

Material: Slide elements: Cold rolled steel, either zinc plated or coated. Ball retainers: Plastic / zinc plated steel. Balls: Hardened steel. Sold by pair (1 x product no. = 1 pair of slides). Telescopic ball bearing precision slides for applications in the industrial and electronics sector. Operation by pressing on the drawer (Grip or knob not required). Fast disconnect. Hold-in in the closed position. Setting cams for drawer (3.1 mm). Very high service life up to 80,000 cycles. Temperature range: -20°C to +70°C. Type TR: Required compressive force approx. 50 N. Model either bright zinc-plated, black passivated or white coated. Alternative: Type 3832 HDTR, required force approx. 80 N. Note Recommended fastening: M4 screw. use all mounting positions. The drawer may not be wider than the slide lenght. Horizontal mounting is not possible. Ordering details: e.g.: Product no. 649 013 30, Slides 3832 TR
