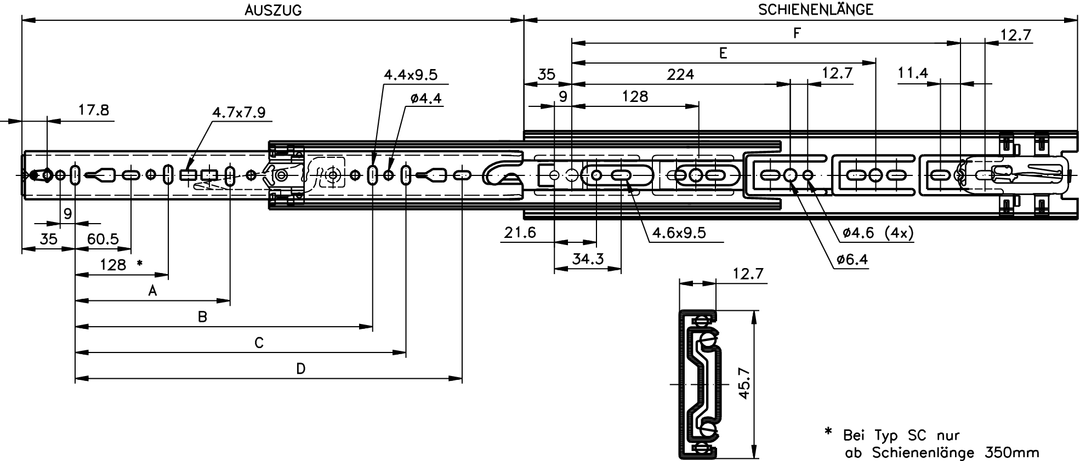

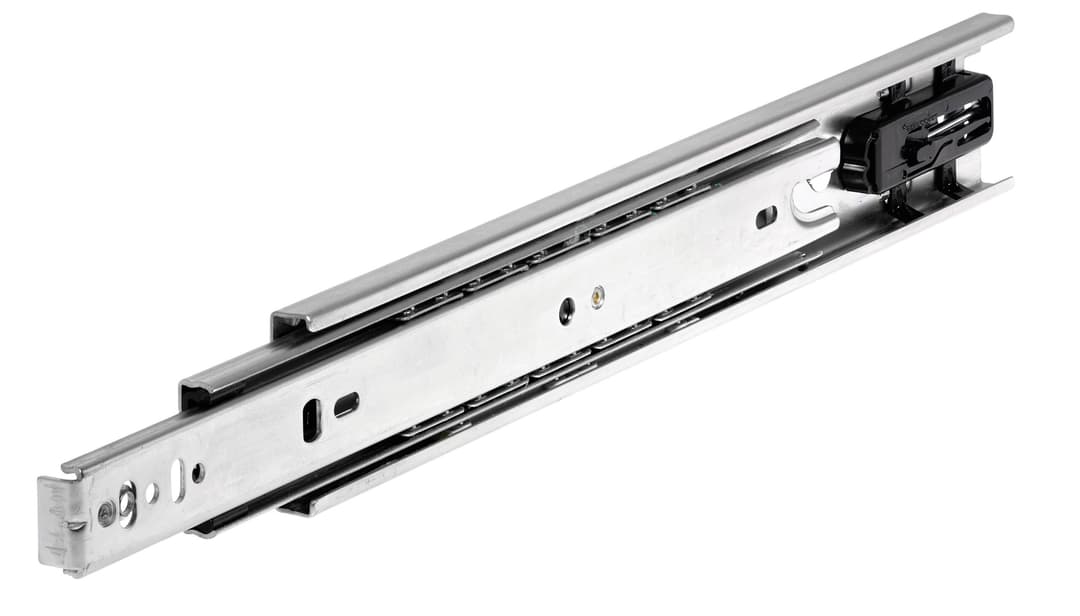

Name: Slide set DZ 3832 SC slide length 400mm zinc plated
Brand: MÄDLER
Price: 58.84 USD
Availability: InStock

Specifications (automatically extracted)

Other characteristics

Rail length	400 mm
Slide width	12.7 mm
Travel 3 2	406 mm
Weight pair	1.2 kg
Extended hold	No
Extension type	Full extraction
Fast disconnect	Yes
Load rating pair	50 / 44 kg
Locking	No
Material	Steel
Optional mounting brackets	Yes
Retracted hold	Yes
Self closure	Yes
Surface	Zinc-plated (bright)
Typ	DZ 3832 SC

Description

Material: Slide elements: Cold rolled steel, zinc-plated or coated. Ball retainers: Plastic / zinc-plated steel. Balls: Hardened steel. Telescopic ball bearing precision slides for applications in the industrial and electronics sector. Sold by pair (1 x product no. = 1 pair of slides). Fast disconnection. Self-close. Hold-in in closed position. Cam drawer adjust (3.1 mm). Version zinc-plated, either bright or black, or painted white. Optional clip-on brackets available. Service life 10,000/ 80,000 cycles. Temperature range: -20°C to +70°C. Closing / opening force 14 – 27 N per slide. Alternative: Type HDSC with higher force 27 – 41 N. Note: Recommended fastening: M4 screw. Use all mounting positions to achieve the max. load ratings. Horizontal mounting is not recommended.
