MÄDLERMÄDLER· Accuride® – Telescopic Slides and Linear Guides

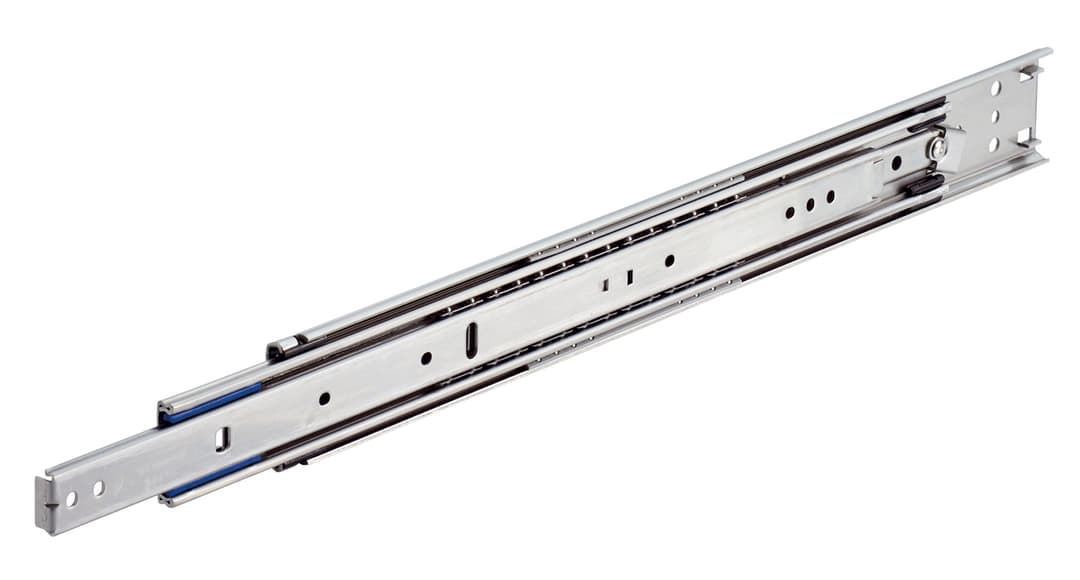

Slide set DS 3557 slide length 559mm stainless steel 1.4301
Manufacturer part no. 64903355
$269.19≈ 233.77 €
In stock — 1 unitslead time 14 d
Estimated landed cost
| Item | €233.77 |
|---|---|
| Shipping | €15.00 |
| VAT (20%) | €49.75 |
| Total delivered | €298.52 |
Estimate for a single item delivered to mainland France, shipped from outside the EU: customs duty and clearance fees may apply and are charged by the carrier.
Datasheets & documents
Specifications (automatically extracted)
Other characteristics
| Load rating pair | 90 kg |
| Rail length | 559 mm |
| Slide width | 12.7 mm |
| Travel 3 2 | 584 mm |
| Weight pair | 2.5 kg |
| Extended hold | No |
| Extension type | Over extraction |
| Fast disconnect | Yes |
| Locking | Yes |
| Material | Stainless steel (304) |
| Optional mounting brackets | No |
| Retracted hold | No |
| Self closure | No |
| Surface | Blank |
| Typ | DS 3557 |
Description
Material: Stainless steel 1.4401 (AISI 316). Telescopic ball bearing precision slides for applications in the industrial and electronics sector. Sold by pair (1 x product no. = 1 pair of slides). Locks in open position. Fast disconnection. Pinch free disconnect for easy drawer removal. Service life 10,000 cycles. Temperature range: -20°C to +70°C. Note: Recommended fastening: M4 screw. Use all mounting positions to achieve the max. load ratings.
