MÄDLERMÄDLER· Accuride® – Telescopic Slides and Linear Guides

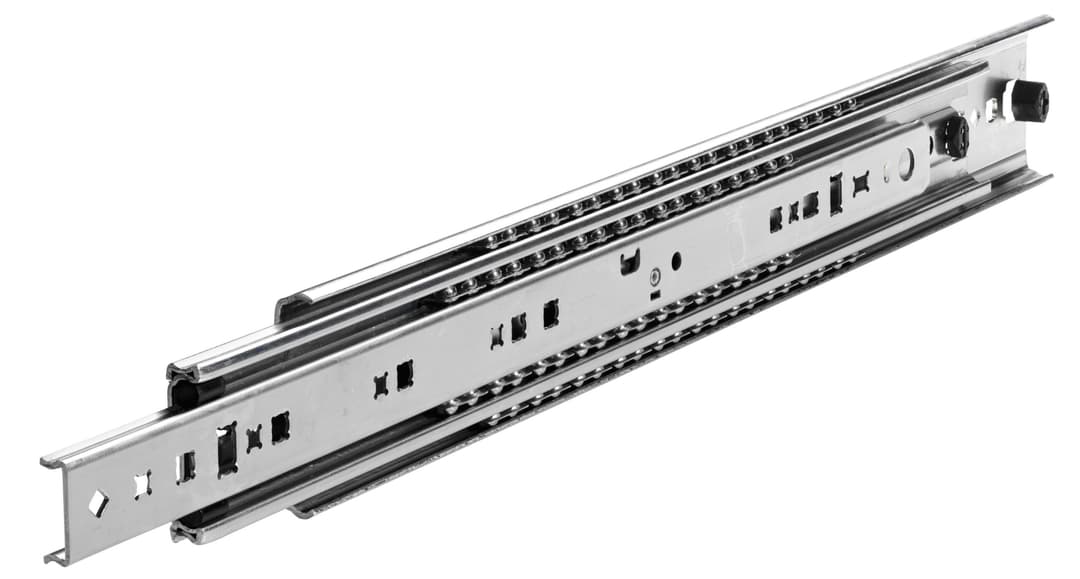

Slide set DZ 7957 slide length 457.2mm zinc plated
Manufacturer part no. 64903918
$154.86≈ 134.49 €
In stock — 1 unitslead time 14 d
Estimated landed cost
| Item | €134.49 |
|---|---|
| Shipping | €15.00 |
| VAT (20%) | €29.90 |
| Total delivered | €179.39 |
Estimate for a single item delivered to mainland France, shipped from outside the EU: customs duty and clearance fees may apply and are charged by the carrier.
Datasheets & documents
Specifications (automatically extracted)
Other characteristics
| Load rating pair | 150 kg |
| Rail length | 457 mm |
| Slide width | 19.1 mm |
| Travel 3 2 | 457 mm |
| Weight pair | 3.62 kg |
| Extended hold | No |
| Extension type | Full extraction |
| Fast disconnect | Yes |
| Locking | No |
| Material | Steel |
| Optional mounting brackets | Yes |
| Retracted hold | No |
| Self closure | No |
| Surface | Zinc-plated (bright) |
| Typ | DZ 7957 |
Description
Material: Slide elements: Cold rolled steel, zinc plated. Ball retainers: Cold rolled steel, zinc plated. Balls: Hardened steel. Sold by pair (1 x product no. = 1 pair of slides). Telescopic ball bearing precision slides for applications in the industrial and electronics sector. Suitable for drawers up to 1000mm wide at high load. Fast disconnect. Optional Clip-On Brackets. Very high service life up to 80,000 cycles. Temperature range: -20°C to +70°C.
