MÄDLERMÄDLER· Accuride® – Telescopic Slides and Linear Guides

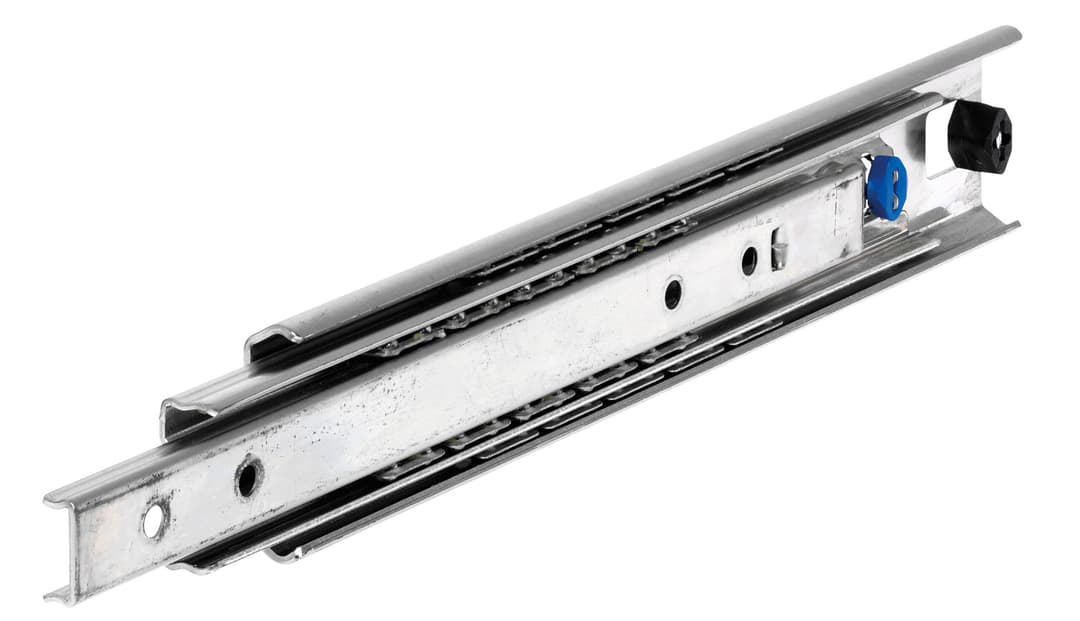

Slide set DZ 5321 slide length 1000mm zinc plated
Manufacturer part no. 64904099
$383.45≈ 333.00 €
In stock — 2 unitslead time 14 d
Estimated landed cost
| Item | €333.00 |
|---|---|
| Shipping | €15.00 |
| VAT (20%) | €69.60 |
| Total delivered | €417.60 |
Estimate for a single item delivered to mainland France, shipped from outside the EU: customs duty and clearance fees may apply and are charged by the carrier.
Datasheets & documents
Specifications (automatically extracted)
Other characteristics
| Rail length | 1 000 mm |
| Slide width | 19.1 mm |
| Travel 3 2 | 1 023,5 mm |
| Weight pair | 5.87 kg |
| Extended hold | No |
| Extension type | Over extraction |
| Fast disconnect | No |
| Load rating pair | 80 / 70 kg |
| Locking | No |
| Material | Steel |
| Optional mounting brackets | No |
| Retracted hold | Yes |
| Self closure | No |
| Surface | Zinc-plated (bright) |
| Typ | DZ 5321 |
Description
Material: Slide elements: Cold rolled steel, zinc plated. Ball retainers: Cold rolled steel, zinc plated. Balls: Hardened steel. Sold by pair (1 x product no. = 1 pair of slides). Telescopic ball bearing precision slides for applications in the industrial and electronics sector. Hold-in in closed position. Mounting bracket for electrical cabinets on request. Service life 10,000 / 80,000 cycles. Temperature range: -20°C to +70°C. Note Recommended fastening: M5 countersunk / 6mm countersunk Euro screw. Use all mounting positions to achieve the max. load rating. Attention: Vertical mounting only. Ordering details: e.g.: Product no. 649 040 30, Slides 5321
