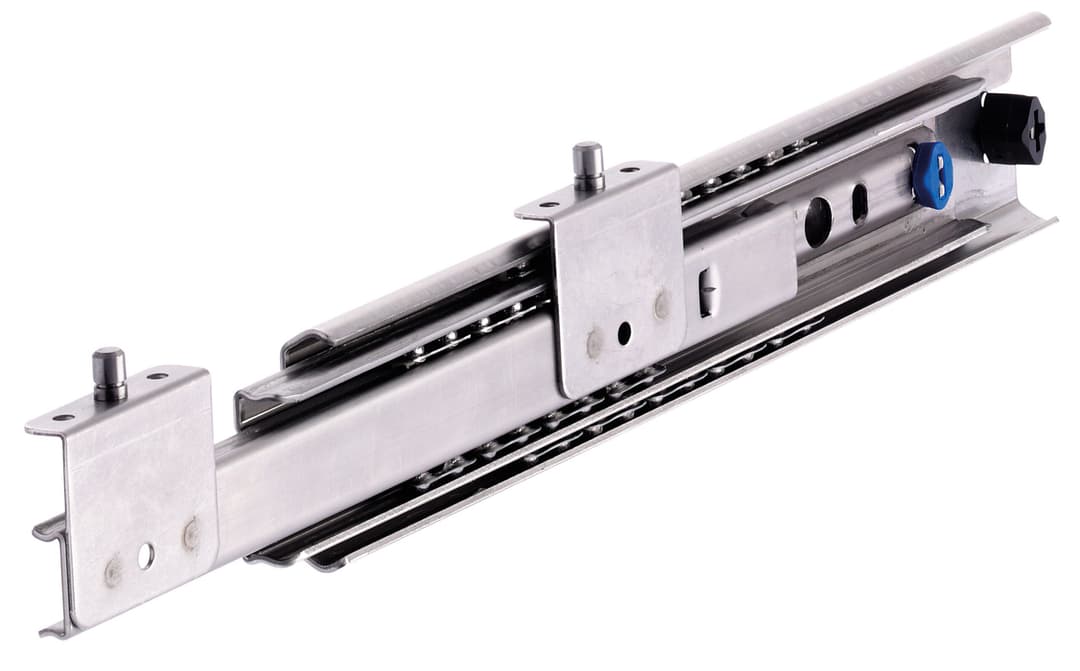

Slide set DS 5322 slide length 350mm stainless steel
Manufacturer part no. 64904835
$304.19≈ 264.17 €
In stock — 1 unitslead time 14 d
Estimated landed cost
| Item | €264.17 |
|---|---|
| Shipping | €15.00 |
| VAT (20%) | €55.83 |
| Total delivered | €335.00 |
Estimate for a single item delivered to mainland France, shipped from outside the EU: customs duty and clearance fees may apply and are charged by the carrier.
Datasheets & documents
Specifications (automatically extracted)
Other characteristics
| Load rating pair | 90 kg |
| Rail length | 350 mm |
| Slide width | 20.7 mm |
| Travel 3 2 | 392 mm |
| Weight pair | 2.15 kg |
| Extended hold | No |
| Extension type | Over extraction |
| Fast disconnect | No |
| Locking | No |
| Material | Stainless steel (304) |
| Optional mounting brackets | No |
| Retracted hold | Yes |
| Self closure | No |
| Surface | Blank |
| Typ | DS 5322 |
Description

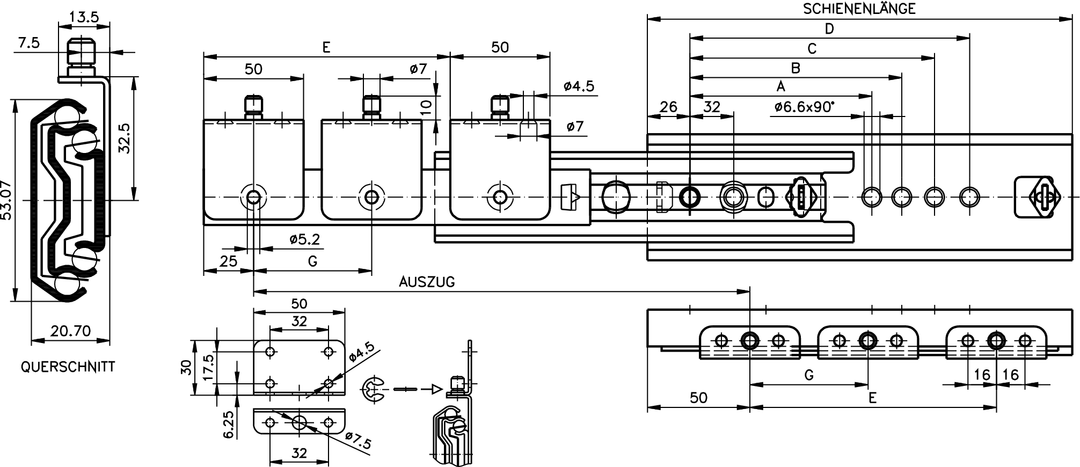

Material: Stainless steel 1.4301 (AISI 304). Sold by pair (1 x product no. = 1 pair of slides). Telescopic ball bearing precision slides for applications in the industrial and electronics sector. Hold-in in closed position. Easily mounted brackets with bolts. Especially long service life, up to 80,000 cycles. Temperature range: -20°C to +70°C. Note Recommended fastening: M5 countersunk / 6mm countersunk Euro screw. Use all mounting positions to achieve the max. load rating. Ordering details: e.g.: Product no. 649 048 30, Slides DS 5322
