MÄDLERMÄDLER· Accuride® – Telescopic Slides and Linear Guides

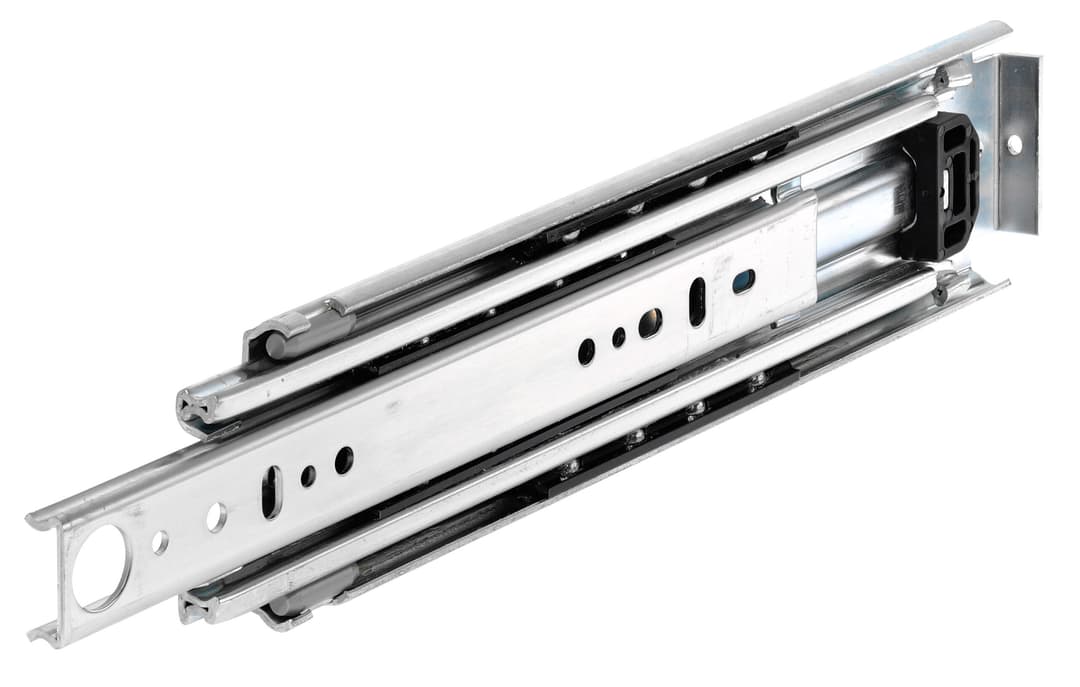

Slide rail DZ 9301 slide length 914mm zinc plated
Manufacturer part no. 64905136
$272.20≈ 236.39 €
In stock — 2 unitslead time 14 d
Estimated landed cost
| Item | €236.39 |
|---|---|
| Shipping | €15.00 |
| VAT (20%) | €50.28 |
| Total delivered | €301.67 |
Estimate for a single item delivered to mainland France, shipped from outside the EU: customs duty and clearance fees may apply and are charged by the carrier.
Datasheets & documents
Specifications (automatically extracted)
Other characteristics
| Load rating pair | 248 kg |
| Rail length | 914 mm |
| Slide width | 19.1 mm |
| Travel 3 2 | 914 mm |
| Weight pair | 4.37 kg |
| Extended hold | No |
| Extension type | Full extraction |
| Fast disconnect | No |
| Locking | No |
| Material | Steel |
| Optional mounting brackets | Yes |
| Retracted hold | No |
| Self closure | No |
| Surface | Zinc-plated (bright) |
| Typ | DZ 9301 E |
Description
Material: Slide elements: Cold rolled steel, zinc plated. Ball retainers: Plastic. Balls: Hardened steel. Sold by piece (1 x product no. = 1 single slide). Telescopic ball bearing precision slides for applications in the industrial and electronics sector. Lengths to 1.5 meters. Optional clip-on bracket accessory kits type 634 available. Service life 10,000 cycles ( to 217 kg up to 75,000 cycles). Temperature range: -20°C to +70°C. Note Recommended fastening: M5 / M6 screw. Screw head diameter max. 12.7 mm. Screw head height max. 4.8mm. Use all mounting positions to achieve the max. load ratings.
