MÄDLERMÄDLER· Accuride® – Telescopic Slides and Linear Guides

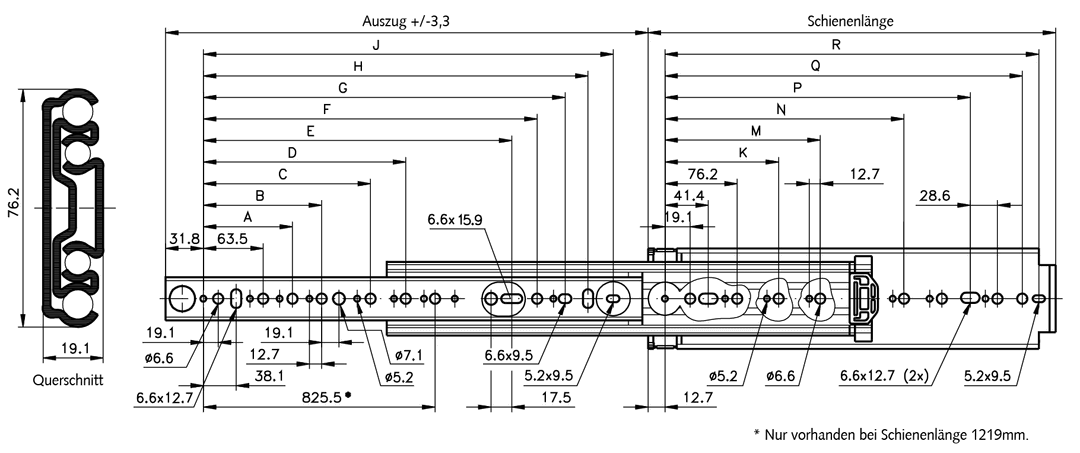

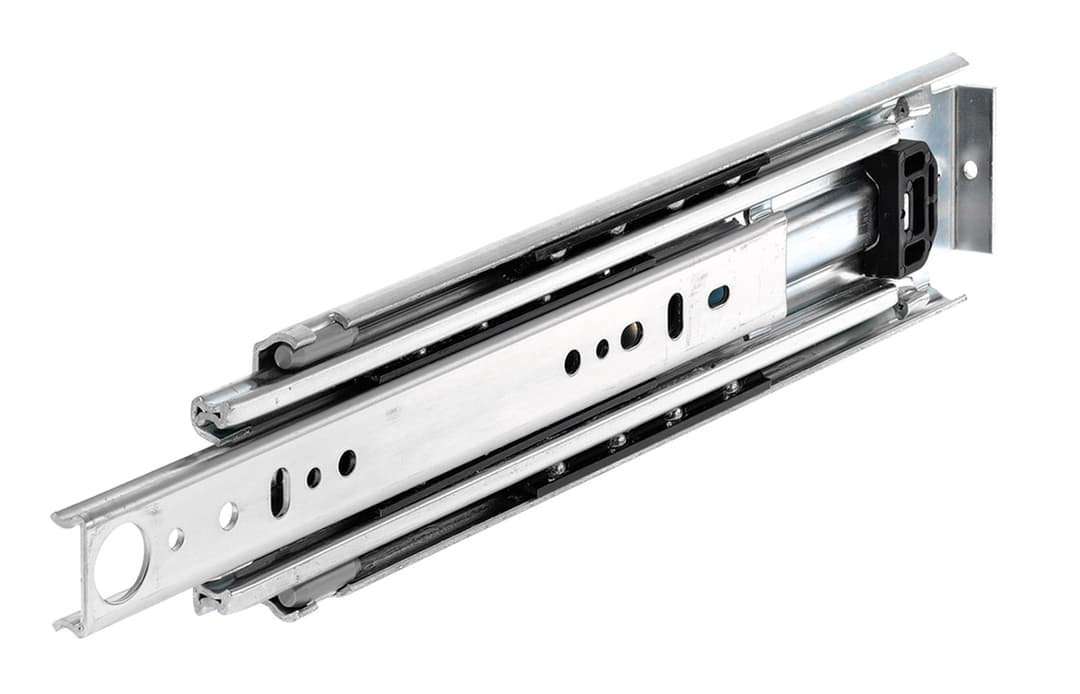

slide rail DP 9301 E slide length 254mm
Manufacturer part no. 64905710
$89.55≈ 77.77 €
In stock — 1 unitslead time 14 d
Estimated landed cost
| Item | €77.77 |
|---|---|
| Shipping | €15.00 |
| VAT (20%) | €18.55 |
| Total delivered | €111.32 |
Estimate for a single item delivered to mainland France, shipped from outside the EU: customs duty and clearance fees may apply and are charged by the carrier.
Datasheets & documents
Specifications (automatically extracted)
Other characteristics
| Load rating pair | 272 kg |
| Rail length | 254 mm |
| Slide width | 19.1 mm |
| Travel 3 2 | 254 mm |
| Weight pair | 1.15 kg |
| Extended hold | No |
| Extension type | Full extraction |
| Fast disconnect | No |
| Locking | No |
| Material | Steel |
| Optional mounting brackets | Yes |
| Retracted hold | No |
| Self closure | No |
| Surface | Good corrosion resistance |
| Typ | DP 9301 E |
Description
Material: Slide elements: Cold rolled steel, zinc plated, with organic-mineral coating for high corrosion resistance. Ball retainers: Plastic. Balls: Hardened steel. Sold by piece (1 x product no. = 1 single slide). Telescopic ball bearing precision slides for applications in the industrial and electronics sector. Slides sold separately. Good corrosion resistance. Lubricated with grease for food. Service life 10,000 cycles. Temperature range: -20°C to +70°C. Note: Recommended fastening: M5 / M6 screw. Screw head diameter max. 12.7 mm. Screw head height max. 4.8mm. Use all mounting positions to achieve the max. load ratings.
