MÄDLERMÄDLER· Accuride® – Telescopic Slides and Linear Guides

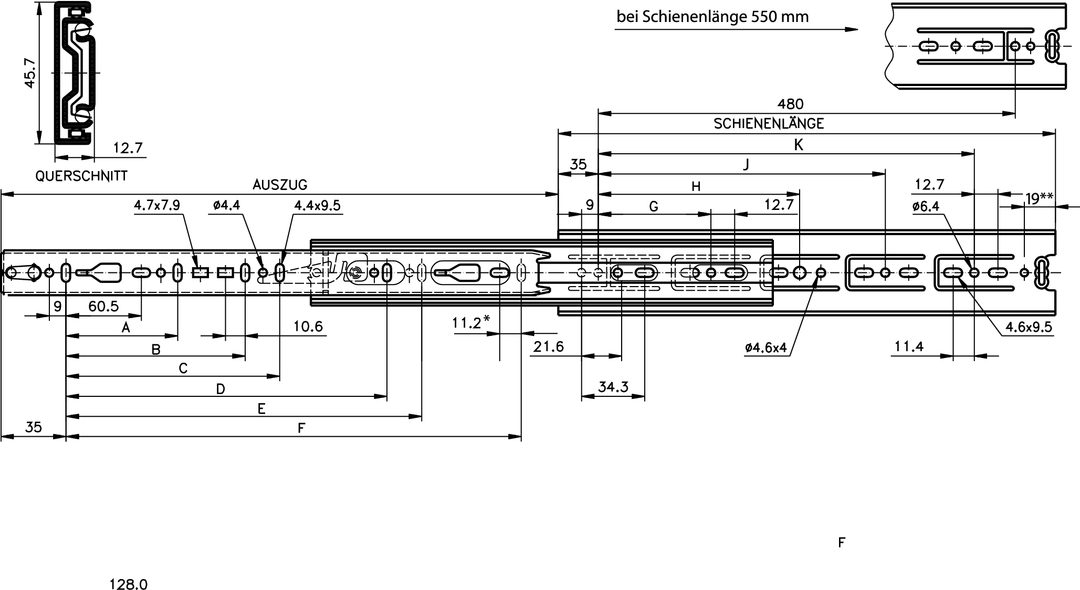

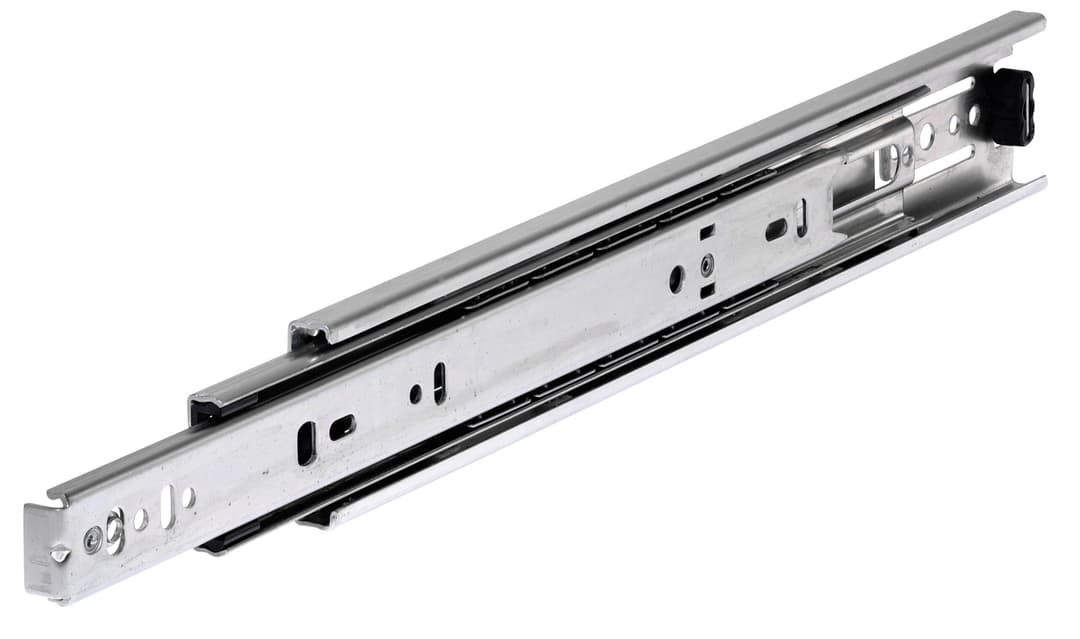

Slide set DH 3832 slide length 600mm corrosion resistant
Manufacturer part no. 64931260
$87.33≈ 75.84 €
In stock — 2 unitslead time 14 d
Estimated landed cost
| Item | €75.84 |
|---|---|
| Shipping | €15.00 |
| VAT (20%) | €18.17 |
| Total delivered | €109.01 |
Estimate for a single item delivered to mainland France, shipped from outside the EU: customs duty and clearance fees may apply and are charged by the carrier.
Datasheets & documents
Specifications (automatically extracted)
Other characteristics
| Load rating pair | 50 kg |
| Rail length | 600 mm |
| Slide width | 12.7 mm |
| Travel 3 2 | 610 mm |
| Weight pair | 1.85 kg |
| Extended hold | No |
| Extension type | Full extraction |
| Fast disconnect | Yes |
| Locking | No |
| Material | Steel / Stainless steel |
| Optional mounting brackets | No |
| Retracted hold | Yes |
| Self closure | No |
| Surface | Corrosion proof for rough environments |
| Typ | DH 3832 |
Description
Material: Slide elements: Cold rolled steel, special zinc-plating. Ball retainers: Plastic / stainless steel. Balls: Stainless steel. Sold by pair (1 x product no. = 1 pair of slides). Telescopic ball bearing precision slides for applications in the industrial and electronics sector. Corrosion proof for rough environments. 8 times better than with standard zinc-plated surface finish. Ball retainers, balls and rivets made from stainless steel. Fast disconnection. Hold-in in the closed position. Cam drawer adjust (3.1 mm). Service life 80,000 cycles. Temperature range: -20°C to +70°C. Note Recommended fastening: M4 screw. Use all mounting positions to achieve the max. load ratings. Horizontal mounting is not recommended. Ordering details: e.g.: Product no. 649 312 15, Slides DH 3832
