MÄDLERMÄDLER· Accuride® – Telescopic Slides and Linear Guides

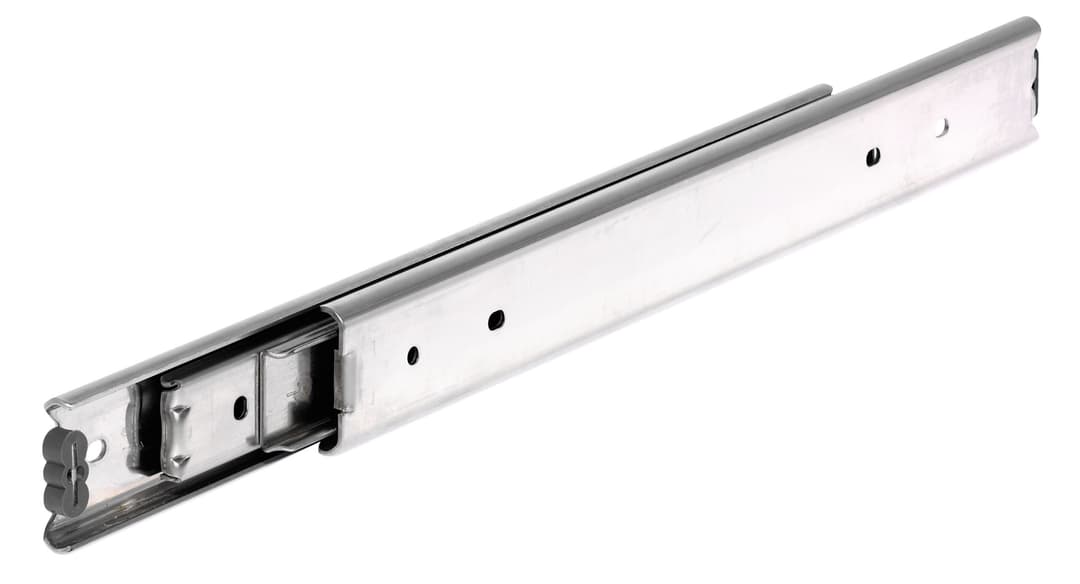

Slide set DS 0330 slide length 550mm stainless steel
Manufacturer part no. 64944655
$350.39≈ 304.29 €
In stock — 2 unitslead time 14 d
Estimated landed cost
| Item | €304.29 |
|---|---|
| Shipping | €15.00 |
| VAT (20%) | €63.86 |
| Total delivered | €383.15 |
Estimate for a single item delivered to mainland France, shipped from outside the EU: customs duty and clearance fees may apply and are charged by the carrier.
Datasheets & documents
Specifications (automatically extracted)
Other characteristics
| Rail length | 550 mm |
| Slide width | 19.1 mm |
| Travel 3 2 | 550 mm |
| Weight pair | 2.07 kg |
| Extended hold | No |
| Extension type | Full extraction |
| Fast disconnect | No |
| Load rating pair | 70 / 50 kg |
| Locking | No |
| Material | Stainless steel (304) |
| Optional mounting brackets | No |
| Retracted hold | Yes |
| Self closure | No |
| Surface | Blank |
| Typ | DS 0330 |
Description
Material: Stainless steel 1.4301 (AISI 304). Sold by pair (1 x product no. = 1 pair of slides). Telescopic ball bearing precision slides for applications in the industrial and electronics sector. Hold-in in closed position. Can be mounted on both sides. Service life 10,000 / 80,000 cycles. Temperature range: -20°C to +70°C. Note Recommended fastening: M4 screw. Use all mounting positions to achieve the max. load rating.
