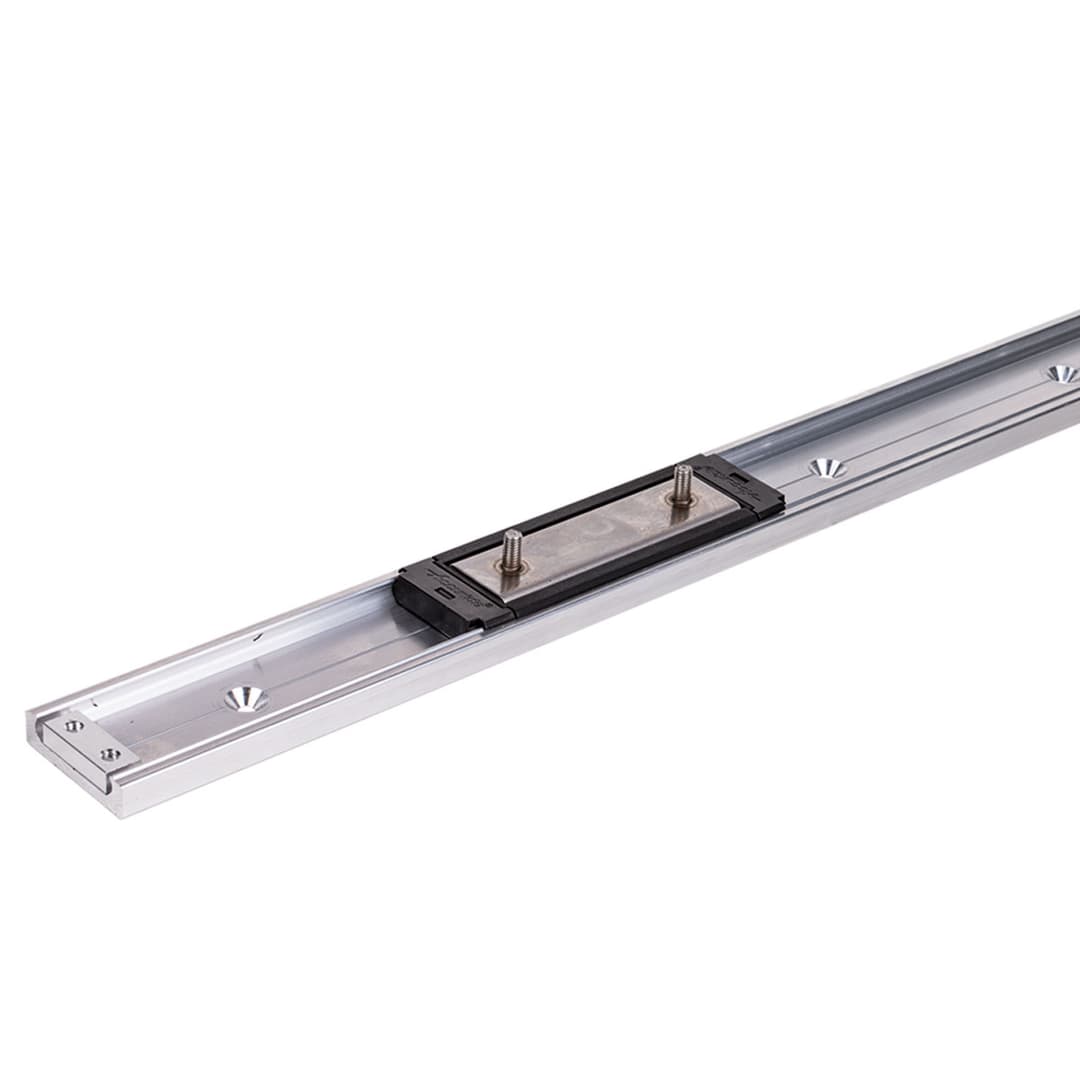

Name: Track for linear guide DA 0115 RC aluminium length 2400mm
Brand: MÄDLER
Price: 83.10 USD
Availability: InStock

Specifications (automatically extracted)

Mechanical

Weight

1.27 kg

Other characteristics

Height	12 mm
Length	2 400 mm
Width	40 mm
Description	Track
Feature	Without bores
Material	Aluminum
Surface	Blank

Description

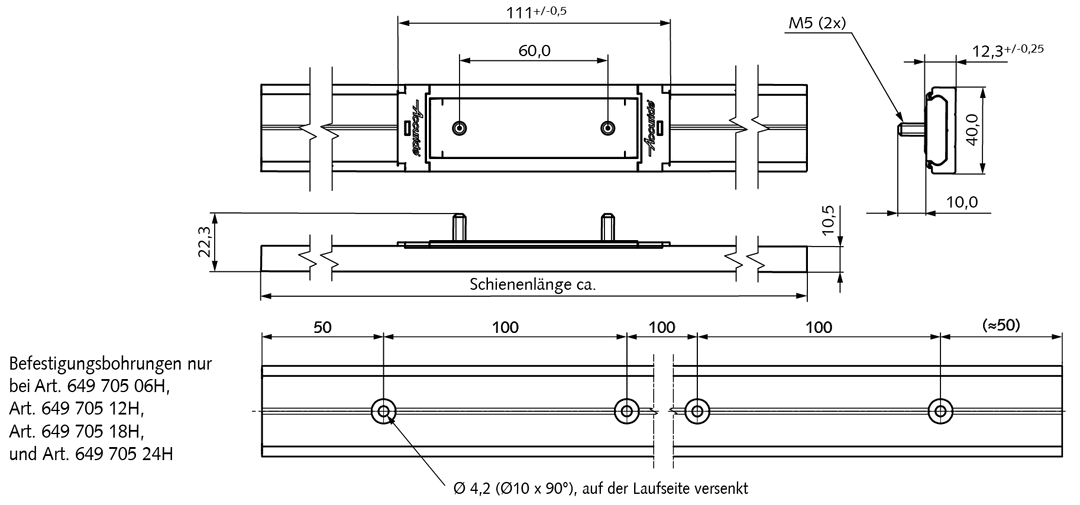

Material: Track made from aluminium. Carriage: Stainless steel housing with plastic sealings. On choice: With stainless steel balls (greased) or polymer balls (grease free). All parts have to be ordered seperately. Linear guide for universal use. Video clip (2 minutes) for illustrating Four track lenghts on choice (for to cut by the customer). On choice without boreholes or with monting holes. Several carriages can be used on one track. Resistant against corrosion and dirt. long service life, tested to 80,000 meters of travel distance. Temperature range: -20°C to +70°C. 649 705 01 = Carriage with stainless steel balls. 649 705 02 = Carriage with polymer balls. 649 705 03 = End Stop (1 piece with screws). 649 705 06 = Track, length approx. 600mm. 649 705 06H = Track, length approx. 600mm, with mounting holes. 649 705 12 = Track, length approx. 1200mm. 649 705 12H = Track, length approx. 1200mm, with mounting holes. 649 705 18 = Track, length approx. 1800mm. 649 705 18H = Track, length approx. 1800mm, with mounting holes. 649 705 24 = Track, length approx. 2400mm. 649 705 24H = Track, length approx. 2400mm, with mounting holes. Please see catalog page (PDF).
