Miniature profile rail guide HQ stainless rail width 15mm length 600mm overall height 16mm 1 carriage
Manufacturer part no. 64970584
$615.90≈ 534.87 €
In stock — 2 unitslead time 14 d
Estimated landed cost
| Item | €534.87 |
|---|---|
| Shipping | €15.00 |
| VAT (20%) | €109.97 |
| Total delivered | €659.84 |
Estimate for a single item delivered to mainland France, shipped from outside the EU: customs duty and clearance fees may apply and are charged by the carrier.
Datasheets & documents
Specifications (automatically extracted)
Mechanical
| Torque | 11.217 kg·cm |
| Weight | 720 g |

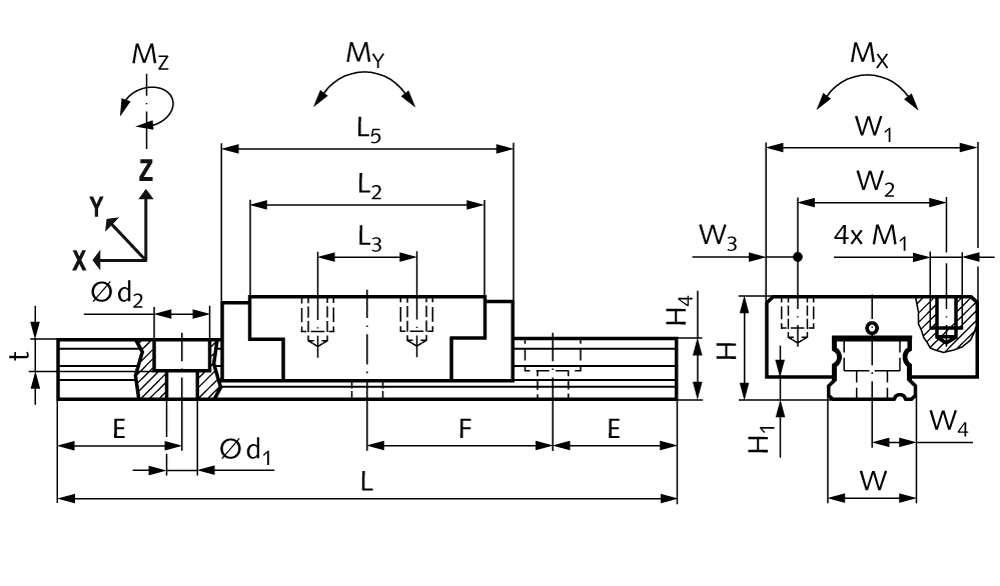

Other characteristics
| E | 20 mm |
| F | 40 mm |
| H | 16 mm |
| H1 | 4 mm |
| H4 | 9.5 mm |
| L2 | 37 mm |
| L3 | 20 mm |
| L5 | 44 mm |
| Load rating c | 4 903 N |
| Load rating c0 | 5 844 N |
| No of carts | 1 |
| Rail length | 600 mm |
| Rail width w | 15 mm |
| Spare part carriage | 64 970 589 |
Description
Material: Rails: Stainless steel 1.4037. Guide Carriage: Stainless steel 1.4037 with return zones of POM. Balls: Stainless steel 1.4037. Seals: Polyurethane. Lubrication: Oil with FDA registration. Technical Data: Structure: 4-point contact ball recirculation system with identical load angles and 2 ball recirculation paths per carriage for unlim ited stroke. Product range: four different rail widths: 7, 9, 12, 15 mm with one or two carriages. Speed: Up to max. 5 m/s. Acceleration: Up to 140 m/s2. Accuracy class: H (standard, for most applications). Preload class: Z0 (standard, slight clearance). Other accuracy classes and preload classes on request. Temperature range: -20ºC to +80ºC. Rust-resistant: All components of the system are made from rust-resitant steel or of plastic and are therefore not prone to corrosion. Easy maintenance: The system can be easily relubricated through lubrications holes located in the end pieces of the carriage.
