MÄDLERMÄDLER· Accuride® – Telescopic Slides and Linear Guides

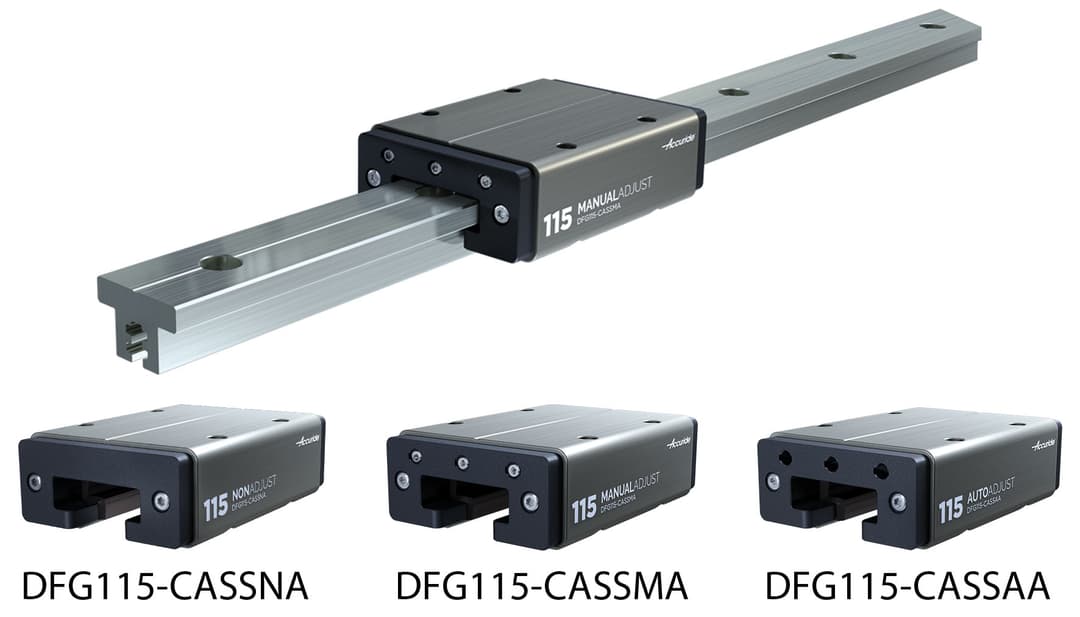

Track for linear guide DFG 115 aluminium length 500mm
Manufacturer part no. 64970705
$83.72≈ 72.71 €
In stock — 2 unitslead time 14 d
Estimated landed cost
| Item | €72.71 |
|---|---|
| Shipping | €15.00 |
| VAT (20%) | €17.54 |
| Total delivered | €105.25 |
Estimate for a single item delivered to mainland France, shipped from outside the EU: customs duty and clearance fees may apply and are charged by the carrier.
Datasheets & documents
Specifications (automatically extracted)
Mechanical
| Weight | 240 g |
Other characteristics
| Description | Track |
| Feature | L = 500mm |
| Material | Aluminum |
| Surface | hard anodised |
| Type | DFG115-0050 |
Description
Material: Track and carriage from aluminium, hard anodised. Plain bearings from advanced technical polymer. Linear guide for universal use. Video clip (2.5 minutes) for illustrating All parts have to be ordered seperately. Dimensionally interchangeable with rolling bearing linear motion guides ISO 12090 size 15. Three types of carriages on choice: non-adjustable / manual adjustable / automatic adjustment. Four track lenghts on choice (for to cut by the customer). Several carriages can be used on one track. Resistant against corrosion, suitable for high pressure wash down. Long service life, maintenance-free. Temperature range: -40°C to +90°C. Note: Two or more tracks can be butted together to create a longer track. Misaligned tracks will cause excessive wear on the guides. Please see catalog page (PDF).
