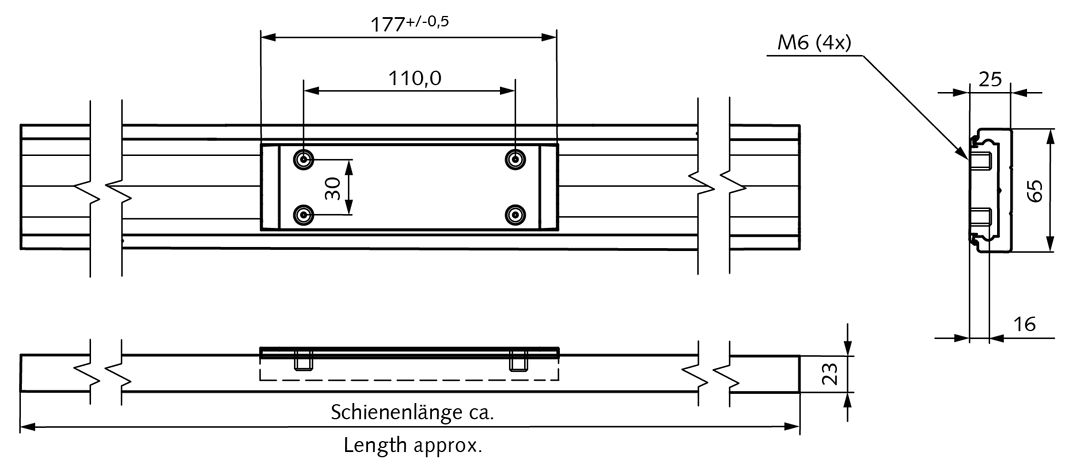

Name: Carriage with stainless steel balls for linear guide DA 0116 RC
Brand: MÄDLER
Price: 182.98 USD
Availability: InStock

Specifications (automatically extracted)

Mechanical

Weight

559 g

Other characteristics

Height	20 mm
Length	177 mm
Width	57 mm
Description	Carriage
Feature	With stainless steel balls
Material	Stainless steel
Surface	Blank

Description

Material: Track made from aluminium. Carriage: Stainless steel housing with plastic sealings. On choice: With stainless steel balls (greased) or polymer balls (grease free). All parts have to be ordered seperately. Linear guide for universal use. Video clip (3 minutes) for illustrating Five track lenghts on choice (for to cut by the customer). Tracks without boreholes, for customized mounting holes. Several carriages can be used on one track. Resistant against corrosion and dirt. long service life, tested to 100,000 meters of travel distance. Temperature range: -20°C to +70°C. 649 905 01 = Carriage with stainless steel balls. 649 905 02 = Carriage with polymer balls. 649 905 03 = Pair of end stops (2 piece with 2 screws for central fixing). 649 905 06 = Track, length approx. 6 m. 649 905 12 = Track, length approx. 12 m. 649 905 18 = Track, length approx. 18 m. 649 905 24 = Track, length approx. 24 m. 649 905 36 = Track, length approx. 36 m, with mounting holes.
