MÄDLERMÄDLER· Fastening Elements

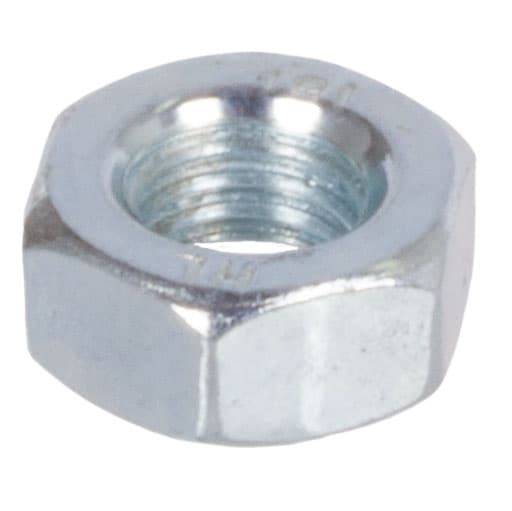

Hexagon nut DIN 934 steel strength 8 zinc-plated thread M3 right handed
Manufacturer part no. 65200300
$0.26≈ 0.23 €
In stock — 9 unitslead time 14 d
Estimated landed cost
| Item | €0.23 |
|---|---|
| Shipping | €15.00 |
| VAT (20%) | €3.05 |
| Total delivered | €18.28 |
Estimate for a single item delivered to mainland France, shipped from outside the EU: customs duty and clearance fees may apply and are charged by the carrier.
Datasheets & documents
Specifications (automatically extracted)
Other characteristics

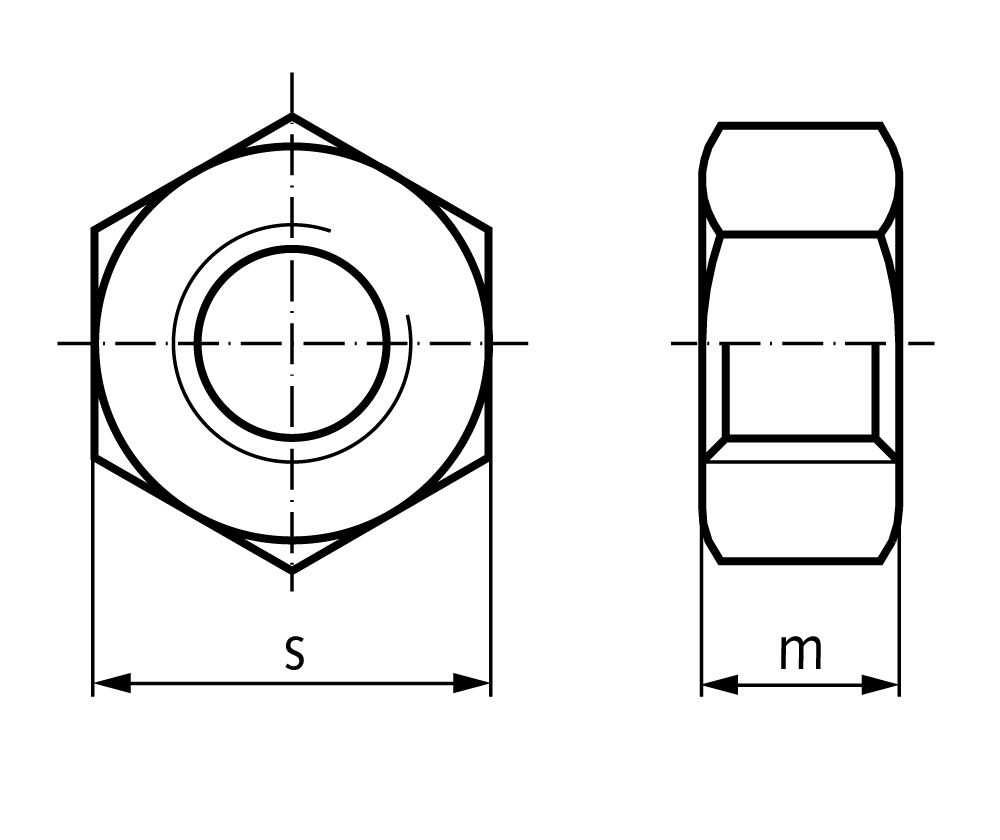

| Height | 2.4 mm |
| Pitch | 0.5 mm |
| Weight per 100 pcs | 0.04 kg |
| Wrench size | 5.5 mm |
| Material | Steel (strength class 8) |
| Surface | Zinc-plated |
| Thread size | M 3 RH mm |
Description
Material: Steel, tensile strength 8, zinc-plated. Hexagon nuts according to the old standard DIN 934 with metric ISO thread. The standard DIN 934 was replaced by DIN EN ISO 4032 / 8673. Some of these nuts have different outer dimensions (width across flats and height). But the nuts DIN 934 are still used very often.
