MÄDLERMÄDLER· Fastening Elements

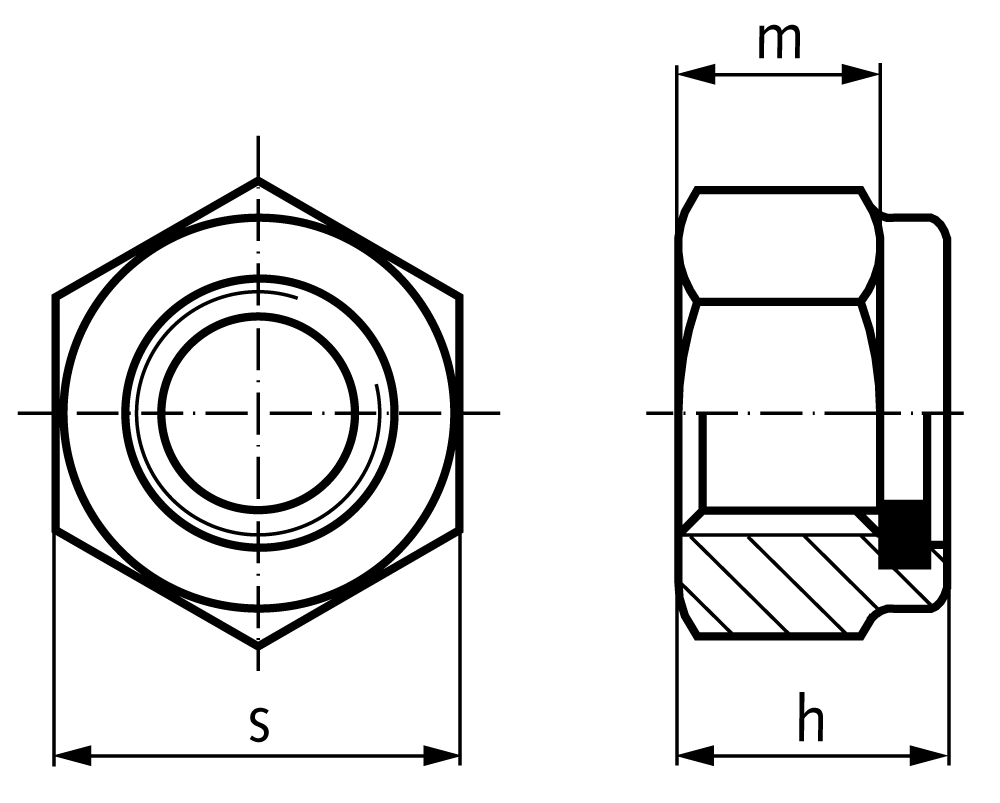

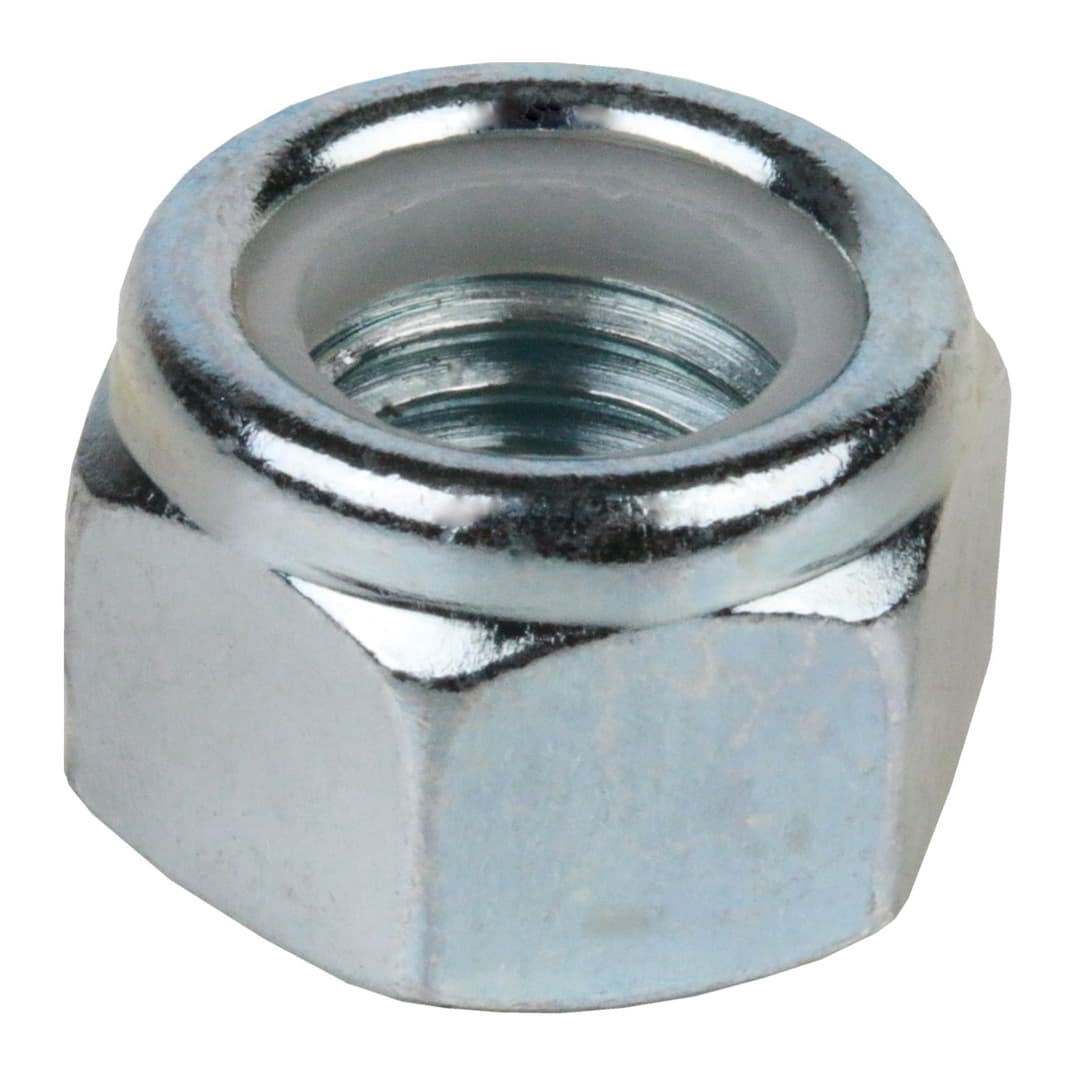

Hexagon nut DIN 982 (similar DIN EN ISO 7040) with polyamid insert M10 steel zinc plated property class 10
Manufacturer part no. 65211010
$0.75≈ 0.65 €
In stock — 10 unitslead time 14 d
Estimated landed cost
| Item | €0.65 |
|---|---|
| Shipping | €15.00 |
| VAT (20%) | €3.13 |
| Total delivered | €18.78 |
Estimate for a single item delivered to mainland France, shipped from outside the EU: customs duty and clearance fees may apply and are charged by the carrier.
Datasheets & documents
Specifications (automatically extracted)
Other characteristics
| Pitch | 1.5 mm |
| Strength class | 10 |
| Weight per 100 pcs | 1.3 kg |
| Material | Steel (strength class 10) |
| Surface | Zinc-plated |
| Thread size | M 10 mm |
Description
Material: Steel, tensile strength 8, zinc-plated. Steel, tensile strength 10, zinc-plated. Self-locking hexagon nuts according to the old standard DIN 982 with metric ISO thread. The standard DIN 982 was replaced by DIN EN ISO 7040. Some of these nuts have different outer dimensions (width across flats and height). But the nuts DIN 982 are still used very often.
