MÄDLERMÄDLER· Fastening Elements

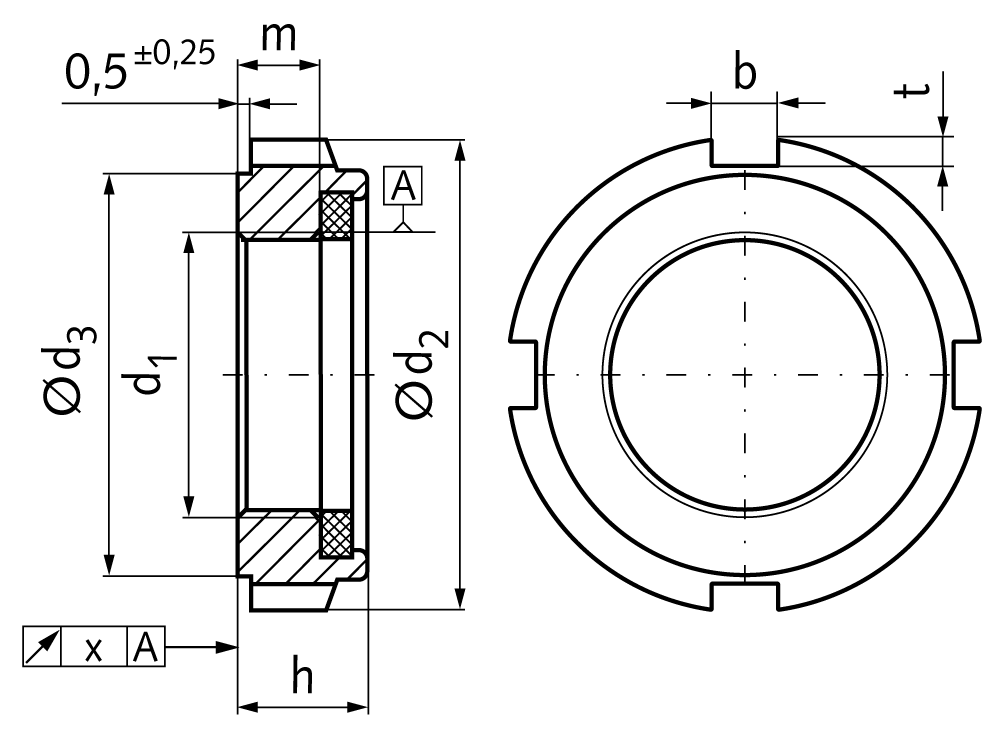

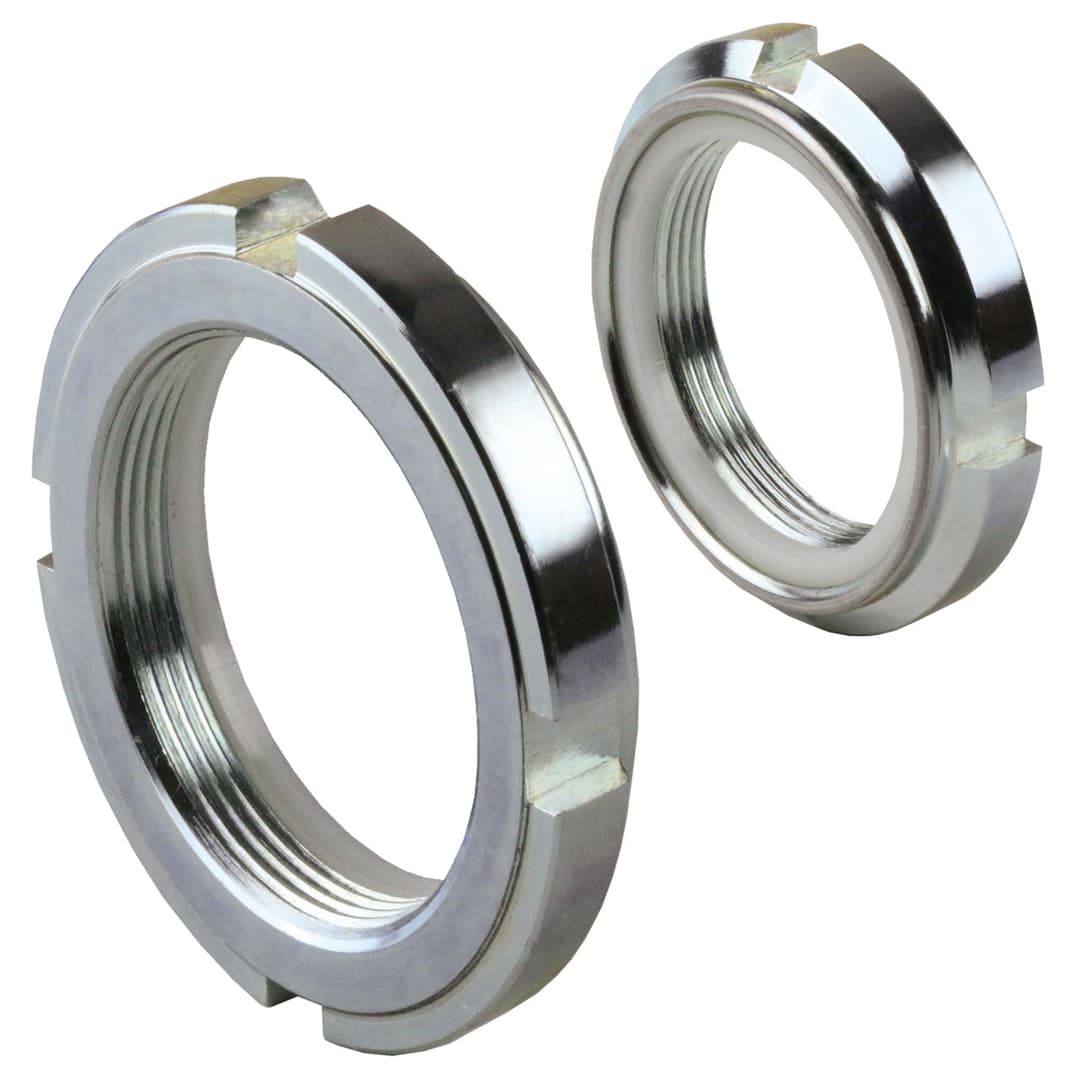

Locknut GUK 20 M100 x 2 steel zinc-plated with polyamid insert
Manufacturer part no. 65244100
$25.72≈ 22.34 €
In stock — 10 unitslead time 14 d
Estimated landed cost
| Item | €22.34 |
|---|---|
| Shipping | €15.00 |
| VAT (20%) | €7.47 |
| Total delivered | €44.81 |
Estimate for a single item delivered to mainland France, shipped from outside the EU: customs duty and clearance fees may apply and are charged by the carrier.
Datasheets & documents
Specifications (automatically extracted)
Mechanical
| Weight | 675 g |
Other characteristics
| Axial runout | 0.05 mm |
| No of nuts | 8 |
| Outer diameter | 130 mm |
| Width | 19.7 mm |
| Material | Steel |
| Surface | Zinc-plated |
| Thread size x pitch | M 100×2 mm |
| Type | GUK 20 |
Description
Material: Steel, zinc-plated, hardness class 14 H. These self-locking slot nuts with metric fine thread are used for fixing bearings or as adjusting nuts. The threads are like locknuts DIN 981 respectively DIN 1804. Please note the pitch, specified in the thread size d1. Recommend tolerance for the shaft thread: 6g DIN ISO 965. Temperature max. 100°C.
