MÄDLERMÄDLER· Fastening Elements

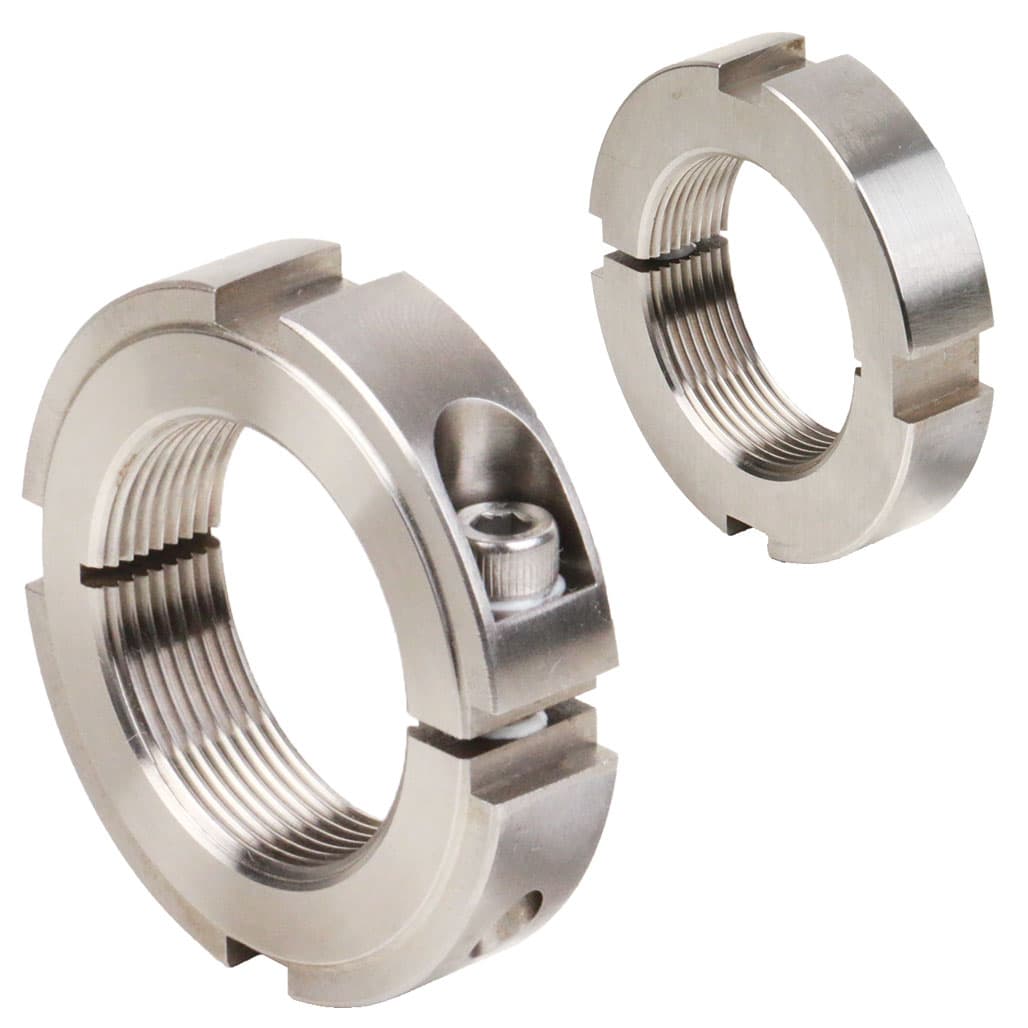

locknut KMMR splitted with clamp screw size 0a M10x1 Material stainless steel
Manufacturer part no. 65299402K
$17.65≈ 15.33 €
In stock — 10 unitslead time 14 d
Estimated landed cost
| Item | €15.33 |
|---|---|
| Shipping | €15.00 |
| VAT (20%) | €6.07 |
| Total delivered | €36.40 |
Estimate for a single item delivered to mainland France, shipped from outside the EU: customs duty and clearance fees may apply and are charged by the carrier.
Datasheets & documents
Specifications (automatically extracted)
Mechanical
| Weight | 27 g |
Other characteristics
| Hub diameter | 20 mm |
| Max outer diameter over screw head | 26.2 mm |
| Outer diameter | 25 mm |
| Width | 9.8 mm |
| Material | Stainless steel (304) |
| Screw din 912 | M 3 x 12 |
| Surface | Blank |
| Thread size x pitch | M 10×1 mm |
| Type | KMM0a |
Description
Material: Stainless steel 1.4301 (AISI 304). Screw stainless steel A2-70. Shaft nuts with 4 slots, with clamp slot and clamp screw. With metric fine thread. They are used for fixing bearings or as adjusting nuts. The threads are like locknuts DIN 981 respectively DIN 1804. Please note the pitch, specified in the thread size d1. Recommend tolerance for the shaft thread: 6g DIN ISO 965.
