MÄDLERMÄDLER· Fastening Elements

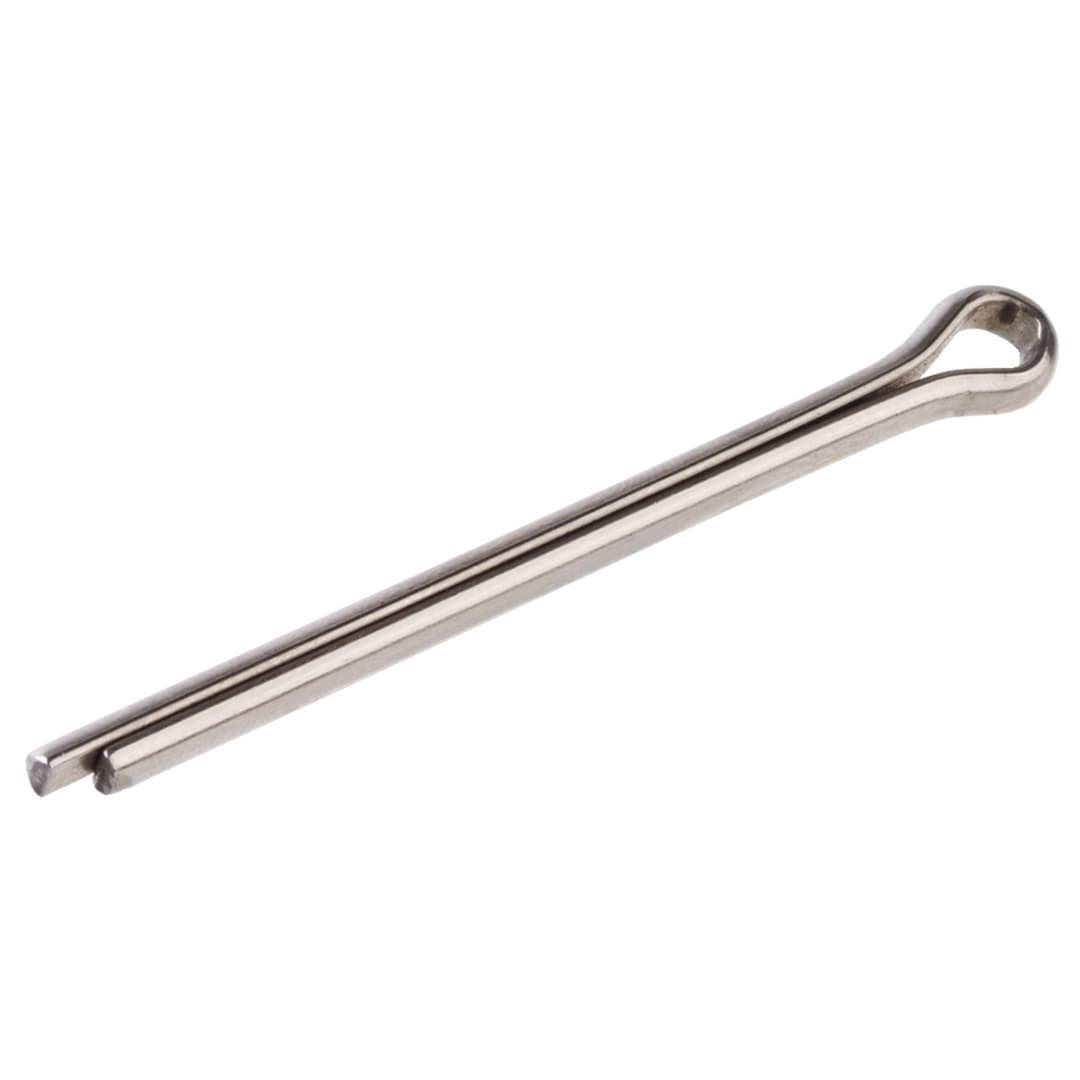

Split pin DIN EN ISO 1234 (ex DIN 94) 2 x 10 stainless steel A2
Manufacturer part no. 65312010A2
$0.45≈ 0.39 €
In stock — 10 unitslead time 14 d
Estimated landed cost
| Item | €0.39 |
|---|---|
| Shipping | €15.00 |
| VAT (20%) | €3.08 |
| Total delivered | €18.47 |
Estimate for a single item delivered to mainland France, shipped from outside the EU: customs duty and clearance fees may apply and are charged by the carrier.
Datasheets & documents
Specifications (automatically extracted)
Other characteristics
| Head length approx | 4 mm |
| Length | 10 mm |
| Nominal size | 2 |
| Weight per 100 pcs | 40 g |
| Material | Stainless steel (304) |
| Suitable for bolt diameter | 6 – 8 mm |
| Suitable for screw diameter | 7 – 9 mm |
| Surface | Blank |
Description
Material: Stainless Steel A2. These pins are used to secure bolts, or nuts on screws. After plugging in, the pointed ends must be bent over. The connection is well protected against unwanted loosening. Note: Such split pins may be used only once. After removing a pin, it needs to be replaced by a new part.
