MÄDLERMÄDLER· Fastening Elements

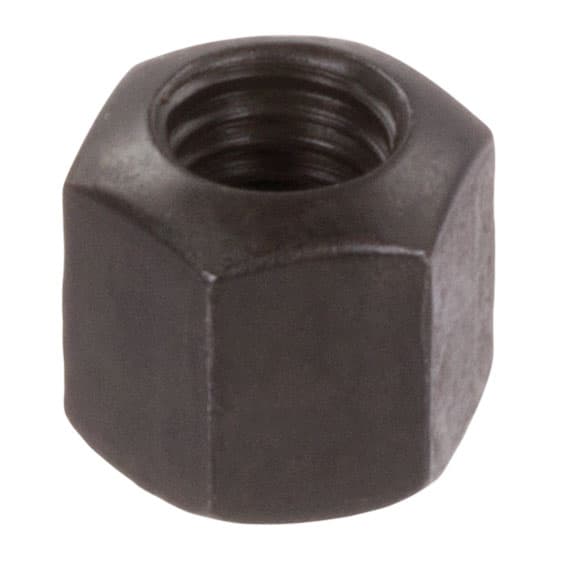

Hexagon nut DIN 6330 steel strength 10 thread M10 right hand
Manufacturer part no. 65321000
$1.13≈ 0.98 €
In stock — 10 unitslead time 14 d
Estimated landed cost
| Item | €0.98 |
|---|---|
| Shipping | €15.00 |
| VAT (20%) | €3.20 |
| Total delivered | €19.18 |
Estimate for a single item delivered to mainland France, shipped from outside the EU: customs duty and clearance fees may apply and are charged by the carrier.
Datasheets & documents
Specifications (automatically extracted)
Mechanical
| Weight | 20 g |
Other characteristics
| Length | 15 mm |
| Wrench size | 16 mm |
| Material | Tempered steel (strength class 10) |
| Surface | Blank |
| Thread size | M 10 mm |
Description

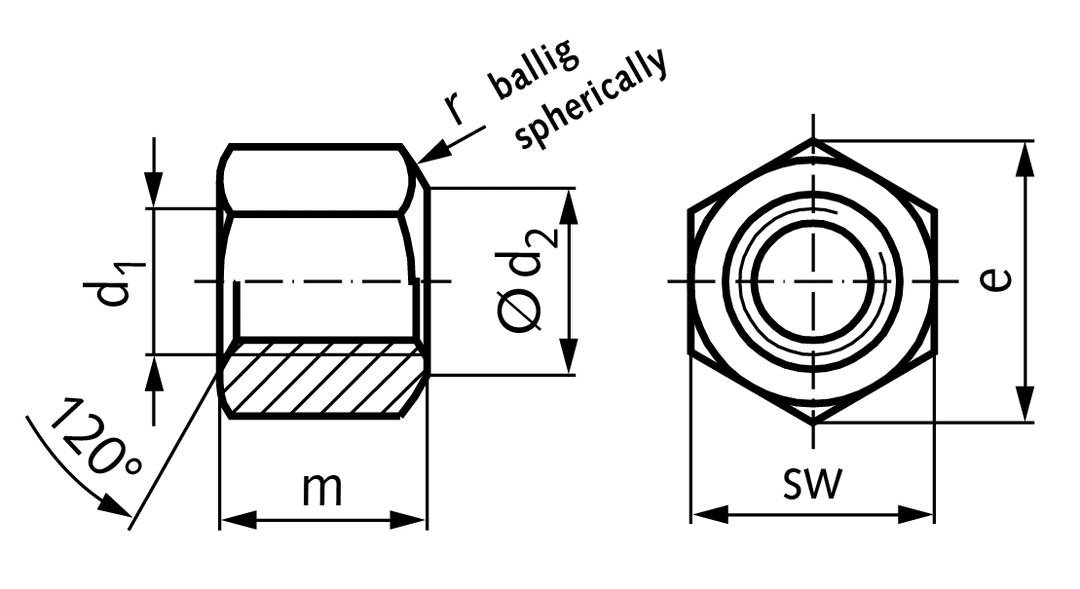

Material: Heat-treated steel, tensile strength 10, shape B. With round contact surface at one end. The round end matches the spherical washers DIN 6319. This combination can be used to compensate bearing displacement.
