MÄDLERMÄDLER· Fastening Elements

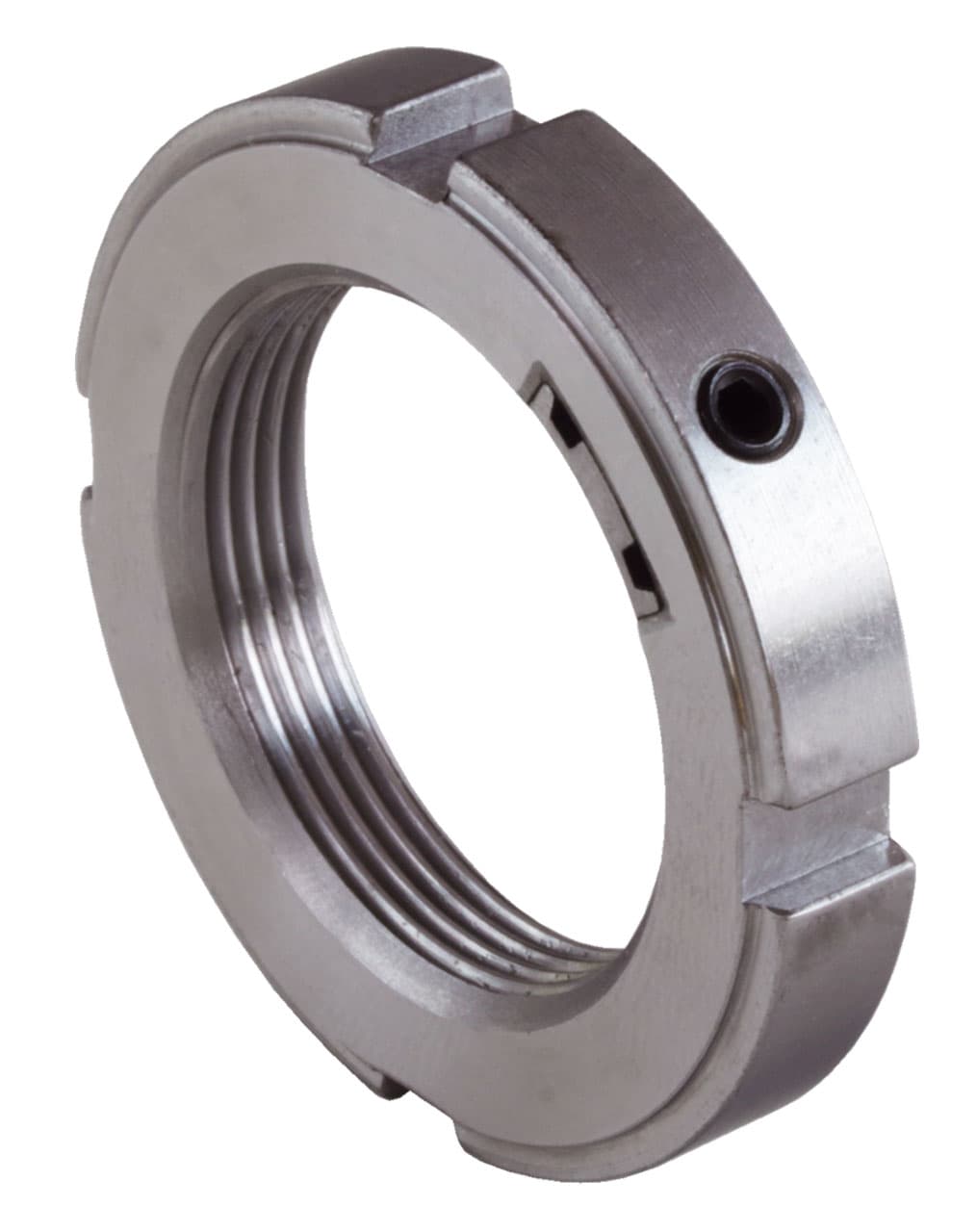

Locknut with integral locking device KMK 0 M10x0.75
Manufacturer part no. 65353000
$23.93≈ 20.78 €
In stock — 9 unitslead time 14 d
Estimated landed cost
| Item | €20.78 |
|---|---|
| Shipping | €15.00 |
| VAT (20%) | €7.16 |
| Total delivered | €42.94 |
Estimate for a single item delivered to mainland France, shipped from outside the EU: customs duty and clearance fees may apply and are charged by the carrier.
Datasheets & documents
Specifications (automatically extracted)
Mechanical
| Weight | 16 g |
Other characteristics
| Axial runout | 0.02 mm |
| Max torque of safety bolt | 4 Nm |
| Permissible axial load | 9.8 kN |
| Material | Steel |
| Surface | Blank |
| Thread size x pitch | M 10×0.75 mm |
| Type | KMK 0 |
Description
Material: Body of the nut from steel, min. strength 350 N/mm2. Reusable shaft nut with integrated locking device. Special feature of the shaft nut is the locking insert, integrated into the nut. This insert is threaded and thus does not cause any damage. The locking insert is pressed against the shaft thread with a locking screw and thus prevents the nut from turning.
