MÄDLERMÄDLER· Fastening Elements

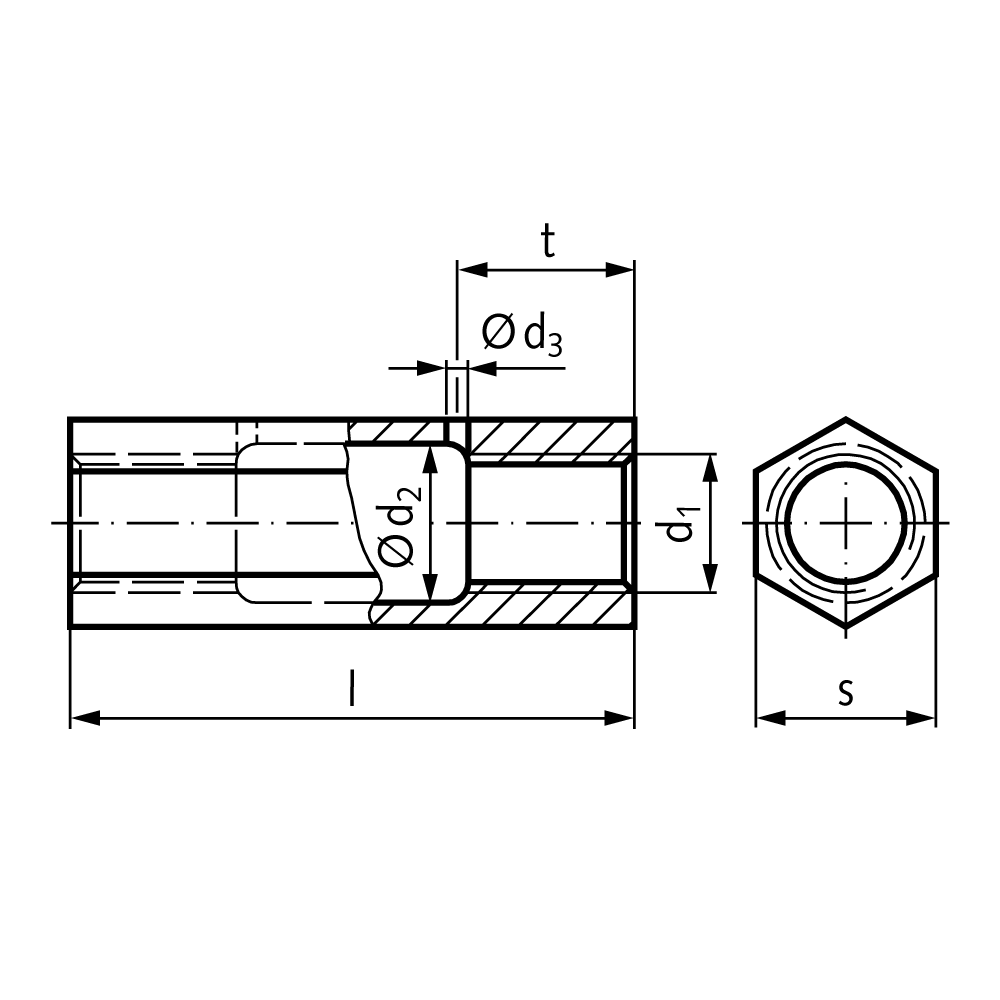

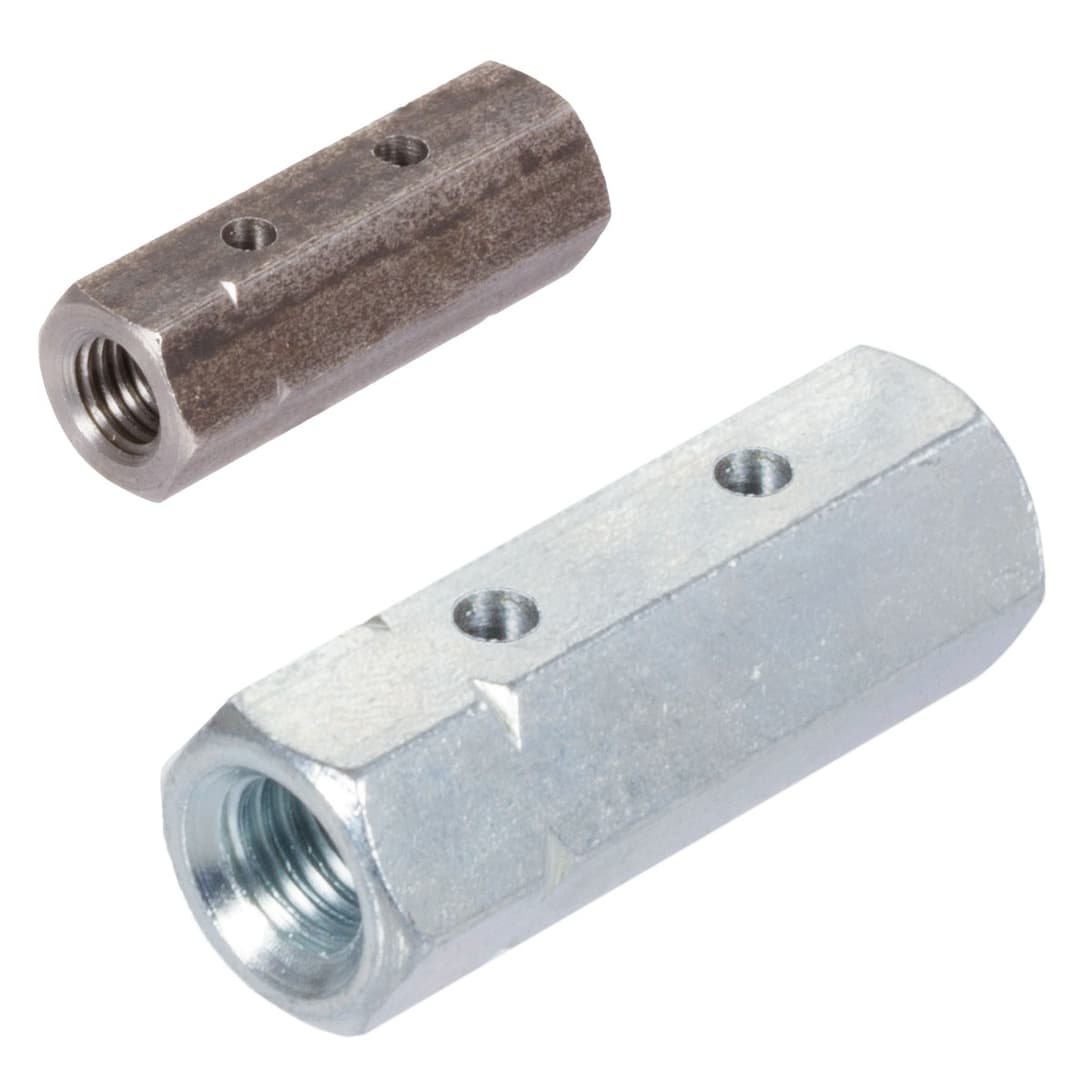

Turnbuckle similar DIN 1479 steel zinc-plated thread M16 length 75mm
Manufacturer part no. 65386600
$7.39≈ 6.42 €
In stock — 71 unitslead time 14 d
Estimated landed cost
| Item | €6.42 |
|---|---|
| Shipping | €15.00 |
| VAT (20%) | €4.28 |
| Total delivered | €25.70 |
Estimate for a single item delivered to mainland France, shipped from outside the EU: customs duty and clearance fees may apply and are charged by the carrier.
Datasheets & documents
Specifications (automatically extracted)
Mechanical
| Weight | 180 g |
Other characteristics
| Adjustability | 35 mm |
| Length | 75 mm |
| Min thread engagement | 22 mm |
| Wrench size | 24 mm |
| Material | Steel (A36) |
| Surface | Zinc-plated |
| Thread size | M 16 mm |
Description
Material: Steel C45, either untreated or zinc-plated. M6 to M16 with overlapping thread, from M20 middle part relieved. These turnbuckle nuts are supplied with cross-holes, according to DIN 1479, which serve to check the minimum thread engagement. *Threads: one side right-hand thread, other side left-hand thread.
