MÄDLERMÄDLER· Fastening Elements

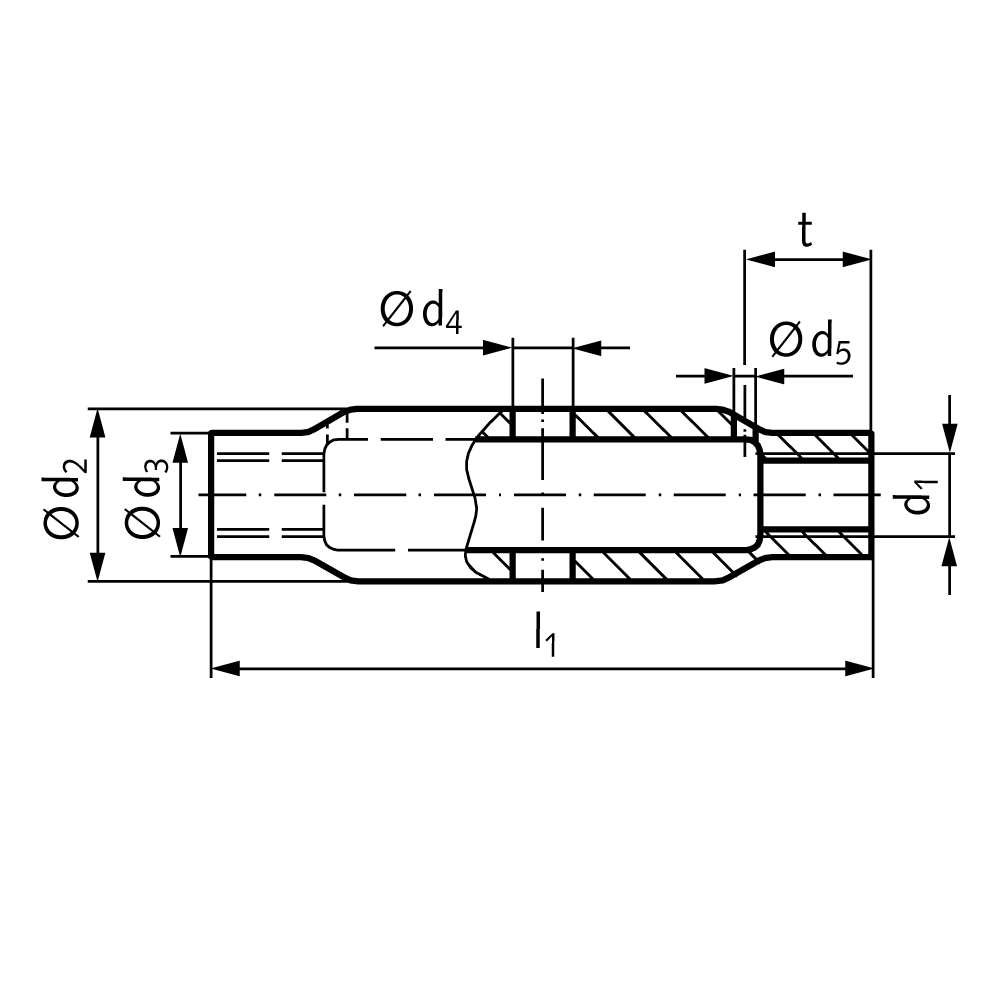

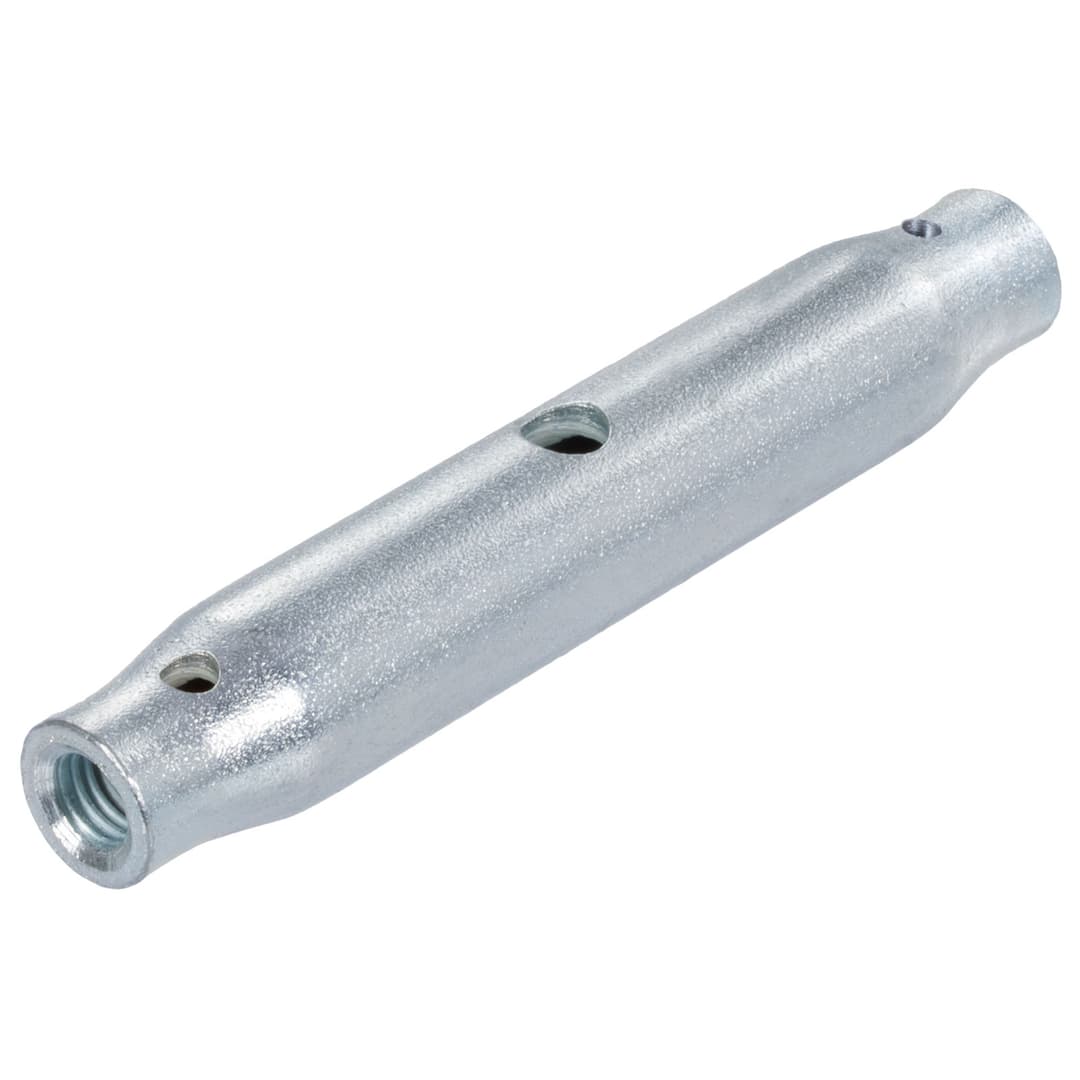

Turnbuckle similar DIN 1478 steel zinc-plated thread M24 length 255mm
Manufacturer part no. 65392400
$39.80≈ 34.56 €
In stock — 1 unitslead time 14 d
Estimated landed cost
| Item | €34.56 |
|---|---|
| Shipping | €15.00 |
| VAT (20%) | €9.91 |
| Total delivered | €59.47 |
Estimate for a single item delivered to mainland France, shipped from outside the EU: customs duty and clearance fees may apply and are charged by the carrier.
Datasheets & documents
Specifications (automatically extracted)
Mechanical
| Weight | 1.1 kg |
Other characteristics
| Adjustability | 180 mm |
| Length | 255 mm |
| Min thread engagement | 31 mm |
| Material | Steel (A36) |
| Surface | Zinc-plated |
| Thread size | M 24 mm |
Description
Material: Steel S235, galvanic zinc-plated. These turnbuckle nuts from seamless steel tube are supplied with cross-holes, according to DIN 1478, which serve to check the minimum thread engagement. * Threads: one side right-hand thread, other side left-hand thread.
