MÄDLERMÄDLER· Fastening Elements

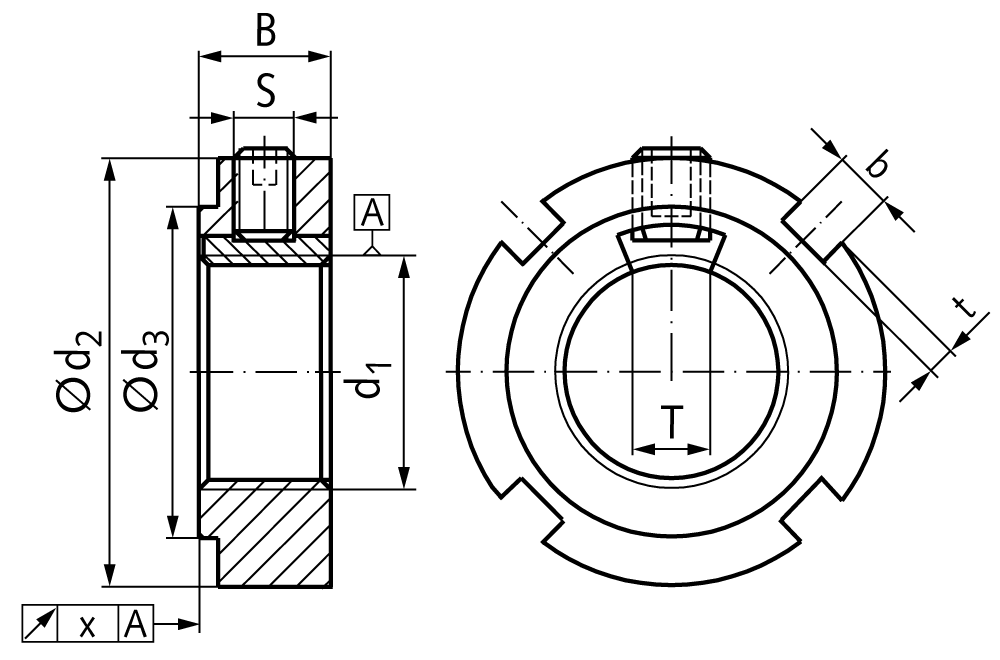

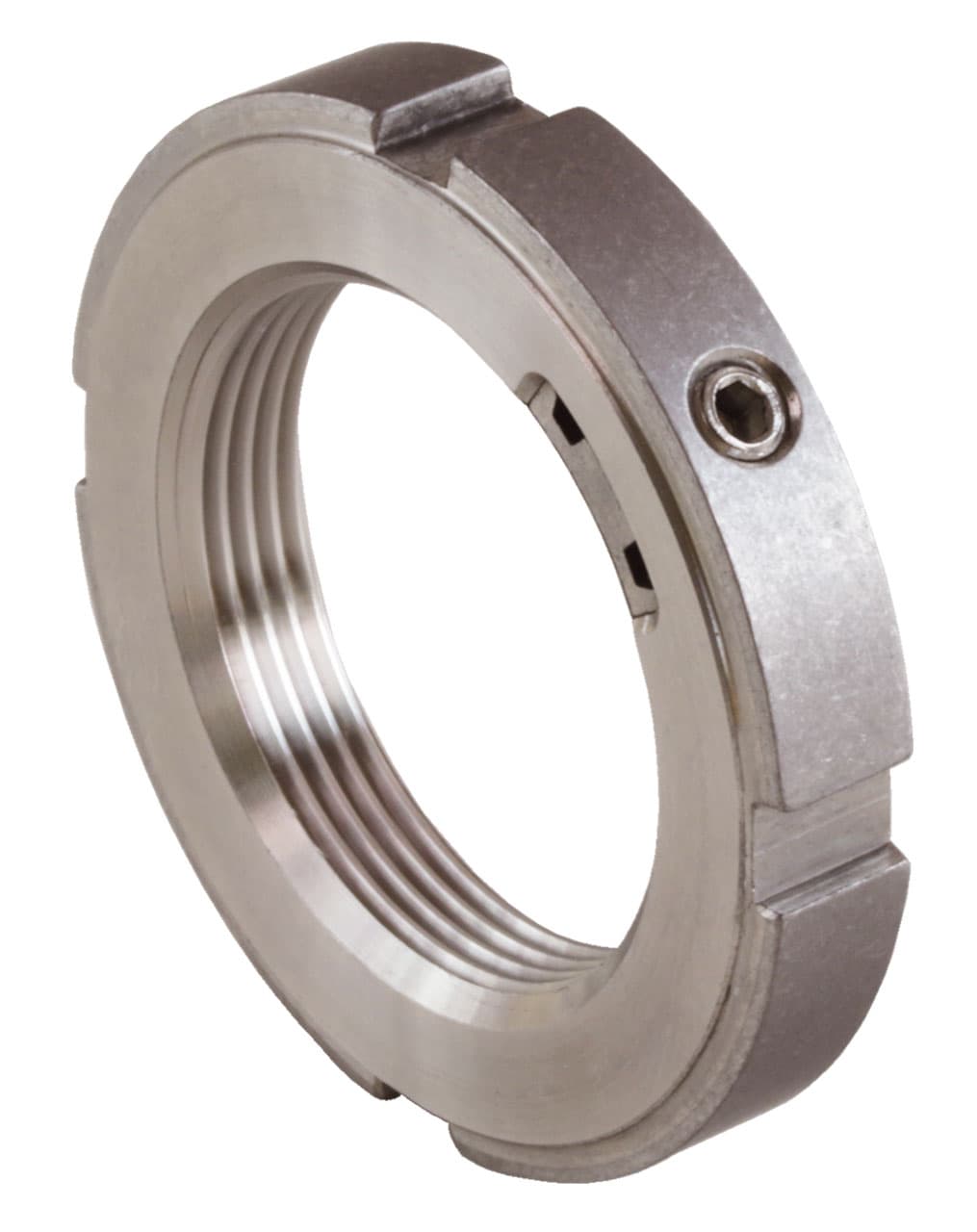

Locknut KMK-R material 1.4301 (AISI304) with integral locking device Größe 4 M20x1
Manufacturer part no. 65398540
$39.62≈ 34.41 €
In stock — 1 unitslead time 14 d
Estimated landed cost
| Item | €34.41 |
|---|---|
| Shipping | €15.00 |
| VAT (20%) | €9.88 |
| Total delivered | €59.29 |
Estimate for a single item delivered to mainland France, shipped from outside the EU: customs duty and clearance fees may apply and are charged by the carrier.
Datasheets & documents
Specifications (automatically extracted)
Mechanical
| Weight | 30 g |
Other characteristics
| Axial runout | 0.02 mm |
| Max torque of safety bolt | 4 Nm |
| Permissible axial load | 24 kN |
| Material | Stainless steel (304) |
| Surface | Blank |
| Thread size x pitch | M 20×1 mm |
| Type | KMK 4 |
Description
Material: Body of the nut from stainless steel 1.4301 (AISI 304). Reusable shaft nut with integrated locking device. Special feature of the shaft nut is the locking insert, integrated into the nut. This insert is threaded and thus does not cause any damage. The locking insert is pressed against the shaft thread with a locking screw and thus prevents the nut from turning.
