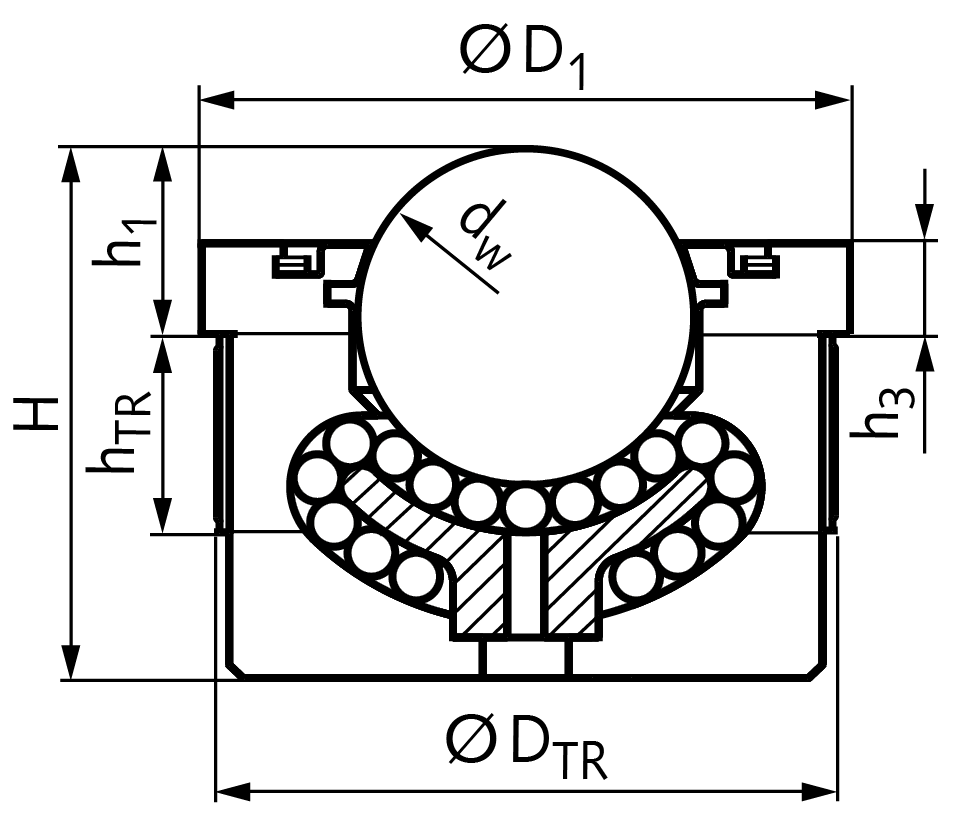

Ball transfer unit 368 size 25,4 total height 44mm housing steel with KTL “anti-oxide” electrophoretic coating
Manufacturer part no. 65436826
$151.08≈ 131.20 €
In stock — 1 unitslead time 14 d
Estimated landed cost
| Item | €131.20 |
|---|---|
| Shipping | €15.00 |
| VAT (20%) | €29.24 |
| Total delivered | €175.44 |
Estimate for a single item delivered to mainland France, shipped from outside the EU: customs duty and clearance fees may apply and are charged by the carrier.
Datasheets & documents
Specifications (automatically extracted)
Mechanical
| Weight | 700 g |
Other characteristics
| Load rating | 3 850 N |
| Outer diameter mounting surface | 50 mm |
| Outer diameter support surface | 55 mm |
| Overhang with ball | 15 mm |
| Size | 25.4 mm |
| Thickness of support surface | 8.6 mm |
| Total height | 44 mm |
| Material | Steel |
| Surface | Anti oxid finish (KTL) |
Description
Material: Housing: Steel, with KTL "Anti-Oxide" electrophoretic coating. Ball cup: Steel, case hardend. Balls: Steel 100Cr6, hardened. Heavy duty ball transfer unit for high load. High shock resistance. Very low friction. Orientation: Anyway. From size 25.4 with felt seal. With drain hole. Conveying speed max. 2m/sec. Temperature range -30°C to +160°C. * Bore size. Recommended bore tolerance: H9. Note: Due to unevenness of the running surface, there are often only three rollers carrying the weight. Therefore the chosen load rating should equal at least one third of the load. Max. distance of ball transfer units = edge length of the object divided by 2.5.
