MÄDLERMÄDLER· Cylinder Conveyor Rollers and Ball Transfer Units

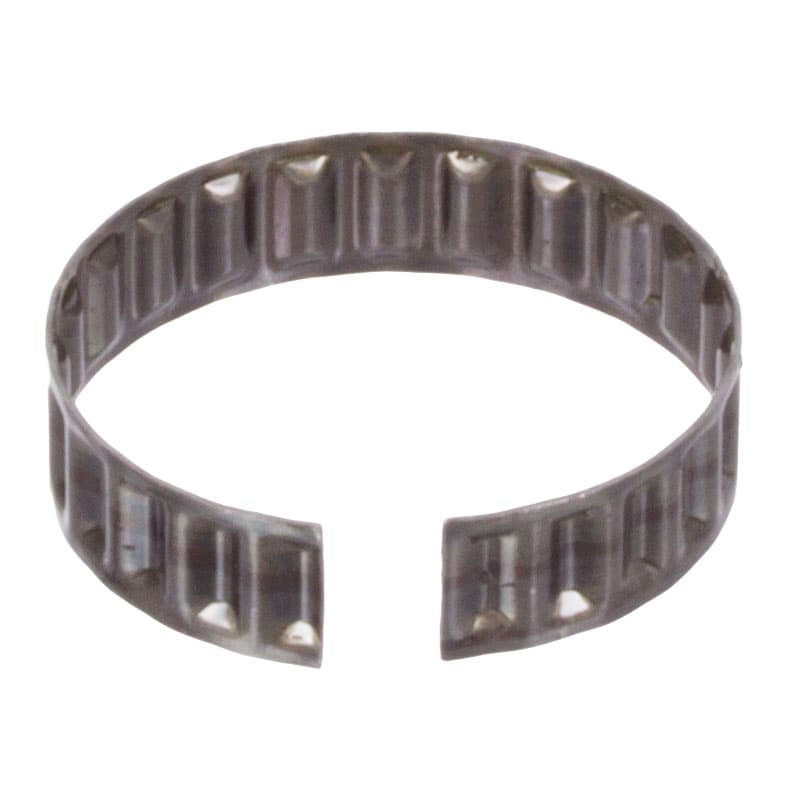

Tolerance ring 38x12mm for body diameter 36mm
Manufacturer part no. 65439022
$4.73≈ 4.11 €
In stock — 5 unitslead time 14 d
Estimated landed cost
| Item | €4.11 |
|---|---|
| Shipping | €15.00 |
| VAT (20%) | €3.82 |
| Total delivered | €22.93 |
Estimate for a single item delivered to mainland France, shipped from outside the EU: customs duty and clearance fees may apply and are charged by the carrier.
Datasheets & documents
Specifications (automatically extracted)
Mechanical
| Weight | 5.7 g |
| Dimensions | 38x12mm |
Other characteristics
| Suitable for ball transfer unit | 22 mm |
| Installation dimension | 37.7 + 0.2 mm |
| Material | Spring band steel |
| Surface | Blank |
Description

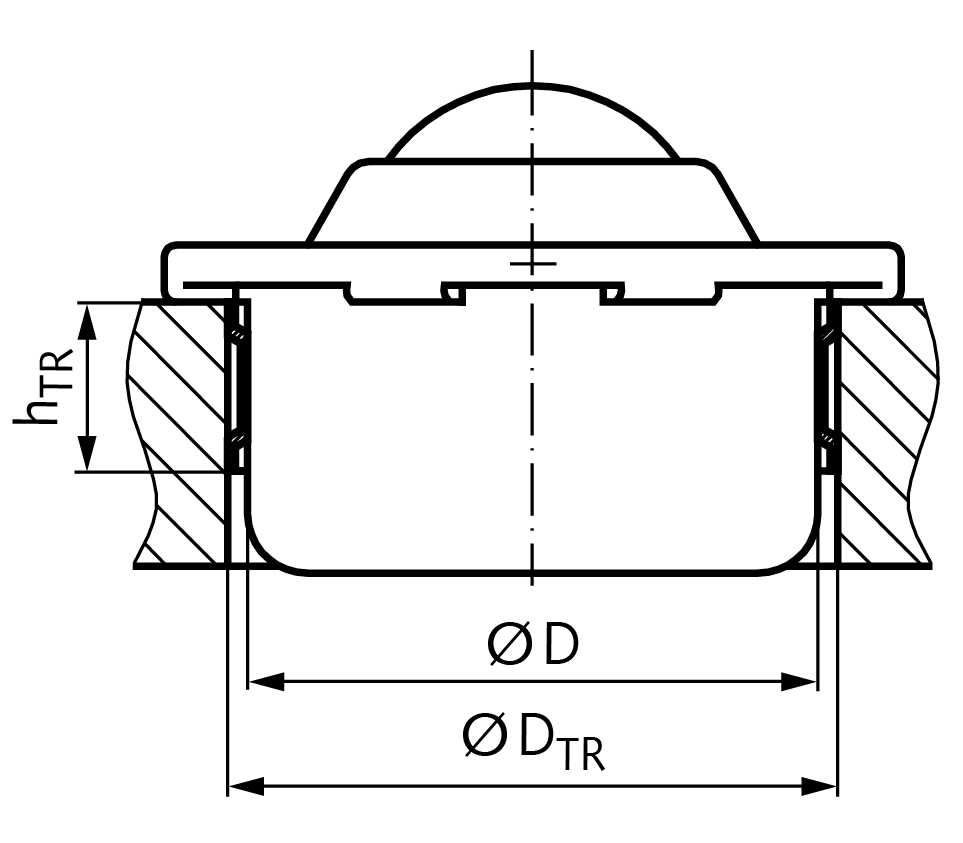

Material: Spring band steel. Matching ball transfer units with the same housing diameter D like the tolerance ring. The use of tolerance rings permits more generous tolerances in the mounting hole (dimension DTR). * Bore size. Recommended bore tolerance: H9.
