MÄDLERMÄDLER· Fastening Elements

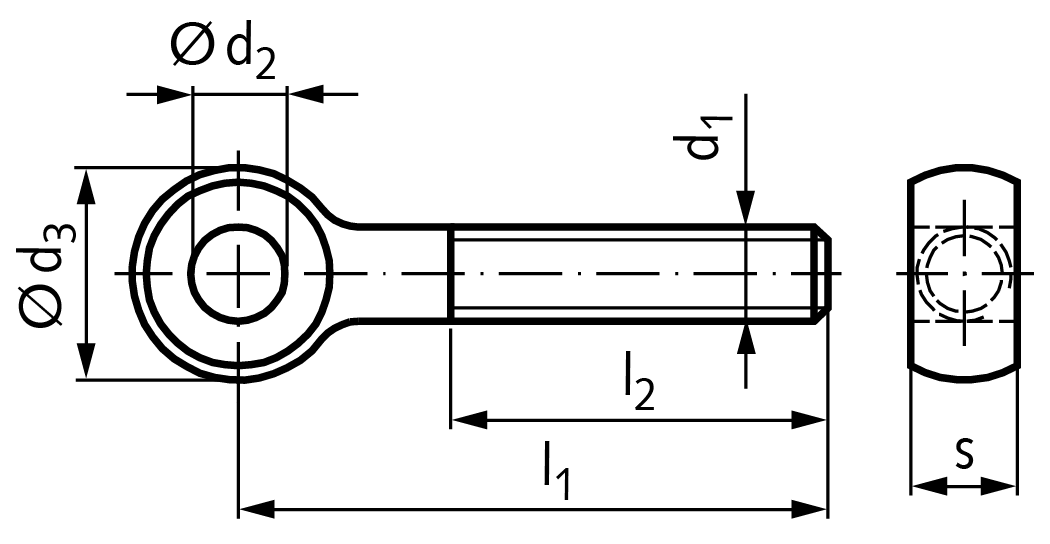

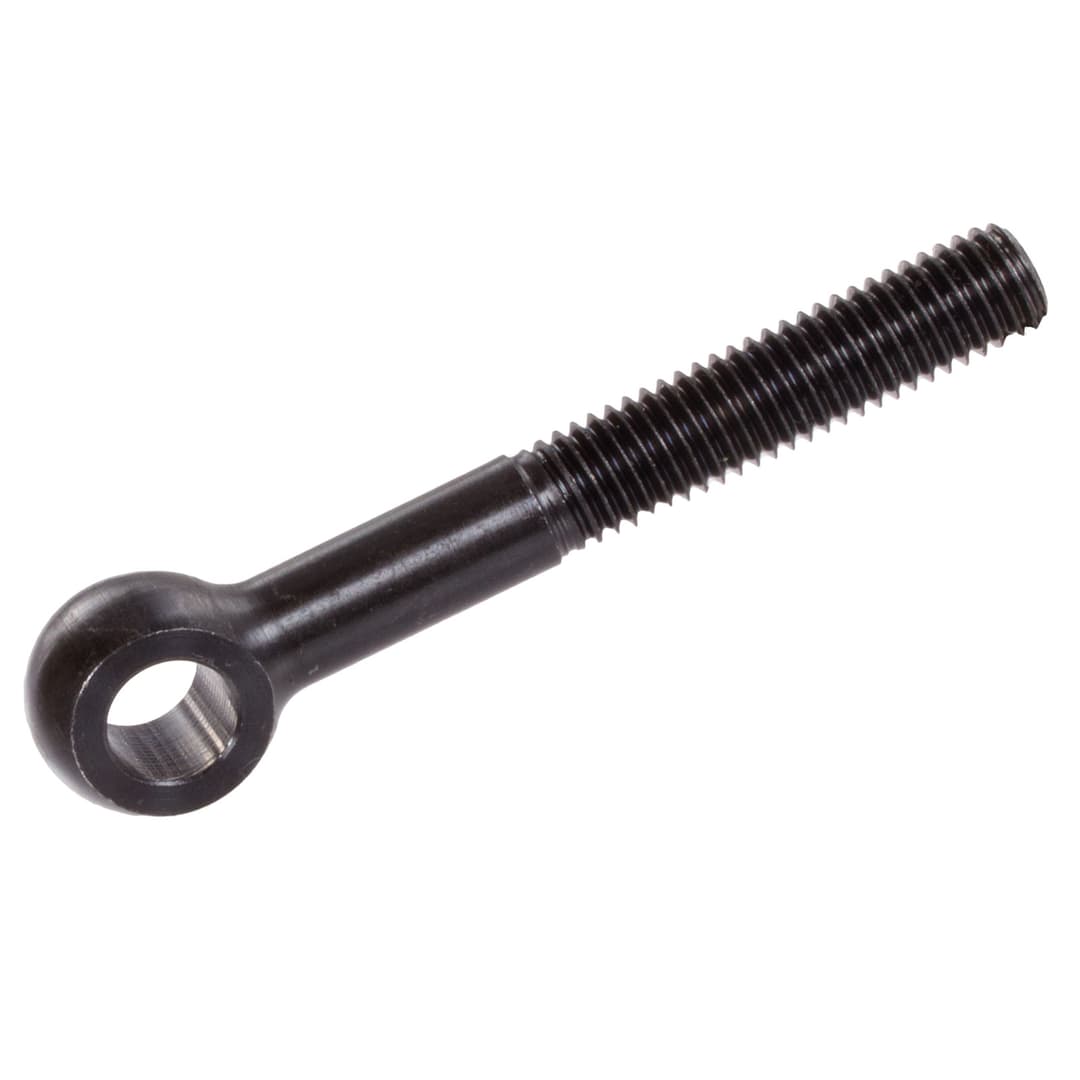

Swing bolt DIN 444 thread M20 x 63mm l1=160mm steel strength 5.8 black oxide finished
Manufacturer part no. 65443000
$57.12≈ 49.60 €
In stock — 1 unitslead time 14 d
Estimated landed cost
| Item | €49.60 |
|---|---|
| Shipping | €15.00 |
| VAT (20%) | €12.92 |
| Total delivered | €77.52 |
Estimate for a single item delivered to mainland France, shipped from outside the EU: customs duty and clearance fees may apply and are charged by the carrier.
Datasheets & documents
Specifications (automatically extracted)
Mechanical
| Weight | 438 g |
Other characteristics
| Bore diameter | 18 mm |
| Thread length | 63 mm |
| Material | Steel (5.8) |
| Surface | Black oxide finish |
| Thread size | M 20 mm |
Description
Material: Steel, tensile strength 5.8, black oxide finish. Precision made, thread rolled. Steel version with higher strength than DIN. The thread lentgh is larger than DIN.
