Ball-ended thrust screw steel 12.9 black oxide finished type A M20 x 40mm long
Manufacturer part no. 65452040
$28.68≈ 24.91 €
In stock — 2 unitslead time 14 d
Estimated landed cost
| Item | €24.91 |
|---|---|
| Shipping | €15.00 |
| VAT (20%) | €7.98 |
| Total delivered | €47.89 |
Estimate for a single item delivered to mainland France, shipped from outside the EU: customs duty and clearance fees may apply and are charged by the carrier.
Datasheets & documents
Specifications (automatically extracted)
Mechanical
| Weight | 72 g |
Other characteristics
| Ball diameter | 15 mm |
| Max load | 90 kN |
| Nominal length | 40 mm |
| Total length shape a | 44.2 mm |
| Wrench size | 10 mm |
| Material | Steel |
| Shape | A |
| Surface | Black oxide finish |
| Thread size | M 20 mm |
Description

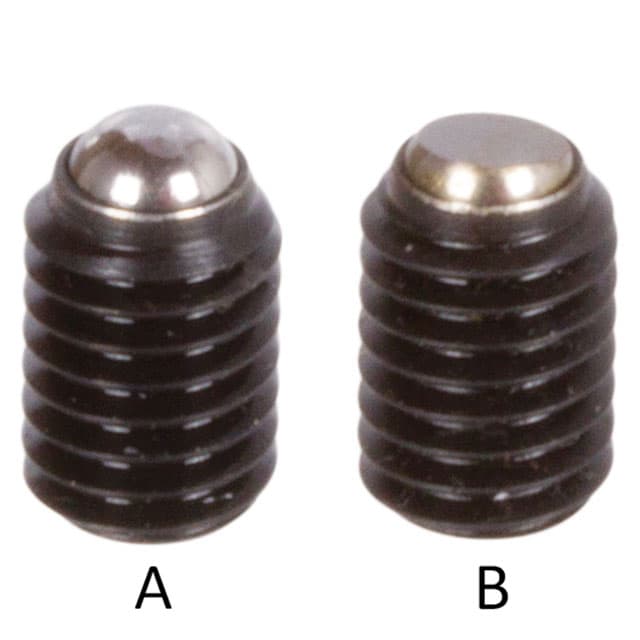

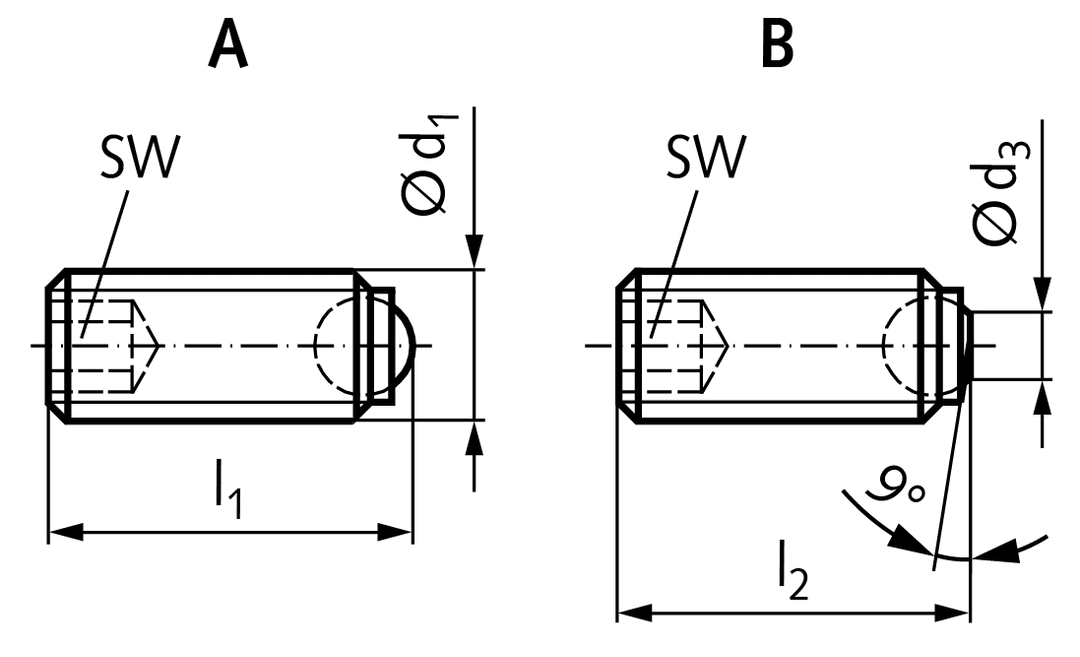

Material: Screw: Steel tensile strength 12.9, black oxide finish. Ball: Steel, hardened, bright. Type A: with full ball. Type B: with flat-faced ball, to clamp surfaces that are not exactly parallel. Temperature range: -60ºC to +350ºC.
