MÄDLERMÄDLER· Fastening Elements

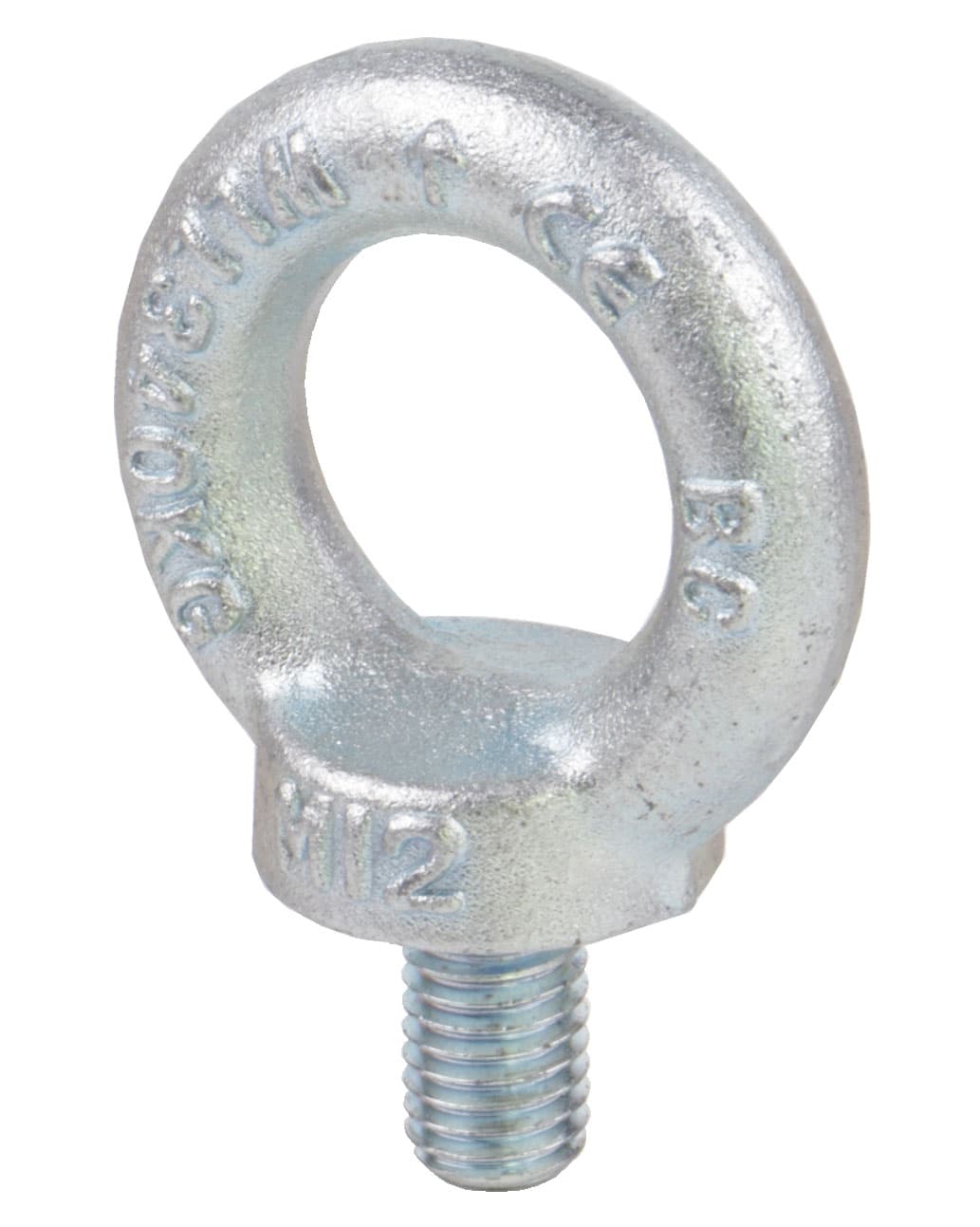

Lifting eye bolt DIN 580 M12 x 20.5 steel C15E galvanized === user information at www.maedler.de in the section Downloads ===
Manufacturer part no. 65458112
$4.28≈ 3.72 €
In stock — 17 unitslead time 14 d
Estimated landed cost
| Item | €3.72 |
|---|---|
| Shipping | €15.00 |
| VAT (20%) | €3.74 |
| Total delivered | €22.46 |
Estimate for a single item delivered to mainland France, shipped from outside the EU: customs duty and clearance fees may apply and are charged by the carrier.
Datasheets & documents
Specifications (automatically extracted)
Mechanical
| Weight | 180 g |
Other characteristics
| Inner diameter | 30 mm |
| Max load | 340 kg |
| Thread length | 20.5 mm |
| Material | Steel (1015) |
| Surface | Zinc-plated |
| Thread size | M 12 mm |
Description
Material: Steel C15E zinc-plated. For lifting and transport activities. For security areas and high requirement. For permanent attachment to transport parts. With CE marking and user information. Temperature range: -20°C to +200°C.
