MÄDLERMÄDLER· Fastening Elements
Lifting eye bolt M8 x 13 stainless steel A4 casted
Manufacturer part no. 65458508
$4.76≈ 4.13 €
In stock — 1 unitslead time 14 d
Estimated landed cost
| Item | €4.13 |
|---|---|
| Shipping | €15.00 |
| VAT (20%) | €3.83 |
| Total delivered | €22.96 |
Estimate for a single item delivered to mainland France, shipped from outside the EU: customs duty and clearance fees may apply and are charged by the carrier.
Datasheets & documents
Specifications (automatically extracted)

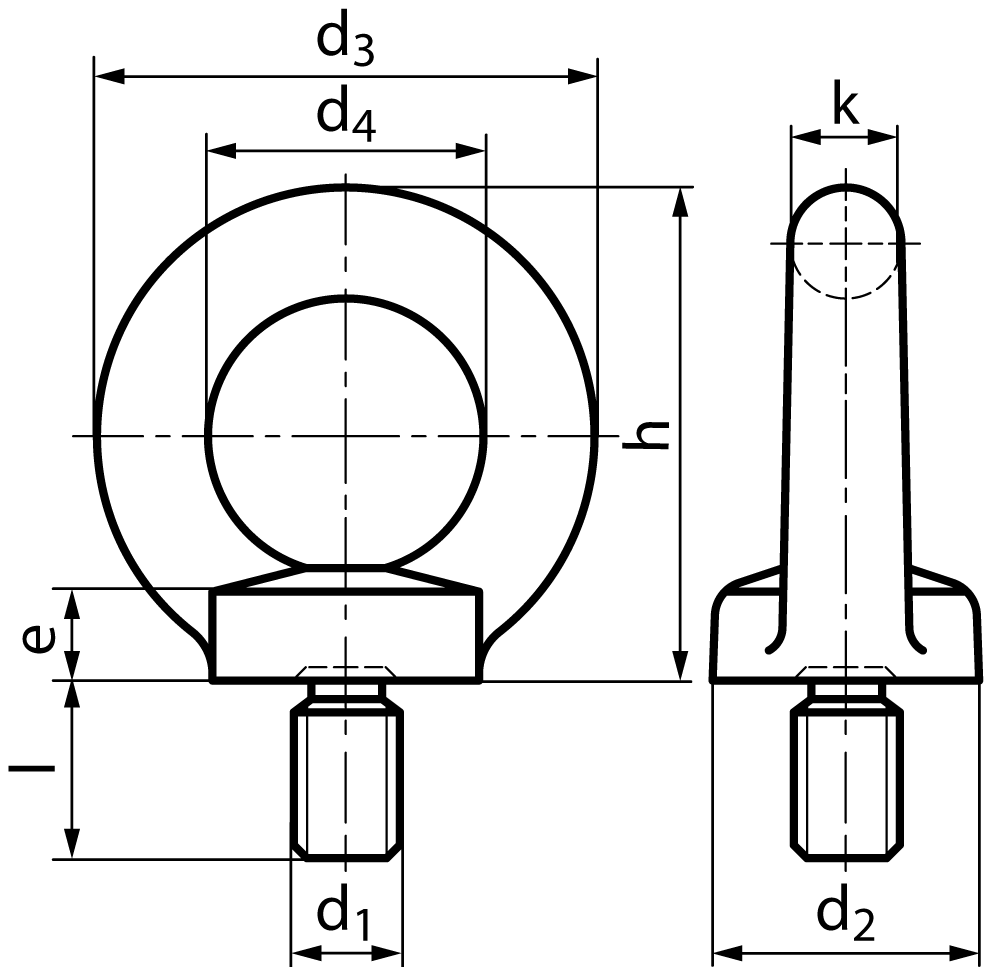

Mechanical
| Weight | 60 g |
Other characteristics
| Inner diamter approx | 20 mm |
| Outer diameter approx | 36 mm |
| Thread length | 13 mm |
| Width approx | 20 mm |
| Material | Stainless steel (316) casted |
| Surface | Blank |
| Thread size | M 8 mm |
Description
Material: Stainless steel A2 or stainless steel A4, cast, polished. Cost-effective version for many fastening applications, for example in household and garden for light tensioning. Not permitted as lifting device or in safety-relevant areas. Temperature range: -20°C to +200°C. Note: These ring bolts are not according to DIN 580. The load capacity is not like DIN. So, theses parts may only be used for light loads in responsibility of the customer, and never for safety-relevant applications. Depending on the casting company, these parts are marked with the size of thread and / or the manufacturer symbol.
