MÄDLERMÄDLER· Fastening Elements

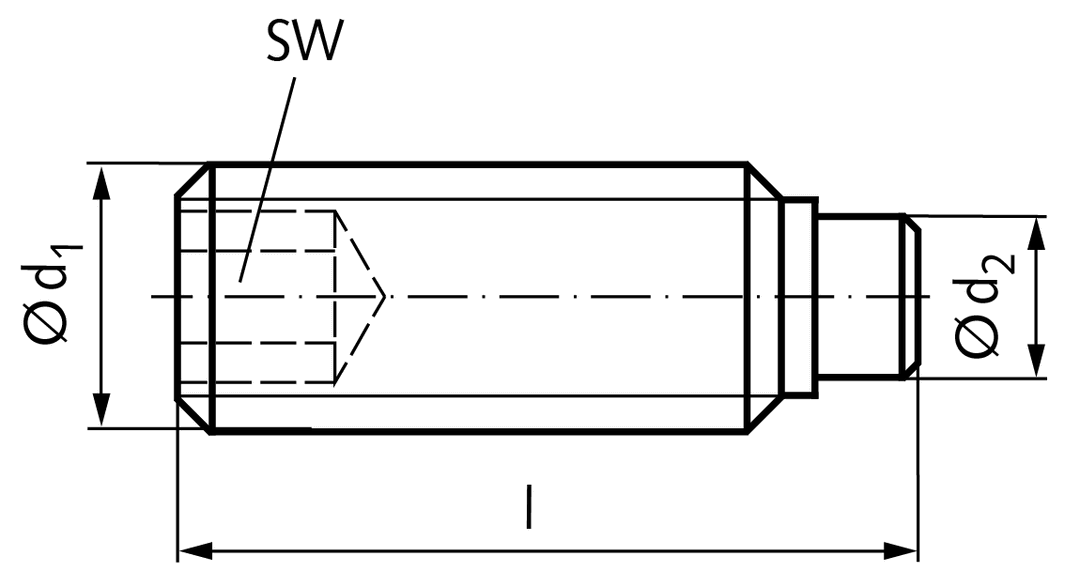

Thrust screw with brass bolt M6 x 11.5 steel strength 12.9 black oxide finished
Manufacturer part no. 65460611
$5.67≈ 4.92 €
In stock — 2 unitslead time 14 d
Estimated landed cost
| Item | €4.92 |
|---|---|
| Shipping | €15.00 |
| VAT (20%) | €3.98 |
| Total delivered | €23.90 |
Estimate for a single item delivered to mainland France, shipped from outside the EU: customs duty and clearance fees may apply and are charged by the carrier.
Datasheets & documents
Specifications (automatically extracted)
Mechanical
| Weight | 1.7 g |
Other characteristics
| Bolt diameter | 4 mm |
| Length | 11.5 mm |
| Wrench size | 3 mm |
| Material | Steel (12.9) / Brass |
| Surface | Black oxide finish |
| Thread size | M 6 mm |
Description
Material: Screw: Tensile strength 12.9, black oxide finish. Bolt: Brass Note: Brass bolt press-fitted. Used for gentle pressing-in or clamping of threaded spindles, axles, shafts and surface treated parts. Temperature range: -60°C to +350°C.
