MÄDLERMÄDLER· Fastening Elements

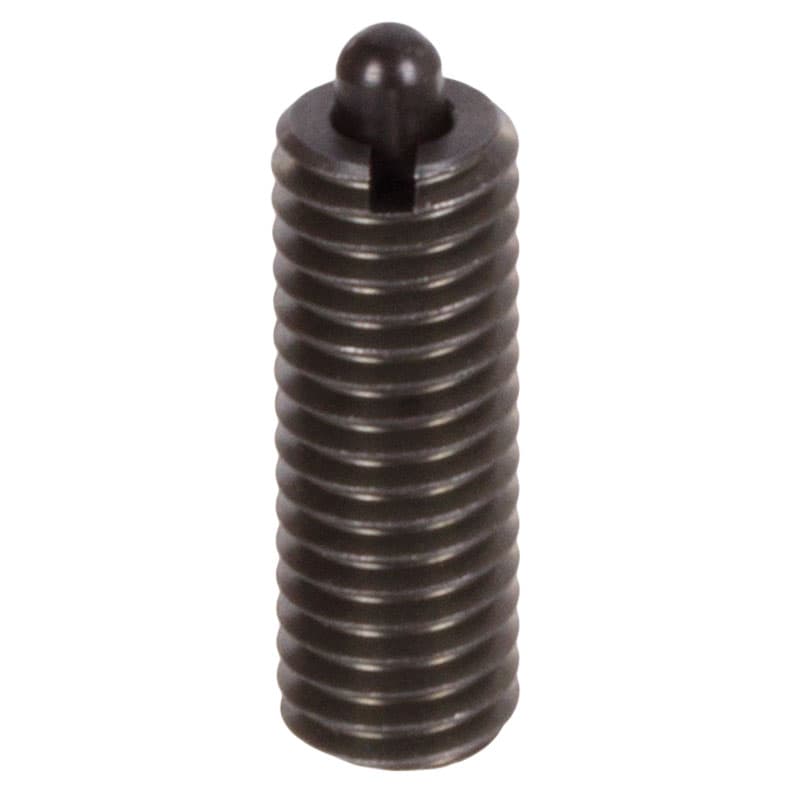

Spring plunger M12 type A with bolt and hexagon socket steel black oxided
Manufacturer part no. 65466200
$9.27≈ 8.05 €
In stock — 10 unitslead time 14 d
Estimated landed cost
| Item | €8.05 |
|---|---|
| Shipping | €15.00 |
| VAT (20%) | €4.61 |
| Total delivered | €27.66 |
Estimate for a single item delivered to mainland France, shipped from outside the EU: customs duty and clearance fees may apply and are charged by the carrier.
Datasheets & documents
Specifications (automatically extracted)
Mechanical
| Weight | 16 g |
Other characteristics
| Bolt diameter | 6 mm |
| Length | 28 mm |
| Overhang of bolt | 4 mm |
| Spring load end | 53 N |
| Spring load inital | 12 N |
| Wrench size | 4 mm |
| Material | Steel |
| Surface | Black oxide finish |
| Thread size | M 12 mm |
Description
Material: Body: Free cutting steel, black oxide finish. Bolt: Steel, hardened. Spring: Stainless steel. Standard spring tension. Note: Used for fixation or as device to press something in or push it out. The spring plungers can be mounted and demounted using the internal hexagon or the slot. Temperature range: -40°C to +250°C. *statistical average
