MÄDLERMÄDLER· Fastening Elements
Spring plunger M10 type P with ball and slot plunger and ball POM
Manufacturer part no. 65473000
$4.79≈ 4.16 €
In stock — 10 unitslead time 14 d
Estimated landed cost
| Item | €4.16 |
|---|---|
| Shipping | €15.00 |
| VAT (20%) | €3.83 |
| Total delivered | €22.99 |
Estimate for a single item delivered to mainland France, shipped from outside the EU: customs duty and clearance fees may apply and are charged by the carrier.
Datasheets & documents

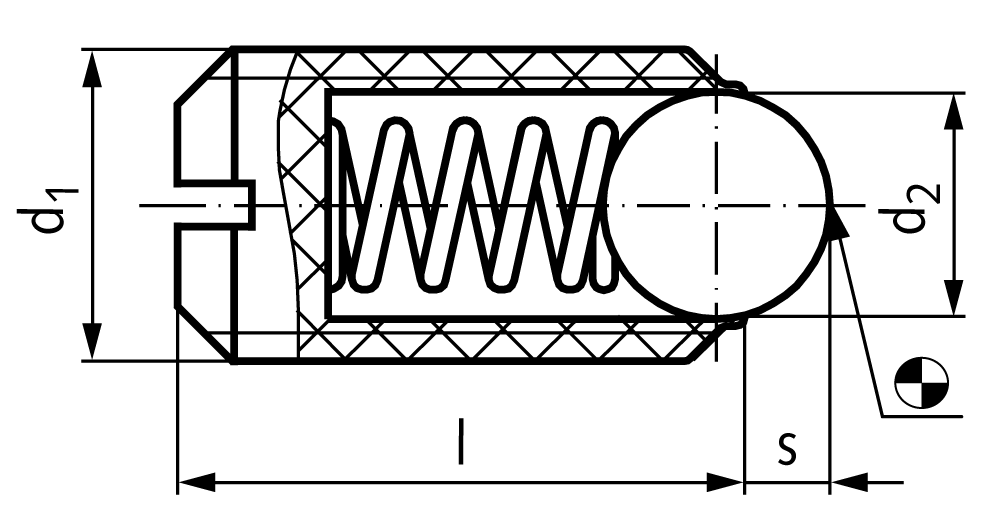

Specifications (automatically extracted)
Mechanical
| Weight | 3 g |
Other characteristics
| Ball diameter | 6 mm |
| Length | 19 mm |
| Overhang of the ball | 2 mm |
| Spring load end | 45 N |
| Spring load inital | 20 N |
| Material | POM/Stainless steel |
| Surface | Blank |
| Thread size | M 10 mm |
| Version | P |
Description

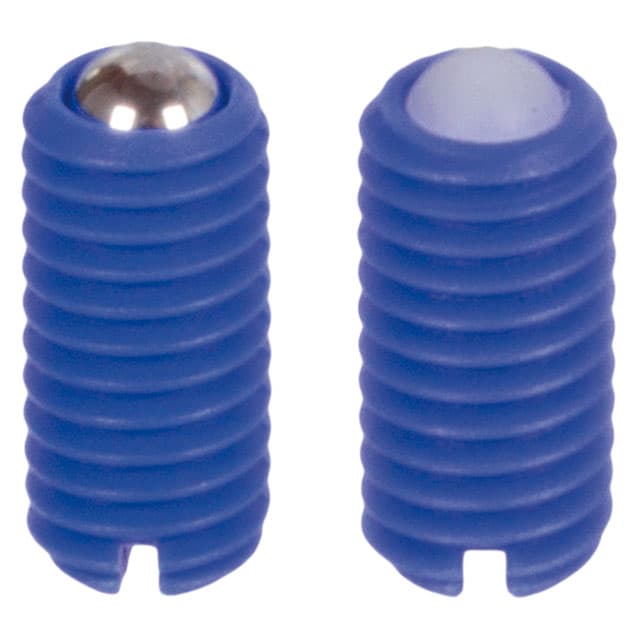

Material: Body: POM, blue. Ball made from hardened stainless steel or of POM, white. Spring: Stainless steel Type N: Ball made from stainless steel Type P: Ball made from POM Note: These parts are used in applications where, e.g., electrical conductivity is not desired or in aggressive environments. Temperature range -30°C to +50°C. *statistical average
