MÄDLERMÄDLER· Fastening Elements

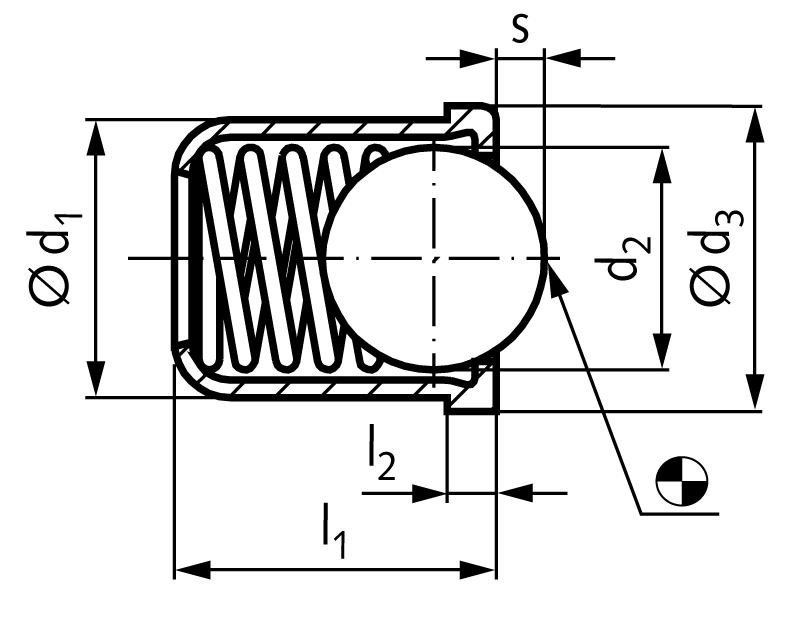

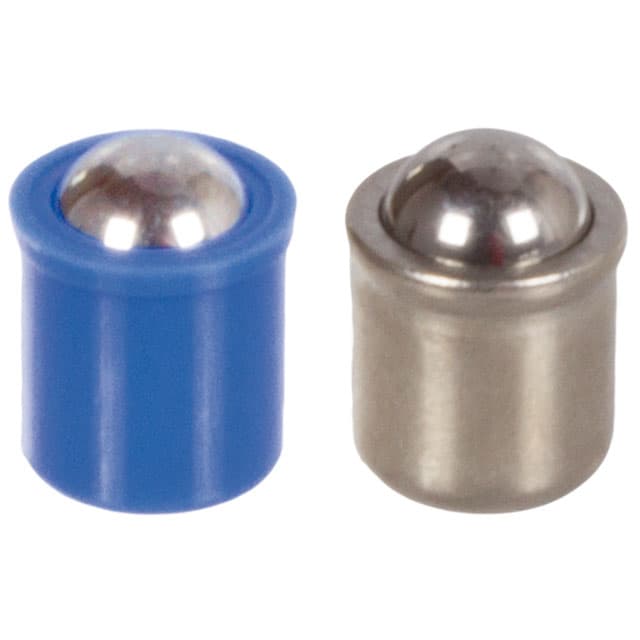

Spring plunger d1=3mm type GP smooth with collar plunger POM ball stainless steel
Manufacturer part no. 65478403
$1.52≈ 1.32 €
In stock — 1 unitslead time 14 d
Estimated landed cost
| Item | €1.32 |
|---|---|
| Shipping | €15.00 |
| VAT (20%) | €3.26 |
| Total delivered | €19.58 |
Estimate for a single item delivered to mainland France, shipped from outside the EU: customs duty and clearance fees may apply and are charged by the carrier.
Datasheets & documents
Specifications (automatically extracted)
Mechanical
| Weight | 0.09 g |
Other characteristics
| Ball diameter | 2.38 mm |
| Flange diameter | 3.5 mm |
| Flange length | 0.6 mm |
| Length | 4 mm |
| Outer diameter d1 0 08 0 | 3 mm |
| Overhang of ball | 0.55 mm |
| Spring load end | 3.5 N |
| Spring load inital | 1.7 N |
| Material | POM/Stainless steel |
| Surface | Blank |
| Version | GP |
Description
Material: Type GN: Body, ball and spring stainless steel. Type GP: Body: POM. Ball and spring: Stainless steel. Note: Spring plungers are used for fixation or as device to press something in or push it out. Temperature range: GN: -40°C to +250°C. GP: -30°C to +50°C. *statistical average
