MÄDLERMÄDLER· Fastening Elements
Ball-ended thrust screw stainless steel type A-N M5 x 8mm
Manufacturer part no. 65490508
$7.34≈ 6.37 €
In stock — 1 unitslead time 14 d
Estimated landed cost
| Item | €6.37 |
|---|---|
| Shipping | €15.00 |
| VAT (20%) | €4.27 |
| Total delivered | €25.64 |
Estimate for a single item delivered to mainland France, shipped from outside the EU: customs duty and clearance fees may apply and are charged by the carrier.
Datasheets & documents
Specifications (automatically extracted)
Mechanical
| Weight | 0.8 g |
Other characteristics
| Ball diameter | 3 mm |
| Max load | 2.25 kN |
| Nominal length | 8 mm |
| Total length shape a | 8 mm |
| Wrench size | 2.5 mm |
| Material | Stainless steel |
| Shape | A-N |
| Surface | Blank |
| Thread size | M 5 mm |
Description

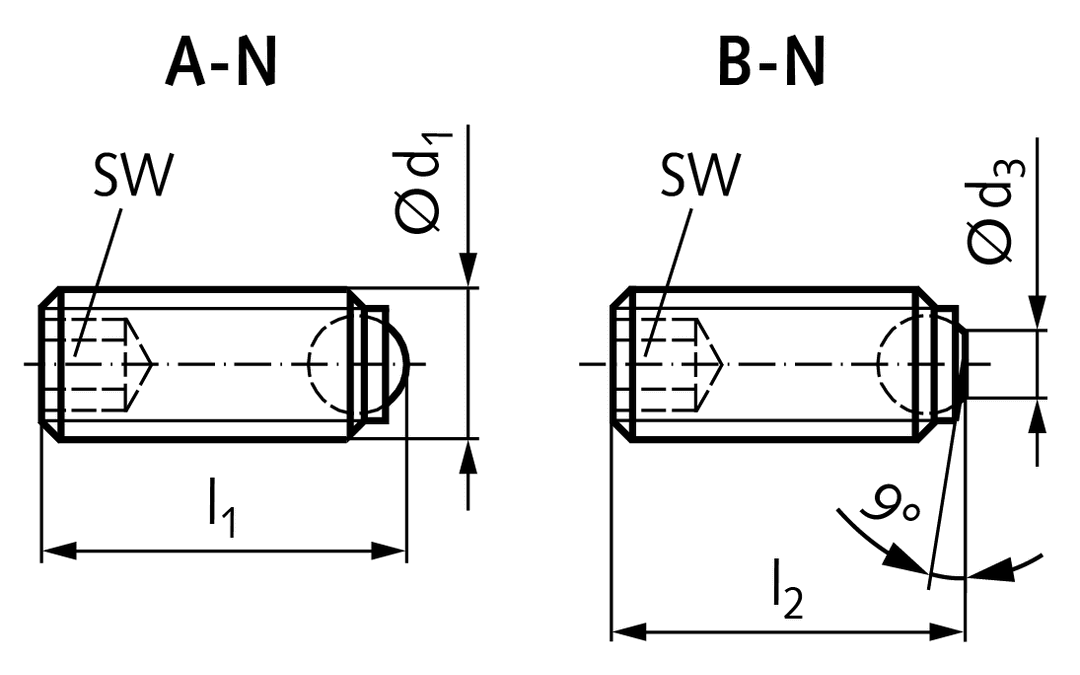

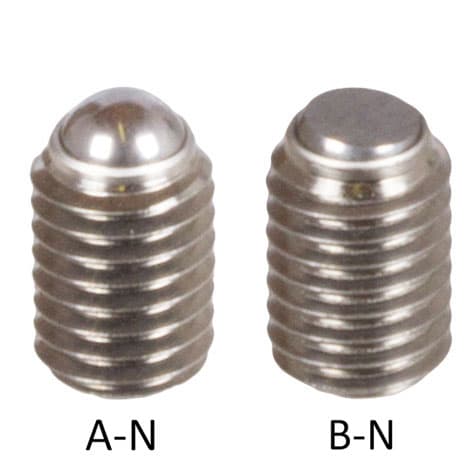

Material: Screw: Stainless steel 1.4305 (AISI 303). Ball: Stainless steel, hardened. Type A-N: with full ball. Type B-N: with flat-faced ball, to clamp surfaces that are not exactly parallel. Temperature range: -60ºC to +350ºC.
