MÄDLERMÄDLER· Fastening Elements

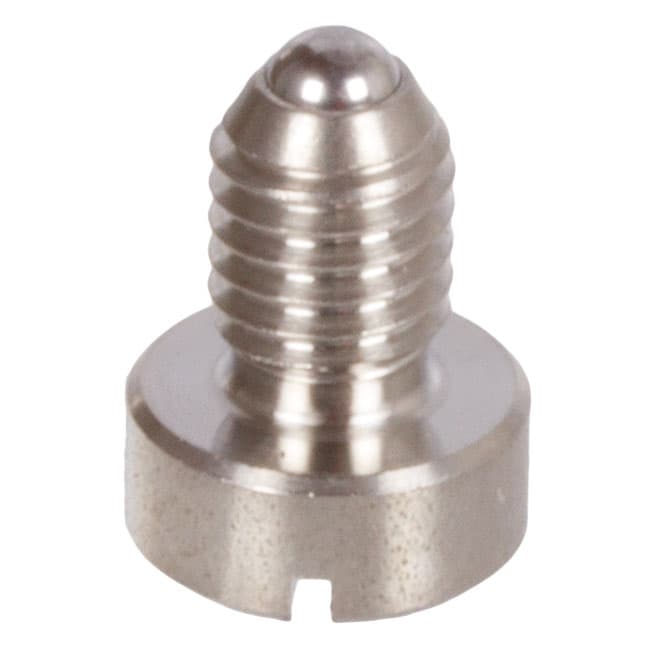

Spring plunger M5 type AN with ball and head stainless steel 1.4305
Manufacturer part no. 65499635
$10.16≈ 8.82 €
In stock — 2 unitslead time 14 d
Estimated landed cost
| Item | €8.82 |
|---|---|
| Shipping | €15.00 |
| VAT (20%) | €4.76 |
| Total delivered | €28.58 |
Estimate for a single item delivered to mainland France, shipped from outside the EU: customs duty and clearance fees may apply and are charged by the carrier.
Datasheets & documents

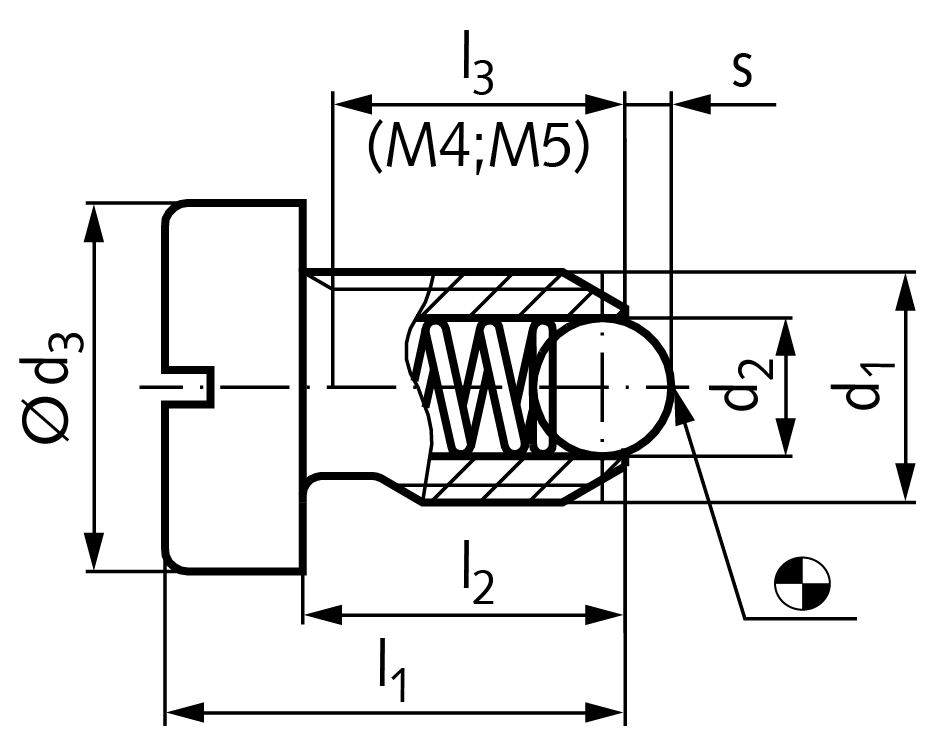

Specifications (automatically extracted)
Mechanical
| Weight | 2 g |
Other characteristics
| Ball diameter | 3 mm |
| Outer diameter | 8 mm |
| Overhang of ball | 0.9 mm |
| Spring force | 8 N |
| Thread length | 8.5 mm |
| Total length | 12.5 mm |
| Material | Stainless steel |
| Surface | Blank |
| Thread size | M 5 mm |
Description
Material type AN: Body: Stainless steel. Ball: Stainless steel. Spring: Stainless steel. Used for fixation and to press something in or push it out Temperature max. +250°C *statistical average
