MÄDLERMÄDLER· Fastening Elements

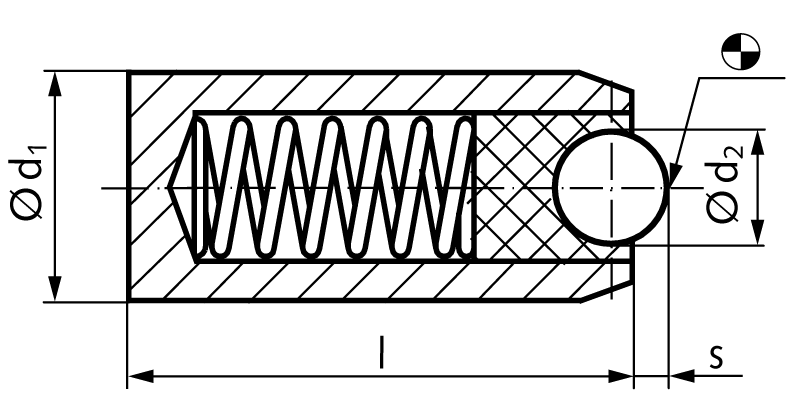

Spring plunger d1=8mm smooth without collar with moving ball stainless steel
Manufacturer part no. 65499708B
$8.88≈ 7.71 €
In stock — 2 unitslead time 14 d
Estimated landed cost
| Item | €7.71 |
|---|---|
| Shipping | €15.00 |
| VAT (20%) | €4.54 |
| Total delivered | €27.25 |
Estimate for a single item delivered to mainland France, shipped from outside the EU: customs duty and clearance fees may apply and are charged by the carrier.
Datasheets & documents
Specifications (automatically extracted)
Mechanical
| Weight | 4.3 g |
Other characteristics
| Ball diameter | 4.5 mm |
| Length | 18 mm |
| Outer diameter | 8 mm |
| Overhang of ball | 1.4 mm |
| Spring load end | 31.7 N |
| Spring load inital | 18.8 N |
| Material | Stainless steel |
| Surface | Blank |
Description
Material: Body and spring: Stainless steel. Ball: Stainless steel, hardened. Bearing: Made of plastic. Temperature range: -30ºC bis +90ºC. Spring plungers are used for fixation or as device to press something in or push it out. Due to the plastic bearing, the ball is electrically insulated and the rolling in it minimizes the wear on the counterpart.
