MÄDLERMÄDLER· Fastening Elements

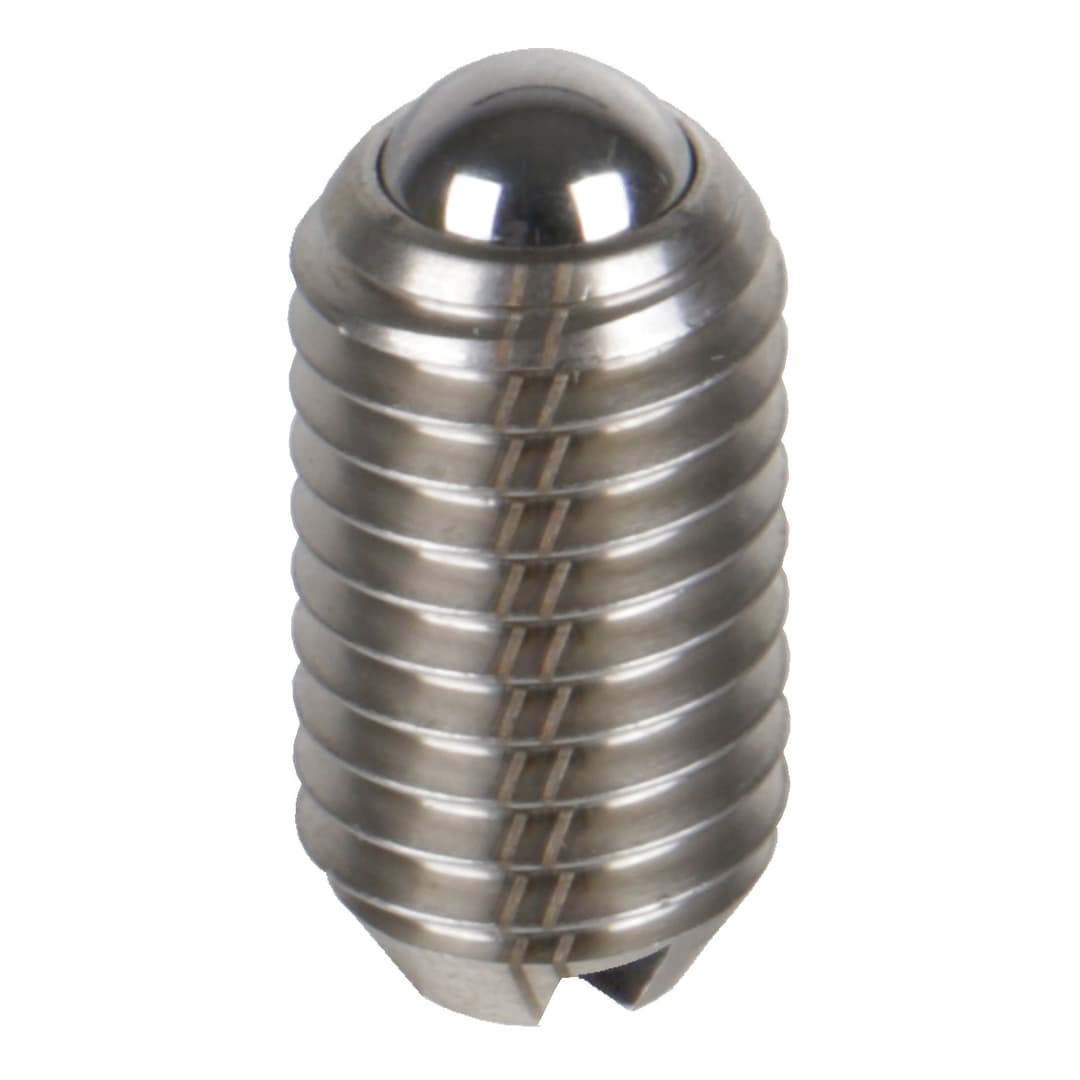

Spring plunger M6 with ball and slot strong tension stainless steel 1.4305
Manufacturer part no. 65499806
$6.25≈ 5.43 €
In stock — 2 unitslead time 14 d
Estimated landed cost
| Item | €5.43 |
|---|---|
| Shipping | €15.00 |
| VAT (20%) | €4.09 |
| Total delivered | €24.52 |
Estimate for a single item delivered to mainland France, shipped from outside the EU: customs duty and clearance fees may apply and are charged by the carrier.
Datasheets & documents
Specifications (automatically extracted)
Mechanical
| Weight | 1.5 g |
Other characteristics
| Ball diameter | 3.5 mm |
| Length | 14 mm |
| Overhang of ball | 1 mm |
| Spring force | 19 N |
| Material | Stainless steel |
| Surface | Blank |
| Thread size | M 6 mm |
Description
Material: Body: Stainless steel. Ball: Stainless steel, hardened. Spring: Stainless steel, strong spring tension. Temperature range: -40ºC to +250ºC.
