MÄDLERMÄDLER· Fastening Elements

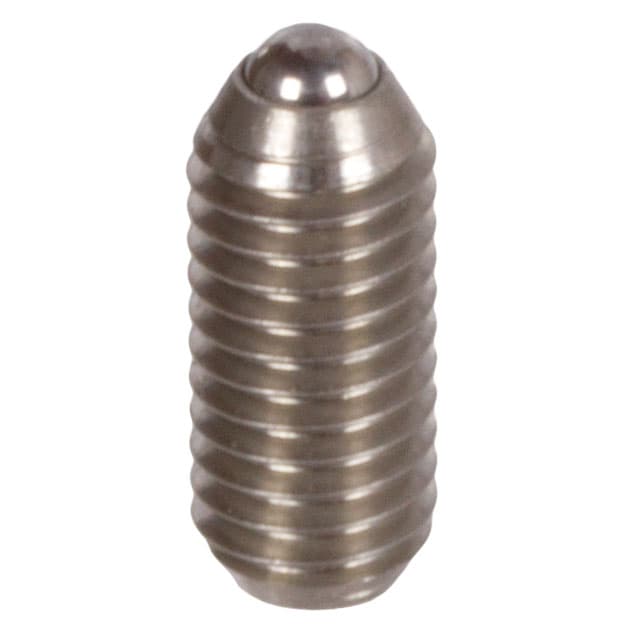

Spring plunger M24 with ball and internal hexagon stainless steel 1.4305
Manufacturer part no. 65499924
$57.33≈ 49.79 €
In stock — 10 unitslead time 14 d
Estimated landed cost
| Item | €49.79 |
|---|---|
| Shipping | €15.00 |
| VAT (20%) | €12.96 |
| Total delivered | €77.75 |
Estimate for a single item delivered to mainland France, shipped from outside the EU: customs duty and clearance fees may apply and are charged by the carrier.
Datasheets & documents

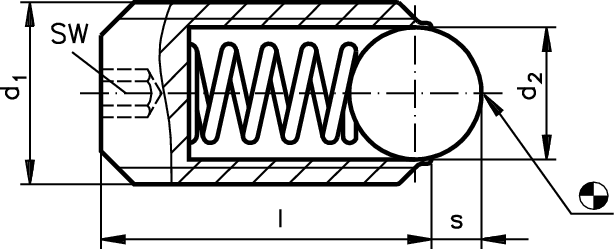

Specifications (automatically extracted)
Mechanical
| Weight | 100 g |
Other characteristics
| Ball diameter | 15 mm |
| Length | 48 mm |
| Overhang of ball | 5.5 mm |
| Spring load end | 151 N |
| Spring load inital | 81 N |
| Wrench size | 12 mm |
| Material | Stainless steel |
| Surface | Blank |
| Thread size | M 24 mm |
Description
Material: Body: Stainless Steel 1.4305 (AISI 303). Ball: Stainless steel, hardened. Spring: Stainless steel, Standard spring tension. Used for fixation or as device to press something in or push it out. Temperature range: -40°C to +250°C. *statistical average
