MÄDLERMÄDLER· Fastening Elements

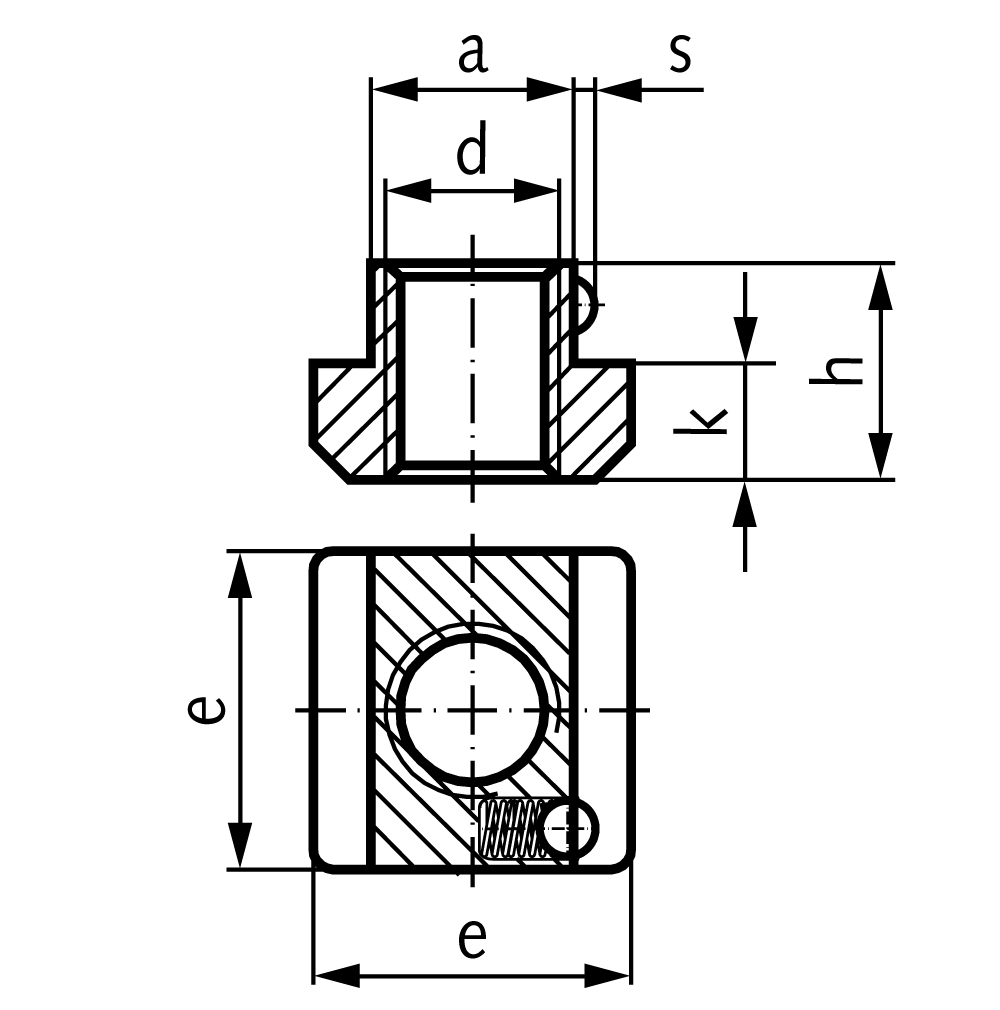

Nut DIN 508 with ball for T-slot 14mm DIN 650 thread M12 quality 10
Manufacturer part no. 65511214K
$8.58≈ 7.45 €
In stock — 5 unitslead time 14 d
Estimated landed cost
| Item | €7.45 |
|---|---|
| Shipping | €15.00 |
| VAT (20%) | €4.49 |
| Total delivered | €26.94 |
Estimate for a single item delivered to mainland France, shipped from outside the EU: customs duty and clearance fees may apply and are charged by the carrier.
Datasheets & documents
Specifications (automatically extracted)
Mechanical
| Weight | 34 g |
Other characteristics
| For t slots din 650 | 14 mm |
| Height | 16 mm |
| Material | Tempered steel (strength class 10) |
| Surface | Black |
| Thread size | M 12 mm |
Description

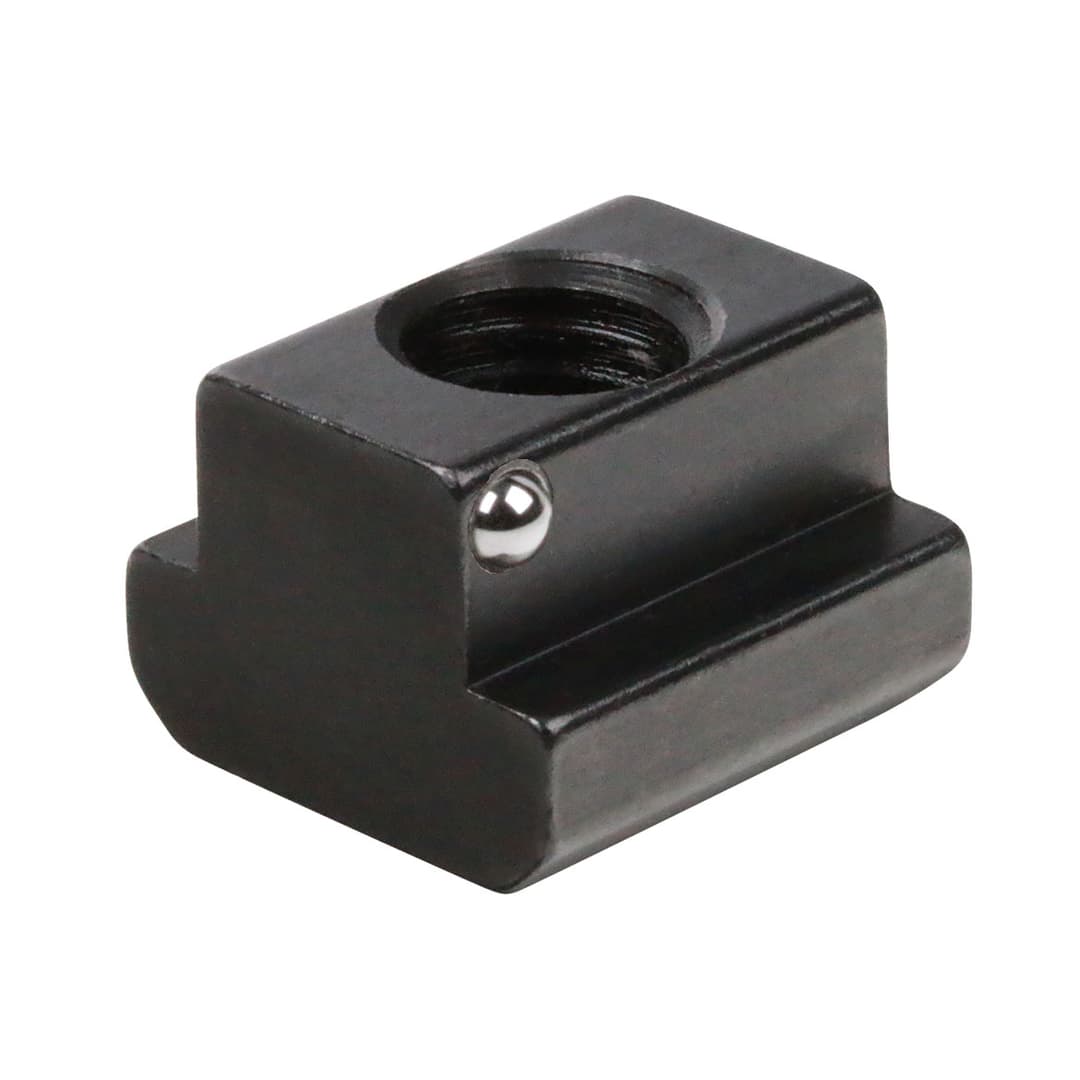

Material: Tempered steel, tensile strength 10, black. T-slot nuts according to the old standard DIN 508, but with spring-loaded ball against unintended moving. The loose nut will be held, even in vertical position. Suitable for T-slots DIN 650 / ISO 299.
