MÄDLERMÄDLER· Fastening Elements

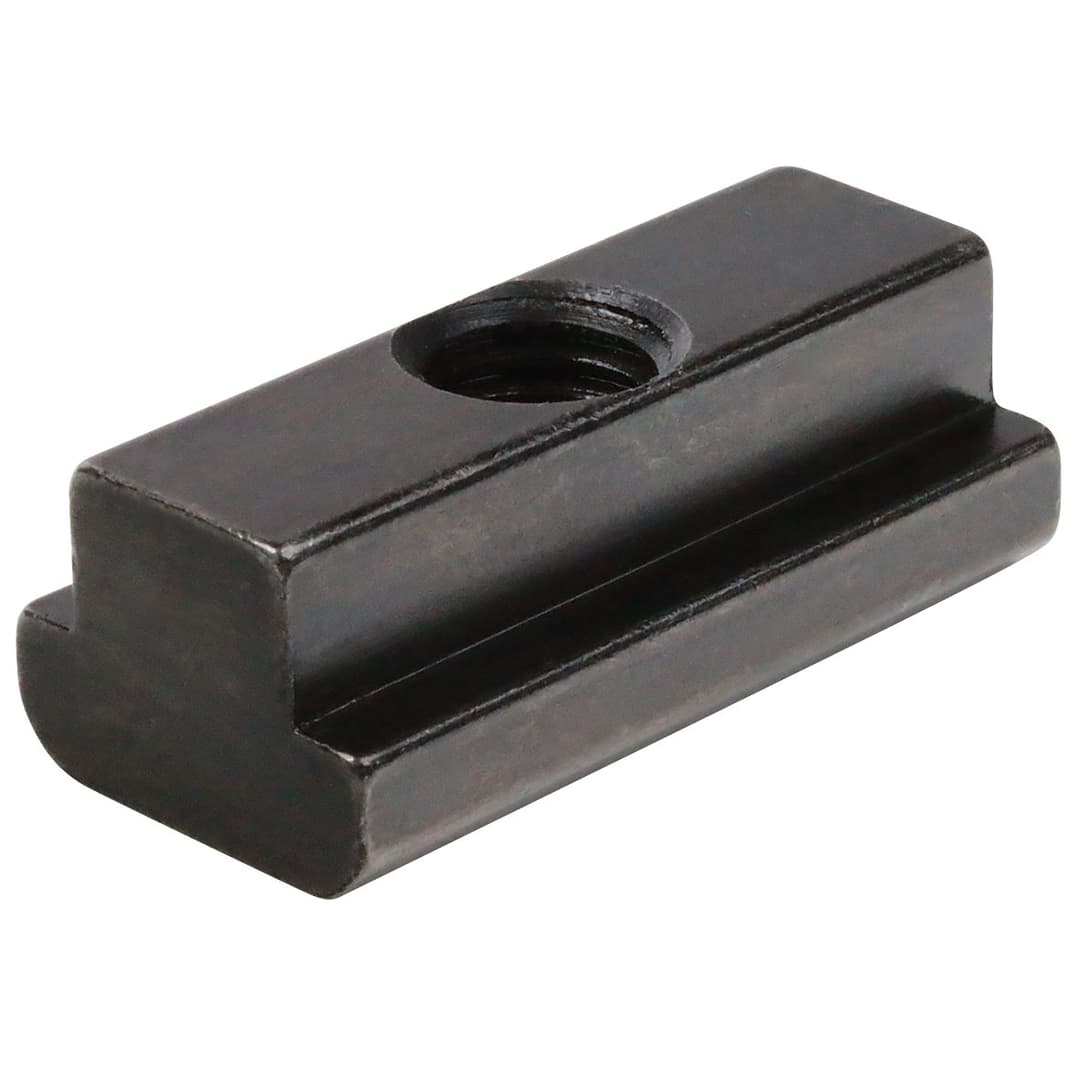

Nut DIN 508 long for T-slot 16mm DIN 650 thread M14 quality 10
Manufacturer part no. 65511416L
$9.28≈ 8.06 €
In stock — 5 unitslead time 14 d
Estimated landed cost
| Item | €8.06 |
|---|---|
| Shipping | €15.00 |
| VAT (20%) | €4.61 |
| Total delivered | €27.67 |
Estimate for a single item delivered to mainland France, shipped from outside the EU: customs duty and clearance fees may apply and are charged by the carrier.
Datasheets & documents
Specifications (automatically extracted)
Mechanical
| Weight | 81 g |
Other characteristics
| For t slots din 650 | 16 mm |
| Height | 18 mm |
| Material | Tempered steel (strength class 10) |
| Surface | Black |
| Thread size | M 14 mm |
Description
Material: Tempered steel, tensile strength 10, black. T-slot nuts according to the old standard DIN 508, but with double length. These nuts can be placed e.g. in the centre of two crossing slots. Suitable for T-slots DIN 650 / ISO 299.
