MÄDLERMÄDLER· Fastening Elements

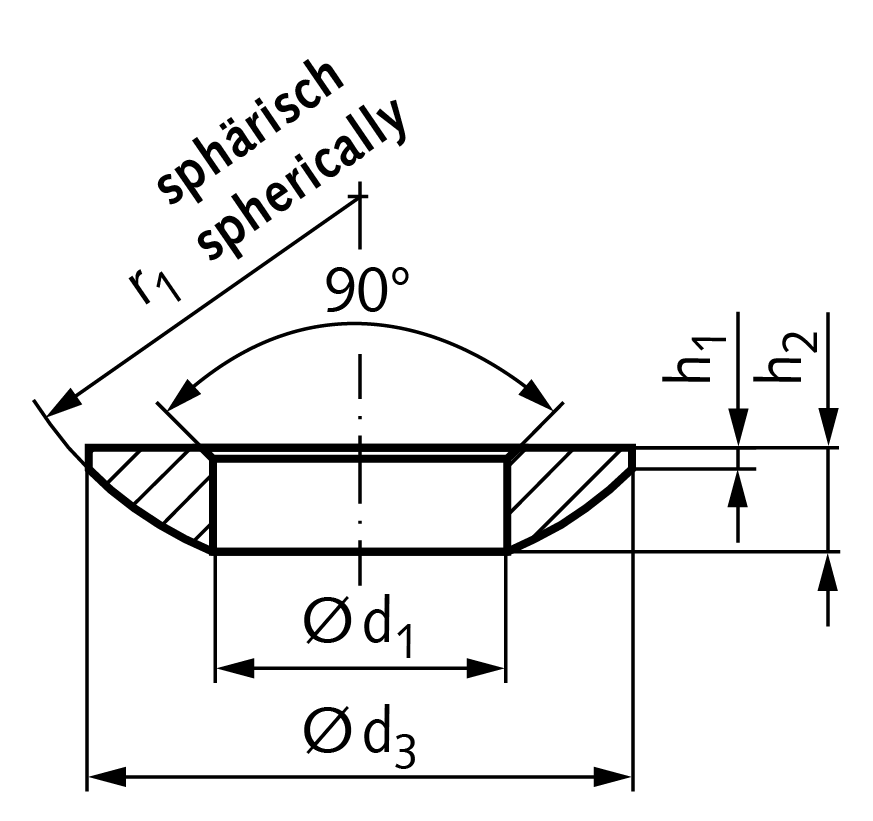

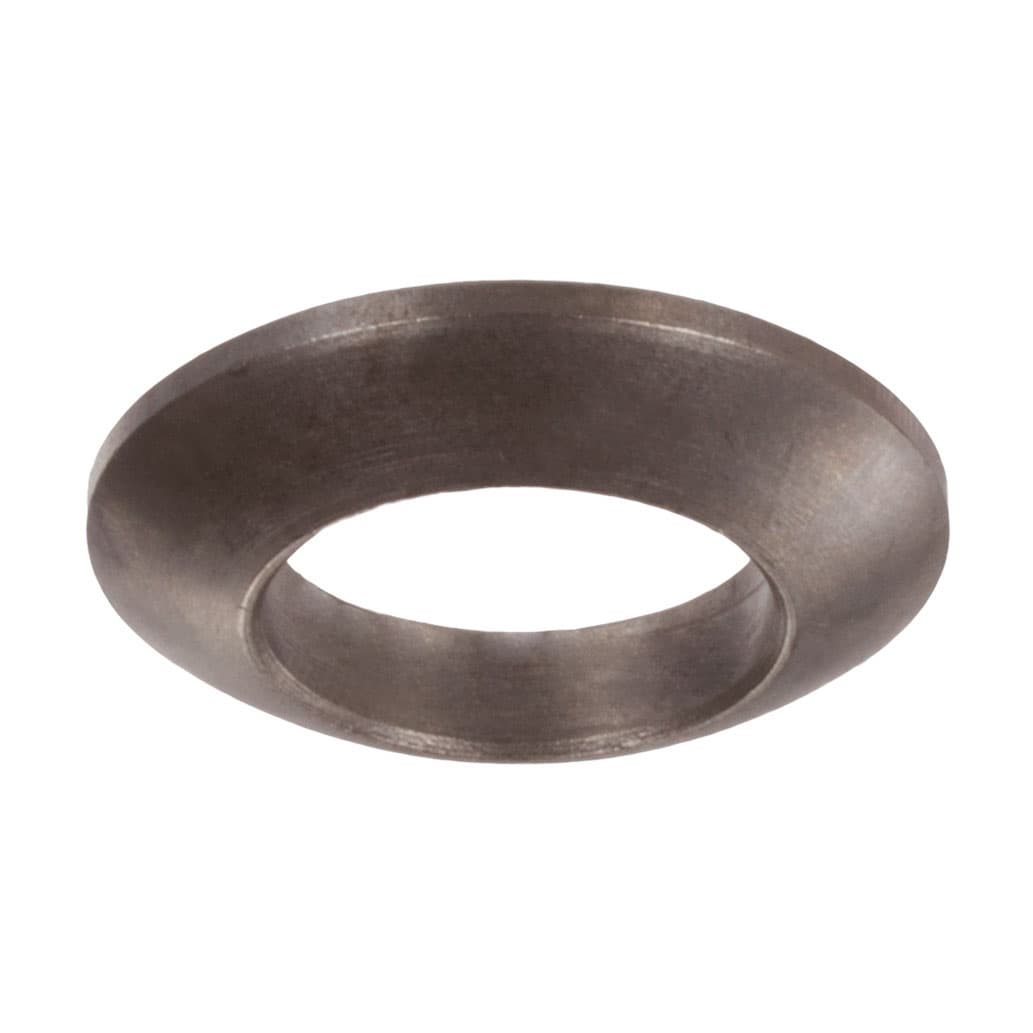

Spherical washer DIN 6319 form C diameter 24mm for bolt diameter 12mm steel hardened
Manufacturer part no. 65541200
$1.91≈ 1.66 €
In stock — 42 unitslead time 14 d
Estimated landed cost
| Item | €1.66 |
|---|---|
| Shipping | €15.00 |
| VAT (20%) | €3.33 |
| Total delivered | €19.99 |
Estimate for a single item delivered to mainland France, shipped from outside the EU: customs duty and clearance fees may apply and are charged by the carrier.
Datasheets & documents
Specifications (automatically extracted)
Mechanical
| Weight | 7.1 g |
Other characteristics
| For bolt diameter | 12 mm |
| Height | 4.6 mm |
| Inner diameter | 13 mm |
| Optional concial seat type d partno | 65 551 200 |
| Optional concial seat type g partno | 65 561 200 |
| Outer diameter | 24 mm |
| Static load | 38 kN |
| Total height together with spherical washer | 8 mm |
| Material | Steel |
| Surface | Blank |
Description
Material: Steel, bright, turned, case hardened, hardening depth min. 0.2 mm. Spherical washers DIN 6319 type C are mostly used with conical seats DIN 6319 type D, for screw fittings at non-parallel faces. Conical seats DIN 6319 type G, with larger outside diameter and height, should be used at relatively big holes or slot holes. * Total height, together with spherical washer. ** Max. statical load.
